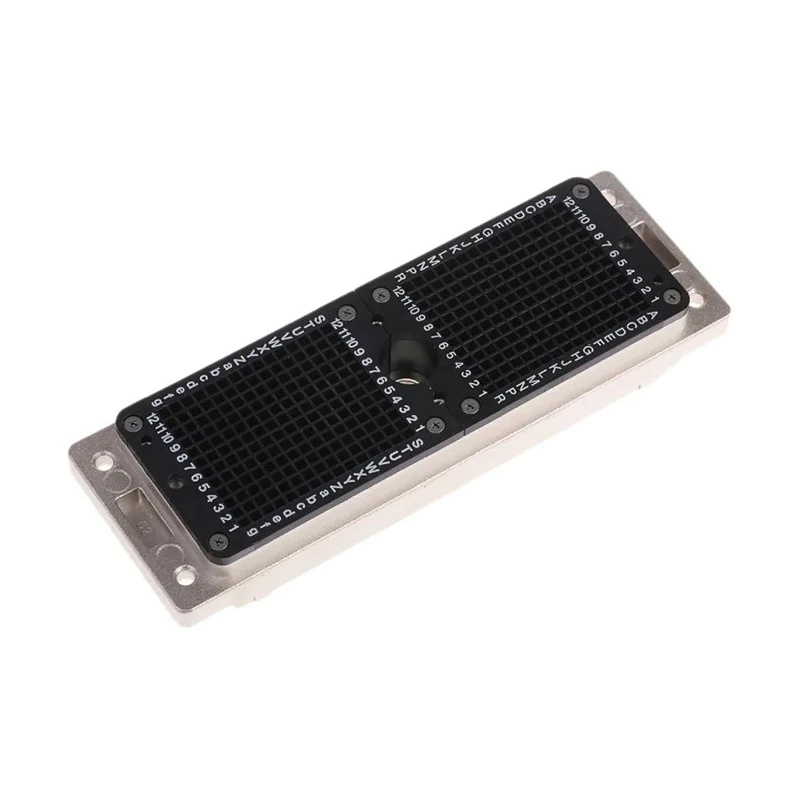

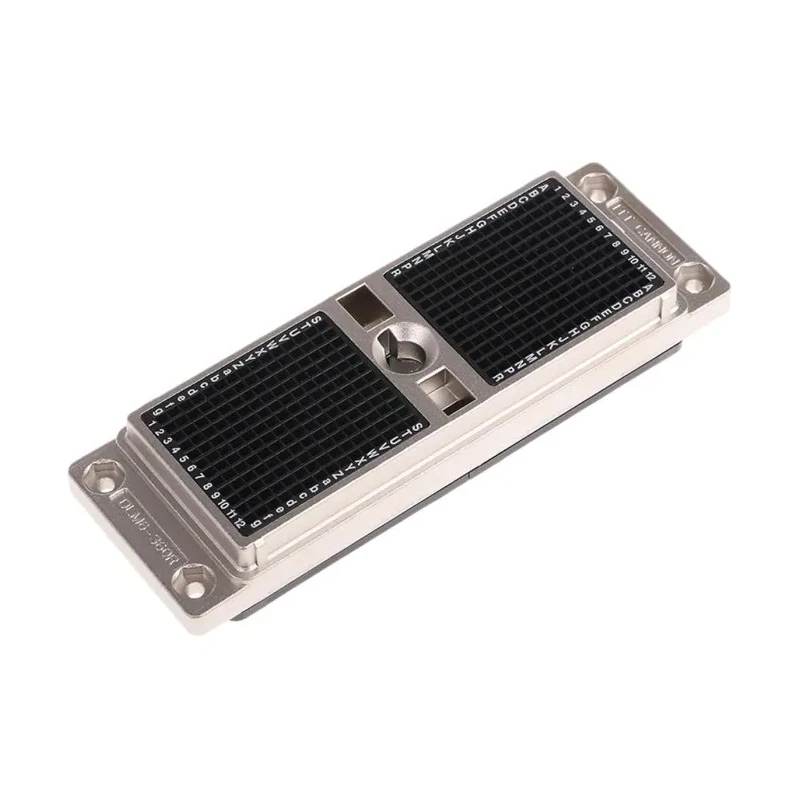

ITT Cannon DLM ZIF Socket Body Straight Female 2 Column 20 Row 360 Way 1.2kV AC 5A 127050-0045

ITT Cannon 127050-0045 DLM ZIF Socket Body is a high-density backplane connector designed for demanding industrial and electronic applications. Featuring a straight female orientation with 2 columns and 20 rows, this connector provides 360 reliable contact points with a current rating of 5A and voltage rating up to 1.2kV AC.

The connector housing is constructed from rugged aluminium alloy, nickel plated for enhanced durability and corrosion resistance. Contacts fabricated from beryllium copper alloy with gold plating provide superior conductivity and protection against oxidation, ensuring consistent electrical performance.

This socket body incorporates a Zero Insertion Force (ZIF) mechanism, actuated by a cam for smooth and effortless mating cycles which can exceed 10,000 insertions, making it ideal for test and diagnostic equipment. The metal shell ensures excellent electromagnetic interference (EMI) and radio frequency interference (RFI) shielding, crucial for maintaining signal integrity in complex electronic systems.

Designed for panel mount applications, it uses crimp termination providing secure and reliable cable connections. Operating temperature ranges from -55°C to a maximum of 105°C, supporting use in harsh environments.

The DLM series connectors by ITT Cannon support uniform mating pressure with a shield locking mechanism, enhancing mechanical stability and electrical shielding. This product is widely employed in medical devices, broadcast systems, avionics, instrumentation, and computing applications where high-density and reliable connections are essential.

Constructed using nickel-plated aluminium alloy for superior robustness and EMI shielding. Gold-plated beryllium copper contacts for longevity and low contact resistance. ZIF cam-actuated mechanism reduces insertion force preserving contact integrity.

Panel mount type with crimp termination for strong mechanical and electrical connection. Suitable for extreme temperatures from -55°C to 105°C. Compatible across the DLM range of metal and plastic connector bodies. Provides 360 contact points arranged in 2 columns and 20 rows.

Rated for 5A current and 1.2kV AC voltage operations. Ideal for electronic test, instrumentation, medical, broadcast, and avionics industries.
