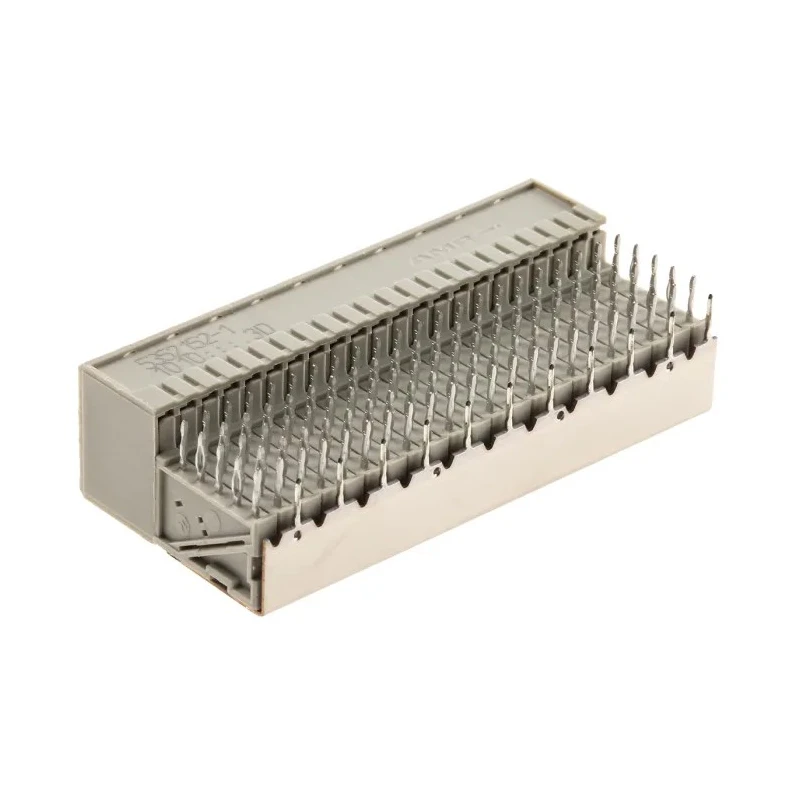

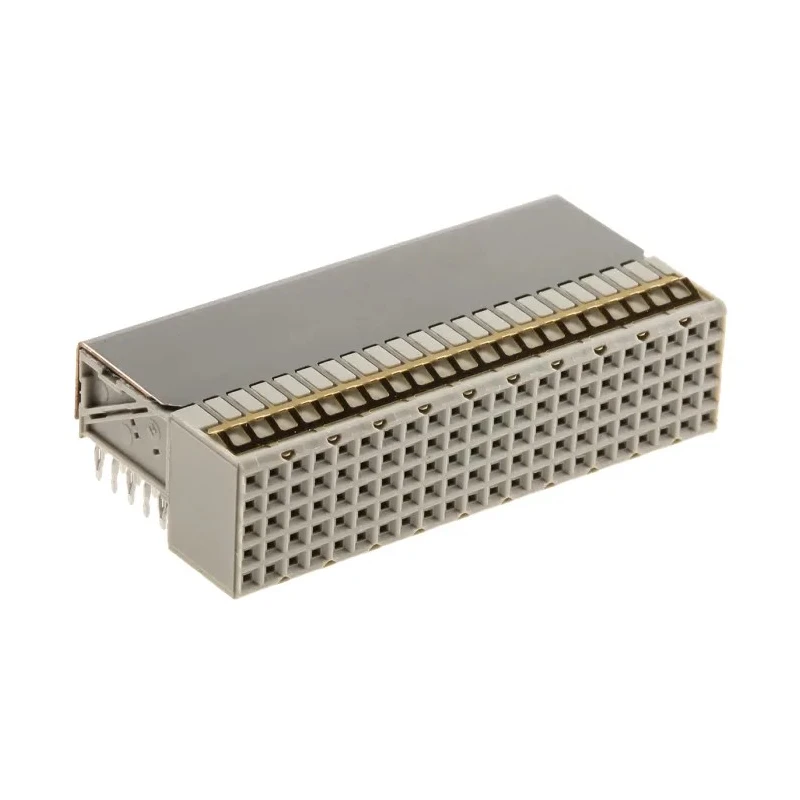

TE Connectivity Z-PACK HM 2 mm Pitch Hard Metric Backplane Connector Right Angle Female 22 Column 5 Row 110 Way 5352152-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V ac |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1.5A |
| Mount Type | Through Hole |
| Housing Material | Polyethylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | Z-PACK HM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 5 |
| Number of columns | 22 |
| Pitch | 2mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 110 |
| Contact Gender | Female |
| Connector Gender | Female |
| Backplane Connector Type | Hard Metric |
Key Features
- Features a 2 mm pitch design suitable for compact PCI systems.
- Constructed with polyethylene terephthalate housing for durability.
- Phosphor bronze contacts plated with gold over nickel for reliable conductivity.
- Supports through-hole mounting with solder termination to ensure secure attachment.
- Operates at up to 500V AC voltage and 1.5A current rating.
- Designed to function between -55°C to 125°C operating temperatures.
- Right angle orientation facilitates efficient board stacking and signal routing.
- Series Z-PACK HM connector provides high performance and hot-swap capability.
Product Description
TE Connectivity 5352152-1 is a Z-PACK HM series hard metric backplane connector designed for compact PCI systems requiring reliable and high-density connections. This right angle female connector features 22 columns and 5 rows for a total of 110 contact points, enabling efficient data transmission in demanding environments.
The connector housing is made from polyethylene terephthalate, offering robust mechanical and thermal resistance. Contacts are constructed from phosphor bronze and plated with gold over nickel to ensure superior electrical conductivity and corrosion resistance. The connector supports through-hole mounting and solder termination type for secure and lasting PCB attachment.
Electrical ratings include a voltage capacity of up to 500V AC and current rating of 1.5A, suitable for a range of industrial electronic applications. It operates reliably in temperature ranges from -55°C up to 125°C, accommodating harsh environmental conditions.
The Z-PACK HM interconnection system also offers hot-swap capability, enhancing real-time application performance and system uptime. Its 2 mm pitch and compact design make it ideal for dense PCB layouts, particularly in backplane and rack connector scenarios.
2 mm pitch for compact PCI compatibility. Durable housing material polyethylene terephthalate. Gold over nickel plated phosphor bronze contacts. Through-hole mounting with solder termination. Electrical rating of 500V AC and 1.5A current.
Temperature range suitability from -55°C to 125°C. Right angle female connector orientation. Z-PACK HM series for hot-swap applications. High contact count of 110 for dense connections. Reliable and performance focused backplane connector.
This connector is widely used in industrial, manufacturing, electronic assembly, and power connector applications where reliable high-density backplane interfaces are crucial. The product is new with no additional safety certifications declared. Explore a range of TE Connectivity connectors at EnvMart for compatible and high-quality electronic components.
Explore more products in our Backplane Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TE Connectivity Z-PACK HM backplane connector has a voltage rating of up to 500V AC.
This connector supports a current rating of 1.5A.
It features a 2 mm pitch design with 22 columns and 5 rows, totaling 110 contacts.
It supports through-hole mounting with solder termination for secure attachment.
The housing is made from polyethylene terephthalate, and the contacts are phosphor bronze plated with gold over nickel.
It operates reliably in temperatures ranging from -55°C to 125°C.
This model features a right angle orientation, which facilitates efficient board stacking and signal routing.
Yes, the Z-PACK HM series connector is designed to provide hot-swap capability.
It is widely used in industrial, manufacturing, electronic assembly, and power connector applications requiring reliable high-density backplane interfaces.
This connector has a total of 110 contacts, providing a high contact count for dense connections.
This connector belongs to the Z-PACK HM series, which is designed for compact PCI systems.
The country of origin for this connector is India.
