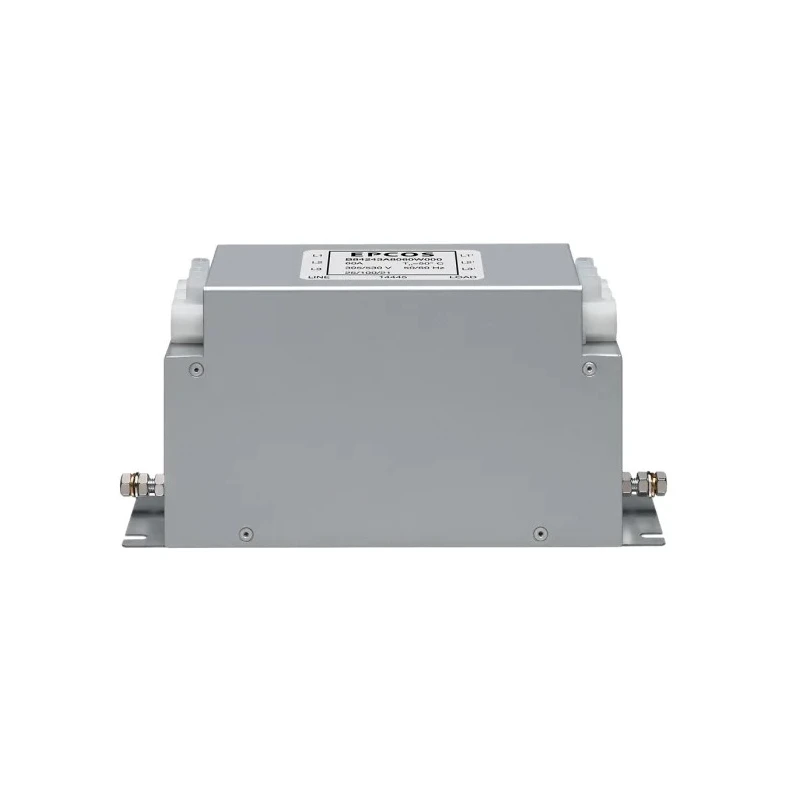

TDK Chassis Mount 3 Phase EMC Filter 8A 530V AC 50Hz/60Hz Terminal Block B84243A8008W000

Free Delivery in India | Lowest Global Shipping Charges

TDK Chassis Mount 3 Phase EMC Filter 8A 530V AC 50Hz/60Hz Terminal Block B84243A8008W000



Category EMC Filter Brand TDK Condition New

Specifications

Country of Origin	China
Brand	TDK
Height	95mm
Length	190mm
Model	B84243A8008W000
Depth	40mm
Mount Type	Chassis Mount
Operating Frequency	50, 60Hz
Series	B84243A
Maximum Operating Temperature	100°C
Number Of Stages	1
Resistance	14mΩ
Minimum Operating Temperature	-25°C
Maximum Current	8A
Number of Phases	3
Leakage Current	4.8mA
Maximum Voltage	530V ac
Standards/Approvals	UL 1283
Termination Style	Terminal Block

Key Features

Rated for a maximum current of 8 amperes AC.
Supports an operating voltage up to 530 volts AC.
Operates efficiently at frequencies of 50Hz and 60Hz.
Constructed with a metal case for durability and electromagnetic compatibility.
Features terminal block termination style for secure connections.
Designed with one filter stage to reduce electromagnetic interference.
Operational temperature range from -25°C to 100°C ensures reliability.
Low leakage current of 4.8 milliamperes minimizes energy loss.

Product Description

TDK B84243A8008W000 chassis mount EMC filter is engineered for industrial and electronic applications requiring reliable electromagnetic interference suppression in three-phase power line environments. It provides a maximum current rating of 8 amperes and is suitable for operating voltages up to 530 volts AC, functioning efficiently across standard 50Hz and 60Hz power frequencies.

The filter is housed in a robust metal case designed for chassis mounting, enhancing electromagnetic compatibility and mechanical protection. It connects via terminal block terminations which offer secure, finger-safe wiring for ease of installation and maintenance.

This single-stage filter delivers low leakage current of only 4.8 milliamperes, thereby reducing unwanted power consumption while ensuring effective noise reduction. The product withstands harsh operating conditions with a temperature range from -25°C to 100°C, making it suitable for demanding environments such as textile machinery, packaging machines, and power supply units.

Resistance is maintained at 14 milliohms, ensuring minimal power loss and heat generation during operation. The filter complies with UL 1283 certification, underscoring safety, quality, and industry standards adherence.

Physical dimensions support versatile installations, with a length of 190 mm, height of 95 mm, and depth of 40 mm, making it compact for integration into various electrical assemblies.

Rated maximum current: 8A AC. Maximum operating voltage: 530V AC. Operating frequency: 50Hz, 60Hz. Chassis mount metal enclosure. Terminal block connection method. Single stage filter construction. Operating temperature range: -25°C to 100°C.

Leakage current: 4.8 mA. Resistance: 14 mΩ. UL 1283 approved. Compact dimensions: 190 x 95 x 40 mm.

This EMC filter is ideal for industrial, manufacturing, laboratory, power supply, and HVAC applications where electromagnetic noise suppression is critical for equipment performance and compliance. TDK’s B84243A8008W000 ensures enhanced system reliability and longevity by minimizing interference and electrical disturbances.
