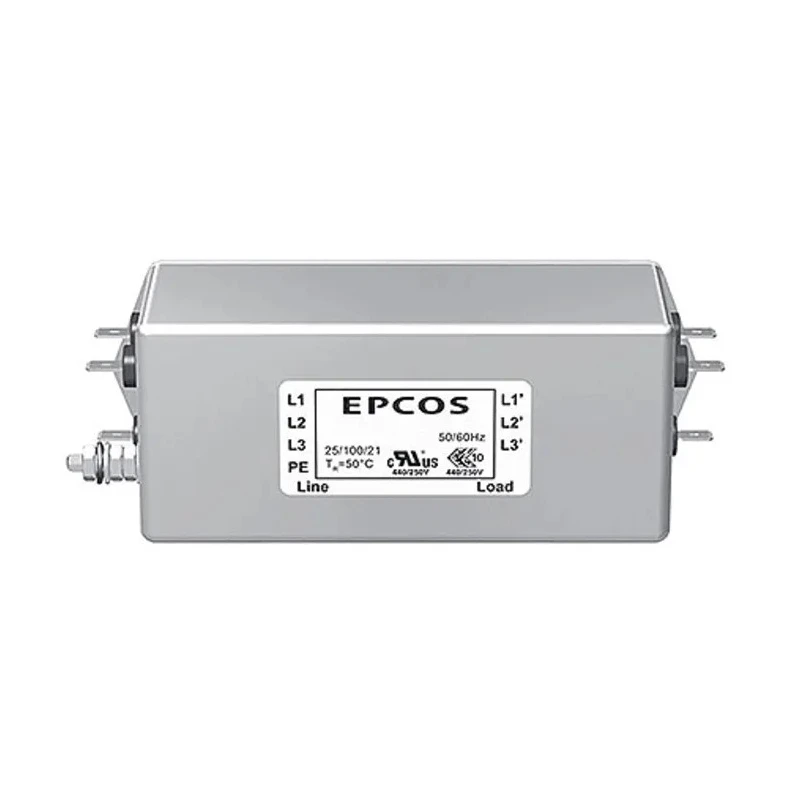

TDK Chassis Mount 3 Phase EMC Filter 20 A 520V AC 50Hz/60Hz Terminal Block B84143A0020A166

TDK B84143A0020A166 chassis mount 3 phase EMC filter provides highly efficient electromagnetic interference suppression for industrial power systems. Rated for 20 A maximum current and 520V AC voltage, it operates effectively at both 50Hz and 60Hz frequencies, meeting the needs of various global electrical standards.

This EMC filter features a terminal block termination style and is specifically designed for chassis mounting. The device incorporates a single stage filter optimized for long motor cables operating under full load, providing excellent insertion loss performance while maintaining a low leakage current of 3.1 mA.

The filter's robust construction allows operation in temperatures ranging from -25°C to 100°C, suitable for demanding industrial and commercial applications. Its compact size, with a length of 133mm, depth of 58mm, and height of 53mm, facilitates easy integration into equipment racks and chassis systems.

Certified to UL 1283 and CSA 22.2 No. 8 1996, the filter ensures adherence to critical safety and EMC regulations. Typical applications include frequency converters used in motor drives such as those found in lifts, pumps, traction systems, conveyor lines, air conditioning systems, and wind-driven power stations.

Manufactured in China, this EMC filter series B84143A*166 by TDK is a reliable component for improving power quality and reducing electromagnetic interference in three-phase electrical systems.

Optimized for usage with long motor cables under full load conditions. Features a very high insertion loss for superior EMC performance. Low leakage current rated at 3.1 mA ensuring minimal power loss. Designed to operate between -25°C and 100°C temperature range.

Complies with UL 1283 and CSA 22.2 No. 8 1996 standards. Compact dimensions of 133mm length, 58mm depth, and 53mm height. Ideal for frequency converters used in motor drives such as lifts, pumps, conveyor systems, and air conditioning units.

Constructed for reliable operation in industrial environments including traction systems and wind power plants. Explore more EMC Filters and power line filter solutions from TDK at EnvMart for industrial and commercial applications.
