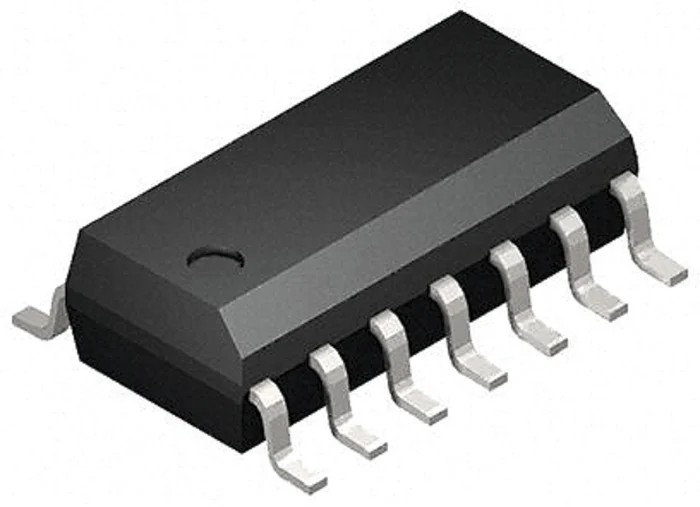

Toshiba CMOS Inverter 6 Elements, 14-Pin SOIC, Logic Family 74HC 74HC04D

Free Delivery in India | Lowest Global Shipping Charges

Toshiba CMOS Inverter 6 Elements, 14-Pin SOIC, Logic Family 74HC 74HC04D

Name: Toshiba CMOS Inverter 6 Elements, 14-Pin SOIC, Logic Family 74HC 74HC04D
Brand: Toshiba
SKU: 95792
Price: 0.3 USD
Availability: InStock



Category Logic ICs Brand Toshiba Condition New

Specifications

Country of Origin	India
Brand	Toshiba
Height	1.38mm
Length	8.95mm
Model	74HC04D
Width	3.9mm
Mount Type	Surface
Output type	Buffer
Series	74HC04D
Input Type	CMOS
Maximum Operating Temperature	125°C
Package Type	SOIC
Minimum Operating Temperature	-40°C
Pin Count	14
Number of Elements per Chip	6
Maximum Supply Voltage	6V
Logic Family	74HC
Logic Function	Inverter
Minimum Supply Voltage	2V
Maximum High Level Output Current	-5.2mA
Maximum Propagation Delay Time @ CL	75ns
Maximum Low Level Output Current	5.2mA
Balanced propagation delays	tPLH ≈ tPHL

Key Features

Contains six independent CMOS inverter gates.
Operating voltage range is 2 V to 6 V for flexible applications.
Maximum propagation delay time is 75ns at CL.
Includes protection circuits against static discharge and transient excess voltage.
Supports surface mount technology with the SOIC package type.
Wide operating temperature range from -40°C to 125°C.
Balanced propagation delays ensure stable switching performance.
Utilizes logic family 74HC, achieving high speed similar to LSTTL technology.

Product Description

The Toshiba 74HC04D is a high-performance CMOS inverter integrated circuit featuring six independent inverter gates fabricated using silicon gate C2MOS technology. It is designed for high speed operation comparable to equivalent LSTTL devices while maintaining the advantages of low power dissipation typical of CMOS technology.

This logic IC operates within a wide voltage range of 2.0 to 6.0 V, making it suitable for various electronic systems requiring inverter functions. The internal circuit includes three stages with buffered outputs, delivering high noise immunity and stable output signals.

Each input is protected against static discharge and transient excess voltage, enhancing device reliability in practical applications. The maximum propagation delay time is 75 nanoseconds under load, enabling fast switching performance in digital circuits.

The device is housed in a 14-pin Small Outline Integrated Circuit (SOIC) package designed for surface mounting on printed circuit boards, facilitating efficient assembly in compact electronic products. It supports extended operating temperature ranges from -40°C to 125°C, suitable for industrial and commercial environments.

With balanced propagation delays, a maximum output current of ±5.2 mA, and low static current consumption (maximum 1.0 μA at 25°C), the 74HC04D offers energy-efficient performance. Its compact size with length 8.95 mm, width 3.9 mm, and height 1.38 mm allows integration into small form-factor devices.

Contains six inverter gates with CMOS technology. High speed operation with 75 ns maximum propagation delay. Wide supply voltage range from 2 V to 6 V. Surface mount SOIC package with 14 pins. Wide operating temperature range of -40°C to 125°C.

Buffered output and high noise immunity. Static discharge protection for robust inputs. Compact dimensions suitable for modern electronics. Low power dissipation and balanced switching characteristics. Commonly used in digital logic, control systems, and signal processing.

This Toshiba CMOS inverter 74HC04D is ideal for industrial electronics, manufacturing, and laboratory applications requiring reliable logic inverter circuits. Its robust design supports long-term stable performance under varying environmental conditions.
