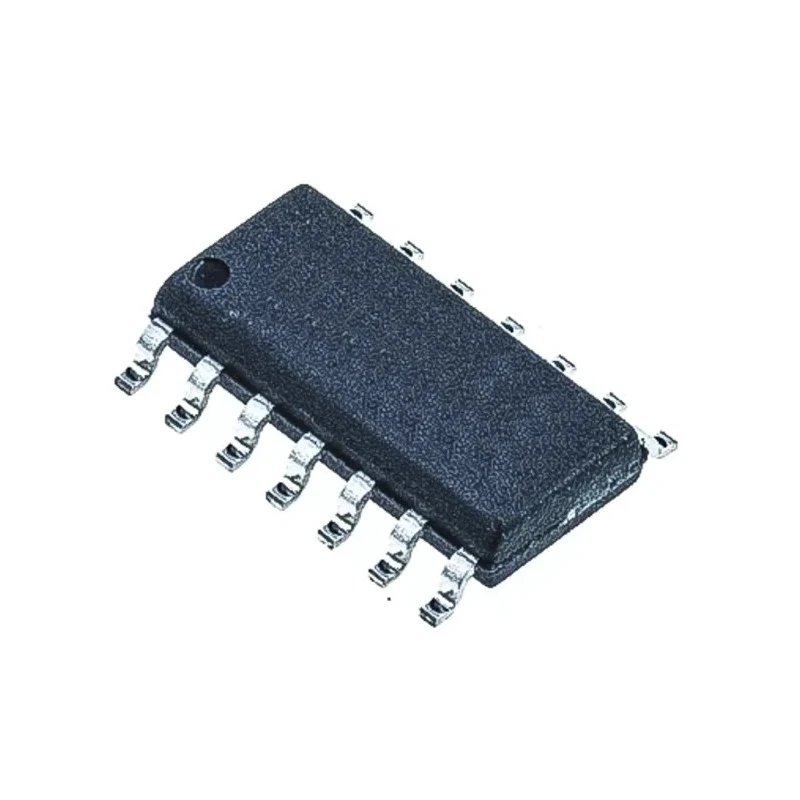

Nexperia 2 Flip-Flop IC 74HC D Type CMOS Logic, 14-Pin SOP Package 74HC74D,653

Name: Nexperia 2 Flip-Flop IC 74HC D Type CMOS Logic, 14-Pin SOP Package 74HC74D,653
Brand: Nexperia
SKU: 95724
Price: 0.16 USD
Availability: InStock



Category Logic ICs Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1.45mm
Length	8.75mm
Model	74HC74D,653
Mount Type	Surface
Compatibility	Input CMOS, Output CMOS
Output type	D Type
Input Type	CMOS
Maximum Operating Temperature	125°C
Package Type	SO
Minimum Operating Temperature	-40°C
Operating Voltage	2 to 6 V
Trigger Type	Positive Edge
Pin Count	14
Number of Elements per Chip	2
Maximum Supply Voltage	6V
Logic Family	74HC
Minimum Supply Voltage	2V
Maximum Propagation Delay Time @ CL	45ns
Clock frequency	24MHz
Flip-Flop Type	D Flip-Flop
onsemi 2 Flip Flop IC 74HC, LSTTL, 14-Pin SOICBrand	onsemi

Key Features

Utilizes silicon gate CMOS technology for high speed and low power consumption.
Operates over a voltage range of 2 to 6 V with a clock frequency of 24 MHz.
Features positive edge-triggered D-type flip-flops with 2 elements per chip.
Comes in a surface mount 14-pin SOP package measuring 8.75 mm length and 1.45 mm height.
Supports operating temperatures from -40°C to 125°C for reliable industrial usage.
Maximum propagation delay is 45 ns at CL conditions, suitable for fast switching circuits.
Compatible with input and output CMOS logic levels.
Designed without automotive or special standards approvals.

Product Description

Nexperia 74HC74D,653 is a widely used 2 flip-flop IC from the 74HC logic family based on advanced silicon gate CMOS technology. This device offers fast operation with low power consumption, making it suitable for various industrial, laboratory, and electronic manufacturing applications requiring reliable digital storage elements.

The device integrates two positive edge-triggered D-type flip-flops configured in a 14-pin SOP surface mount package for efficient PCB assembly. It operates within a supply voltage range of 2 V to 6 V and supports clock frequency up to 24 MHz.

The 74HC74D,653 flip-flop IC is robust enough for harsh environments with operating temperatures from -40°C up to 125°C and ensures minimal propagation delays of 45 ns under specified load conditions, enhancing processing speed in digital circuits.

This product is compatible with input and output CMOS logic levels, making it flexible and easy to integrate into standard CMOS and TTL logic circuits. While it does not hold automotive certifications, it is suited for a broad range of electronics including industrial automation, embedded systems, and telecommunications equipment.

High-Speed Silicon Gate CMOS logic technology. Two D-type flip-flops in a single 14-pin SOP package. Wide operating voltage range from 2 V to 6 V. Positive edge-triggered flip-flops for precise timing control. Operation temperature range from -40°C to 125°C.

Maximum propagation delay time of 45 ns suitable for high-speed switching. Surface mount device for compact PCB design. Compatible with CMOS input/output logic levels. Ideal for applications in industrial, laboratory, electronic devices manufacturing, and telecommunications.

The package includes one unit of Nexperia 74HC74D,653 2 Flip-Flop IC in 14-pin SOP format. For engineers and developers working on digital circuit designs, this IC provides reliable and efficient performance with the backing of Nexperia’s quality assurance.
