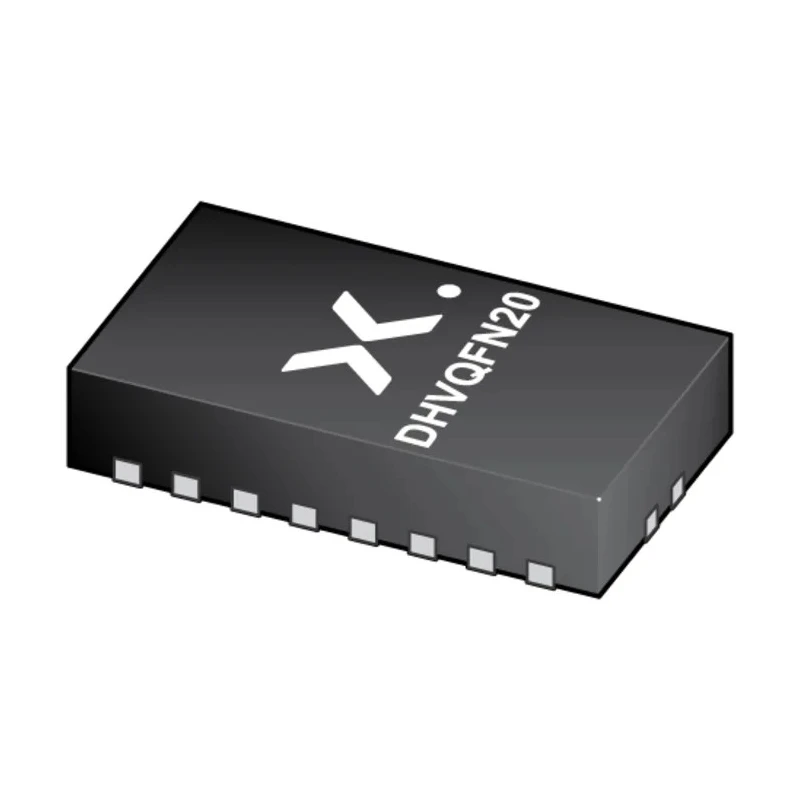

Nexperia 18-Bit Non-Inverting CMOS TTL Bus Transceiver 20-Pin DHVQFN 1.2V-3.6V 8ns Propagation Delay 74LVC245ABQ,115
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.95mm |
| Length | 4.6mm |
| Model | 74LVC245ABQ,115 |
| Mount Type | Surface |
| Output type | 3 State |
| Series | 74LVC |
| Maximum Operating Temperature | 125°C |
| Package Type | DHVQFN |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting |
| Number Of Channels | 18 |
| Pin Count | 20 |
| Maximum Supply Voltage | 3.6V |
| Logic Family | 74LVC |
| Logic Function | Bus Transceiver |
| Minimum Supply Voltage | 1.2V |
| Maximum High Level Output Current | -24mA |
| Maximum Propagation Delay Time @ CL | 8ns |
| Maximum Low Level Output Current | 24mA |
| Output Level | CMOS, TTL |
| Input Level | CMOS |
Key Features
- Supports a wide supply voltage range from 1.2 V to 3.6 V.
- Features low power CMOS technology for energy efficiency.
- Provides non-inverting 3-state bus-compatible outputs with direction control.
- Has a maximum propagation delay time of 8ns at capacitive load.
- Supports input levels compatible with CMOS and TTL logic.
- Offers operation in temperature range from -40°C to 125°C.
- Includes output enable and direction control pins for flexible bus operations.
- Uses an ultra-thin 0.95mm by 4.6mm 20-pin DHVQFN surface-mount package.
Product Description
The Nexperia 74LVC245ABQ,115 is an advanced 18-bit bus transceiver utilizing non-inverting CMOS and TTL logic in a compact 20-pin DHVQFN package. This device supports a voltage supply range between 1.2V and 3.6V, making it suitable for a broad range of low-voltage digital applications. Its maximum propagation delay time of 8 nanoseconds at capacitive load allows for high-speed data transfers, ideal for electronic designs requiring fast bus communication.
Featuring three-state bus-compatible outputs controlled by an output enable (OE) input, the device effectively isolates bus lines when needed. The direction (DIR) input controls send/receive data flow, allowing easy cascading of multiple ICs in a system. Inputs are compatible with both CMOS and TTL logic levels, and the outputs can handle up to ±24mA current, supporting robust interfacing with various logic devices.
The device's 20-pin DHVQFN surface-mount package offers a slim height of 0.95mm and length of 4.6mm, fitting modern compact circuit board layouts. It operates over a wide temperature range from -40°C to +125°C, ensuring reliability in industrial and automotive environments. The transceiver inputs and outputs are 6V tolerant, enabling direct interfacing to 5V logic without damage.
This transceiver is optimized for industrial, automotive, telecommunications, and embedded systems applications where efficient and fast bus communication is required. It helps designers implement bidirectional data lines while maintaining signal integrity and low power consumption.
Supports wide supply voltage (1.2V to 3.6V) for flexibility. Non-inverting 3-state outputs provide bus isolation and control. Compatible with 3.3V and 5V devices with 6V tolerant I/O. Compact 20-pin DHVQFN package fits small board areas.
Wide operating temperature range ensures reliability in harsh environments. Low power CMOS technology minimizes energy consumption. High output drive current supports demanding loads. Ideal for industrial, automotive, and embedded system bus interfaces.
Set includes a single Nexperia 74LVC245ABQ,115 bus transceiver device in 20-pin DHVQFN package. Explore more semiconductor and logic IC products from Nexperia at EnvMart for your electronics manufacturing and prototyping needs.
Explore more products in our Logic ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a supply voltage range from 1.2V to 3.6V, making it suitable for various low-voltage digital applications.
The maximum propagation delay time is 8 nanoseconds at capacitive load, allowing for high-speed data transfers.
It provides non-inverting 3-state bus-compatible outputs, which can effectively isolate bus lines when necessary.
The operating temperature range is from -40°C to +125°C, ensuring reliability in various environments.
This bus transceiver features 18 channels, facilitating bidirectional data communication.
It comes in a 20-pin DHVQFN surface-mount package, which is compact and suitable for modern circuit board layouts.
The inputs are compatible with CMOS logic levels, while the outputs can handle both CMOS and TTL logic levels.
The maximum output current is ±24mA, supporting robust interfacing with various logic devices.
Yes, it includes a direction control (DIR) input that manages the send/receive data flow.
The package has a height of 0.95mm and a length of 4.6mm, making it suitable for compact designs.
Yes, the inputs and outputs are 6V tolerant, allowing direct interfacing with 5V logic without damage.
It is optimized for industrial, automotive, telecommunications, and embedded systems applications requiring efficient bus communication.
