Nexperia Low-Voltage CMOS Schmitt Trigger Input Inverter 2 Elements, 6-Pin TSOP Package 74LVC2G17GV,125

Free Delivery in India | Lowest Global Shipping Charges

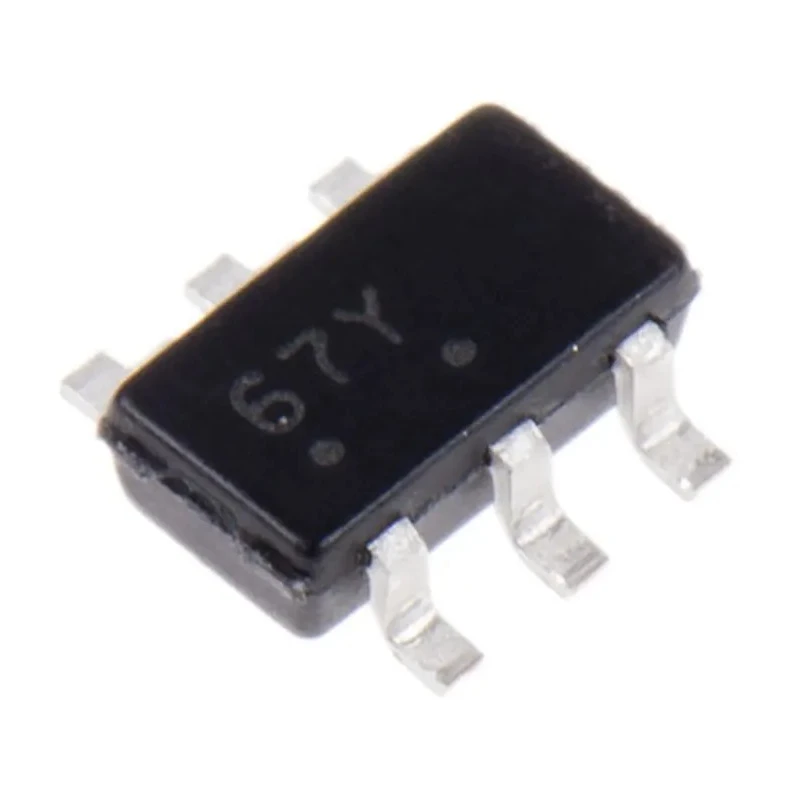

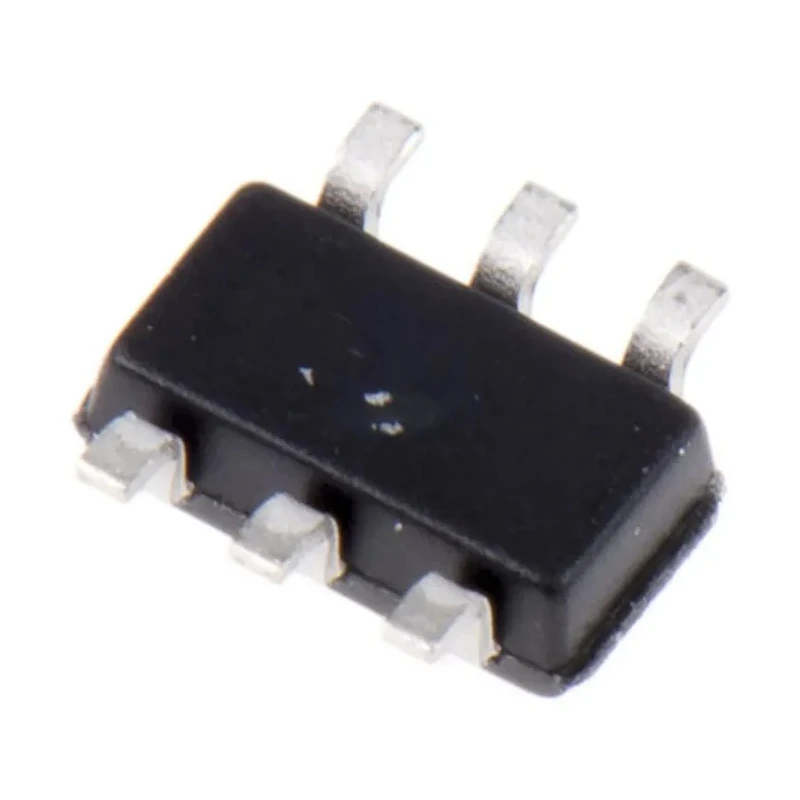

Nexperia Low-Voltage CMOS Schmitt Trigger Input Inverter 2 Elements, 6-Pin TSOP Package 74LVC2G17GV,125

Name: Nexperia Low-Voltage CMOS Schmitt Trigger Input Inverter 2 Elements, 6-Pin TSOP Package 74LVC2G17GV,125
Brand: Nexperia
SKU: 94095
Price: 0.13 USD
Availability: InStock



Category Logic ICs Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1mm
Length	3.1mm
Model	74LVC2G17GV,125
Width	1.7mm
Mount Type	Surface
Compatibility	Input LVTTL/TTL, Output LVCMOS
Output type	Single Ended
Series	74LVC2G17
Input Type	Schmitt Trigger
Maximum Operating Temperature	125°C
Package Type	TSOP
Minimum Operating Temperature	-40°C
Operating Voltage	1.65 to 5.5 V
Pin Count	6
Number of Elements per Chip	2
Maximum Supply Voltage	5.5V
Logic Family	74LVC
Logic Function	Inverter
Minimum Supply Voltage	1.65V
Maximum High Level Output Current	-32mA
Maximum Propagation Delay Time @ CL	8.5ns
Maximum Low Level Output Current	32mA

Key Features

This device integrates two inverters with Schmitt trigger input functionality per chip.
Operates over a wide voltage range from 1.65 V to 5.5 V for versatile application.
Maximum propagation delay time at CL is 8.5 nanoseconds ensuring fast signal switching.
Surface mount package with a pin count of 6 allows space-saving circuit designs.
Operating temperature range spans from -40°C to 125°C supporting industrial environments.
Compatible with input LVTTL/TTL logic levels and output LVCMOS, ideal for mixed logic systems.
Maximum high-level output current of -32 mA and low-level output current of 32 mA ensure robust output drive capabilities.
Compact device dimensions of 3.1 mm length, 1.7 mm width, and 1 mm height facilitate integration into dense PCBs.

Product Description

Nexperia brand 74LVC2G17GV,125 model is a low-voltage CMOS Schmitt Trigger input inverter provided in a compact 6-pin TSOP package. It features two inverter elements per chip and offers efficient digital signal inverting with Schmitt trigger inputs to improve noise immunity and signal stability.

This inverter IC supports operating voltages between 1.65 to 5.5 V and works well with LVTTL and TTL input signals, outputting LVCMOS levels. Its propagation delay is a rapid 8.5 ns at specified load capacitance, making it suitable for high-speed logic circuits.

The device’s surface mount package saves board space and simplifies assembly in modern electronics manufacturing. It operates reliably in industrial temperature ranges from -40°C to 125°C and has maximum output currents of ±32 mA, supporting a variety of load conditions.

With dimensions of 3.1 mm in length, 1.7 mm in width, and 1 mm in height, it is ideal for compact PCB layouts in telecommunications, computing, consumer electronics, and automation systems.

Two inverter elements with Schmitt trigger inputs per chip enable noise-immune logic buffering. Wide operating voltage range from 1.65 V to 5.5 V enhances design flexibility. Small surface mount TSOP package supports miniaturized designs.

Fast switching speed with 8.5 ns maximum propagation delay improves overall circuit performance. Industrial-grade temperature rating ensures dependable operation in harsh environments. Compatible with LVTTL/TTL inputs and provides LVCMOS outputs for mixed signal applications.

Pin count of 6 streamlines interface connections. Compact form factor reduces PCB real estate consumption.

This Nexperia logic IC is widely applicable across industrial, commercial, communication, and computing applications requiring reliable inverting and noise-resistant logic signals. Explore more semiconductor and logic IC options in the Electronics & Electricals category on EnvMart.

Explore more products in our Logic ICs category.
