Nexperia 1.24 V 300 mW Single Zener Diode Surface Mount 2-Pin SOD-323 BZX384-B24,115

Free Delivery in India | Lowest Global Shipping Charges

Nexperia 1.24 V 300 mW Single Zener Diode Surface Mount 2-Pin SOD-323 BZX384-B24,115

Name: Nexperia 1.24 V 300 mW Single Zener Diode Surface Mount 2-Pin SOD-323 BZX384-B24,115
Brand: Nexperia
SKU: 94970
Price: 0.04 USD
Availability: InStock



Category Zener Diodes Brand Nexperia Condition New

Specifications

Country of Origin	China
Brand	Nexperia
Height	1.1mm
Length	2.7mm
Model	BZX384-B24,115
Mount Type	Surface
Series	BZX384
Maximum Operating Temperature	150°C
Working voltage range	nominal 2.4 to 75 V (E24 range)
Package Type	SOD-323
Minimum Operating Temperature	-65°C
Pin Count	2
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	300mW
Diode Configuration	Single
Test Current It	5mA
Maximum Reverse Leakage Current	50nA
Nominal Zener Voltage Vz	24V
Zener Type	Voltage Regulator
Maximum Zener Impedance	70Ω
Typical Voltage Temperature Coefficient	20.4mV/K
Total power dissipation	max. 300 mW
Non-repetitive Peak reverse power dissipation	max. 40 W
Two tolerance series	+-2pct and approx. +-5pct

Key Features

Offers stable voltage regulation in electronic circuits.
Encapsulated in a compact SOD-323 plastic surface-mount package.
Features a 2% tolerance for voltage precision.
Operates over a wide temperature range from -65°C to 150°C.
Maximum zener impedance of 70 Ohms ensures low noise operation.
Maximum reverse leakage current is as low as 50 nA.
AEC-Q101 qualified for automotive applications.
Typical voltage temperature coefficient is 20.4 mV/K for reliable performance.

Product Description

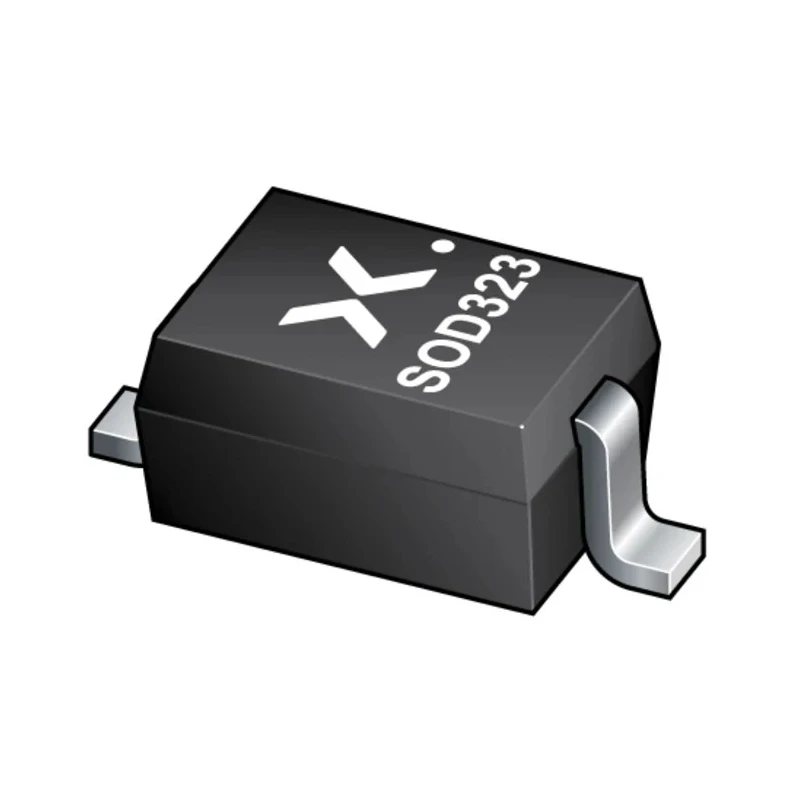

Nexperia BZX384-B24,115 is a single Zener diode designed as a voltage regulator in a small surface mount SOD-323 (SC-76) package. It provides reliable voltage regulation with a nominal zener voltage of 24 V and a maximum power dissipation rating of 300 mW. The diode features a 2% tolerance ensuring accurate voltage control in sensitive electronic and automotive circuits.

This Zener diode operates efficiently with a test current of 5 mA and maintains a maximum zener impedance of 70 Ohms, which contributes to noise reduction. It has a minimal reverse leakage current of 50 nA, making it highly effective in low power regulation tasks.

The device supports a broad operating temperature range from -65°C up to 150°C, while its typical voltage temperature coefficient of 20.4 mV/K ensures consistent performance under varying thermal conditions. It complies with the AEC-Q101 automotive standard, confirming suitability for automotive and industrial use cases.

This BZX384 series diode is suitable for industrial electronics, automotive systems, power supply voltage regulation, and various manufacturing applications where precise voltage stabilization is critical. Its compact and surface-mount design allows for easy installation on printed circuit boards (PCBs) and efficient use of space.

Offers stable voltage regulation in electronic circuits. Encapsulated in a compact SOD-323 surface-mount package. Maintains a 2% nominal voltage tolerance for precision. Wide operating temperature range from -65°C to 150°C supports diverse applications.

Low noise operation due to 70 Ohm maximum zener impedance. Extremely low reverse leakage current ensures efficiency. Automotive grade with AEC-Q101 certification. Reliable voltage temperature coefficient enhances stability.

Maximum power dissipation of 300 mW for low-power applications. Nominal working voltages span from 2.4 V to 75 V in the E24 range.

This product is ideal for engineers and technicians who require efficient voltage regulation in compact, surface mount packages, suitable for automotive, industrial electronics, and manufacturing sectors. Explore more such semiconductor components in the Electronics & Electricals category at EnvMart.
