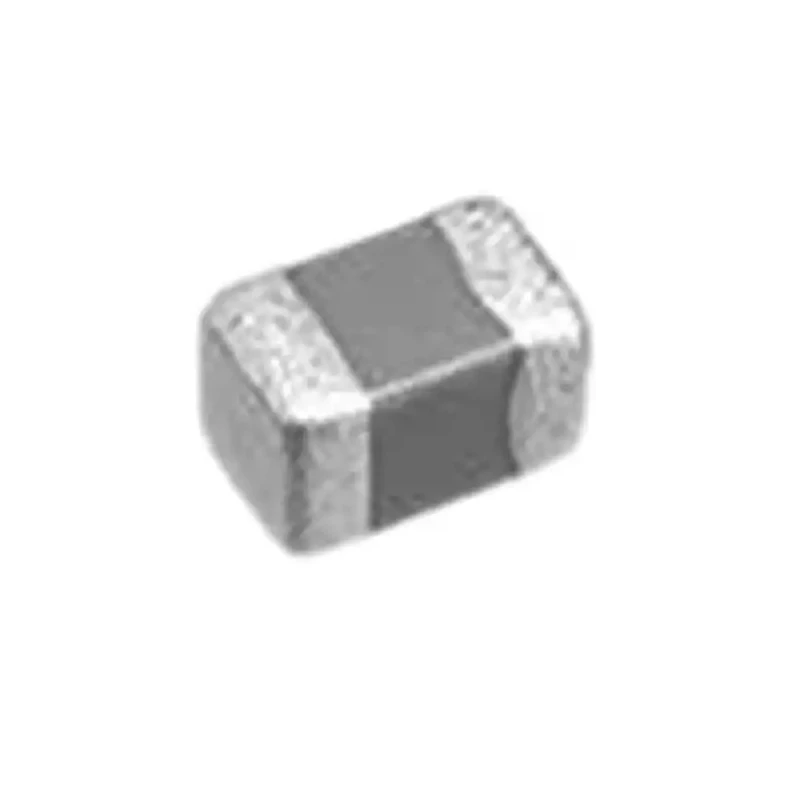

TDK 100 nF Multilayer Ceramic Capacitor 100V dc ±10 % X7R Dielectric Surface Mount 0805 CGA4J2X7R2A104K125AA

Free Delivery in India | Lowest Global Shipping Charges

TDK 100 nF Multilayer Ceramic Capacitor 100V dc ±10 % X7R Dielectric Surface Mount 0805 CGA4J2X7R2A104K125AA



Category Multilayer Ceramic Capacitor Brand TDK Condition New

Specifications

Country of Origin	Japan
Voltage	100V dc
Brand	TDK
Height	1.25mm
Length	2mm
Model	CGA4J2X7R2A104K125AA
Packaging	Tape & Reel
Width	1.25mm
Mount Type	Surface
Series	CGA
Termination Type	Solder
Maximum Operating Temperature	125°C
Tolerance	±10 %
Capacitance	100nF
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS
Package/Case	0805
Dielectric	X7R
Automotive Standard	AEC-Q200
Suppression Class	Class II

Key Features

Constructed with X7R dielectric material for stable performance under varying temperatures.
Features AEC-Q200 automotive qualification ensuring suitability for automotive electronic applications.
Compact 0805 package size with dimensions 2 mm length, 1.25 mm width, and 1.25 mm height.
Equipped with solder termination and supplied in tape and reel packaging for automated assembly.
Operates reliably between -55°C and 125°C temperature range.
Low Equivalent Series Resistance (ESR) and low Equivalent Series Inductance (ESL) for enhanced frequency characteristics.
Compliant with RoHS standards, ensuring environmentally safe manufacturing.
Ideal for applications including automotive battery line smoothing, sensor modules, and engine control units.

Product Description

TDK CGA4J2X7R2A104K125AA is a 100 nF multilayer ceramic capacitor designed for surface mounting, rated at 100V dc with ±10 % tolerance, utilizing X7R dielectric for enhanced temperature stability.

Manufactured with precision technology, this capacitor features multiple thin ceramic dielectric layers, providing high capacitance and reliability. Its compact 0805 package measures 2 mm in length, 1.25 mm in width, and 1.25 mm in height, facilitating efficient PCB layout.

The capacitor has excellent heat resistance, mechanical strength, and superior reliability due to a mature manufacturing process. It is equipped with solder termination and supplied in tape and reel packaging, optimized for high accuracy automatic mounting.

These capacitors are AEC-Q200 qualified, making them suitable for critical automotive applications such as battery line smoothing, sensor modules, engine control units, anti-lock brake systems, and infotainment systems. They are also applicable in smart meters, smart grids, solar inverters, AC-DC battery chargers, transportation, and agriculture sectors.

Further, the capacitor exhibits low ESR and low ESL, which contributes to low self-heating and improved ripple resistance. Compliance with RoHS standards affirms its environmental safety and quality assurance.

Constructed with X7R dielectric material for stable temperature performance. Qualified to automotive AEC-Q200 standard for reliability. Compact 0805 surface mount package for versatile applications. Wide operating temperature range from -55°C to 125°C.

Low ESR and ESL for excellent frequency response. RoHS compliant, ensuring environmentally friendly manufacturing. Suitable for automotive, industrial, and commercial electronic applications. Packaging optimized for automated assembly using tape and reel.

Explore the full range of TDK Multilayer Ceramic Capacitors at EnvMart for your electronic component needs.
