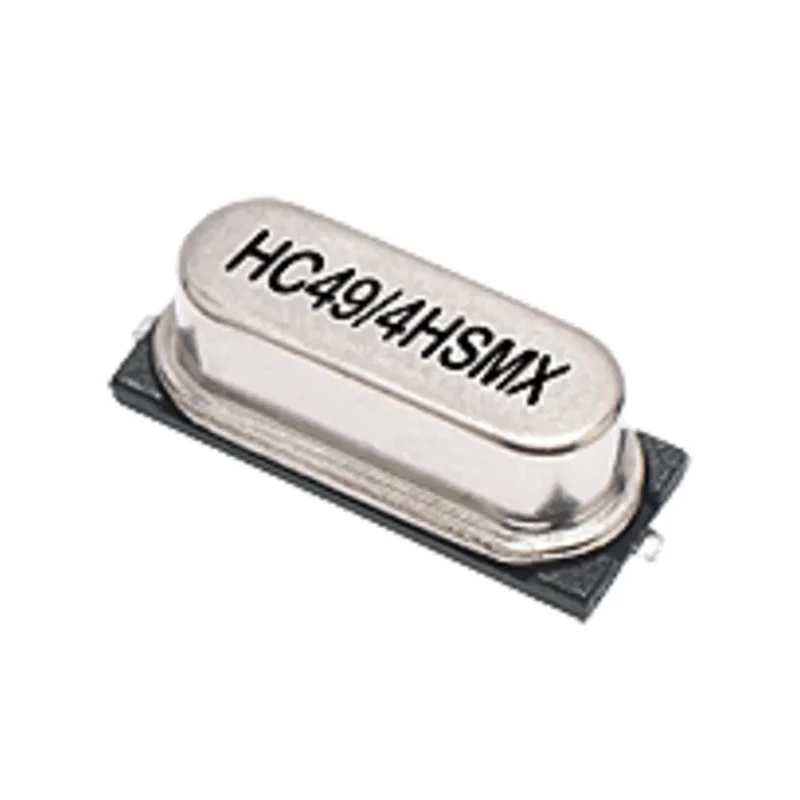

IQD 4.9152 MHz ±30 ppm Surface Mount 2-Pin Crystal Unit 4.3 mm Height 11.4 mm Length LFXTAL018153
Specifications
| Country of Origin | India |
|---|---|
| Brand | IQD |
| Height | 4.3mm |
| Length | 11.4mm |
| Model | LFXTAL018153 |
| Width | 4.9mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 60°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -10°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Standard Frequency | 4.9152MHz |
| Load Capacitance | 16pF |
| Series Resistance | 130Ω |
Key Features
- Industry standard SMD crystal unit for surface mount applications.
- Hermetically sealed with resistance welded glass to metal seals.
- Compact dimensions of 11.4 mm length, 4.9 mm width, and 4.3 mm height.
- Operating temperature range from -10°C to 60°C suitable for industrial use.
- Series resistance of 130 Ω optimized for stable oscillation.
- Standard load capacitance of 16 pF configured for typical circuits.
- RoHS compliant ensuring environmental and safety standards.
- Plastic former with gull wing mount lead wires for ease of PCB assembly.
Product Description
IQD LFXTAL018153 is a 4.9152 MHz crystal unit designed for use in surface mount electronic applications. This 2-pin device features a compact form factor with dimensions measuring 11.4 mm in length, 4.9 mm in width, and 4.3 mm in height. It is constructed using industry-standard SMD technology offering reliable frequency control with ±30 ppm frequency tolerance and ±50 ppm frequency stability.
The crystal is hermetically sealed with resistance welded glass to metal seals in an inert atmosphere, ensuring durability and longevity in various industrial and electronic environments. The lead wires are mounted on a plastic former with a gull wing configuration to facilitate automated surface mount PCB assembly processes.
Operational performance includes a frequency load capacitance of 16 pF and series resistance of 130 Ω, making it suitable for precision oscillator circuits requiring stable frequency reference. The product supports a temperature range from -10°C minimum to a maximum operating temperature of 60°C, making it adaptable to many industrial electronics and communication applications.
This crystal unit conforms to RoHS environmental standards, ensuring compliance with regulatory requirements for hazardous substances. It is ideal for use in electronics manufacturing, industrial instrumentation, communication equipment, and other precision timing applications requiring a stable frequency source.
Industry standard SMD crystal for surface mount applications. Hermetically sealed to ensure protection against environmental factors. Compact dimensions suitable for space-constrained PCB designs. ±30 ppm frequency tolerance with ±50 ppm stability over operating temperature range.
Lead wires on plastic former for gull wing mounting on PCB. Load capacitance is set at 16 pF, optimal for oscillator circuit designs. Series resistance of 130 Ω for enhanced signal stability. Operating temperature range from -10°C to 60°C.
RoHS compliant for environmental safety. Explore more electronic components and Crystal Units in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 4.9152 MHz.
This model has dimensions of 11.4 mm in length, 4.9 mm in width, and 4.3 mm in height.
The operating temperature range for this unit is from -10°C to 60°C.
The load capacitance of this crystal unit is 16 pF.
The series resistance of this model is 130 Ω.
It features gull wing mount lead wires for ease of PCB assembly.
Yes, this crystal unit is RoHS compliant, ensuring it meets environmental and safety standards.
This unit uses a surface mount package type.
The pin count for this model is 2.
It is suitable for use in electronics manufacturing, industrial instrumentation, and communication equipment.
It is hermetically sealed with resistance welded glass to metal seals, providing protection against environmental factors.
The country of origin for this model is India.
