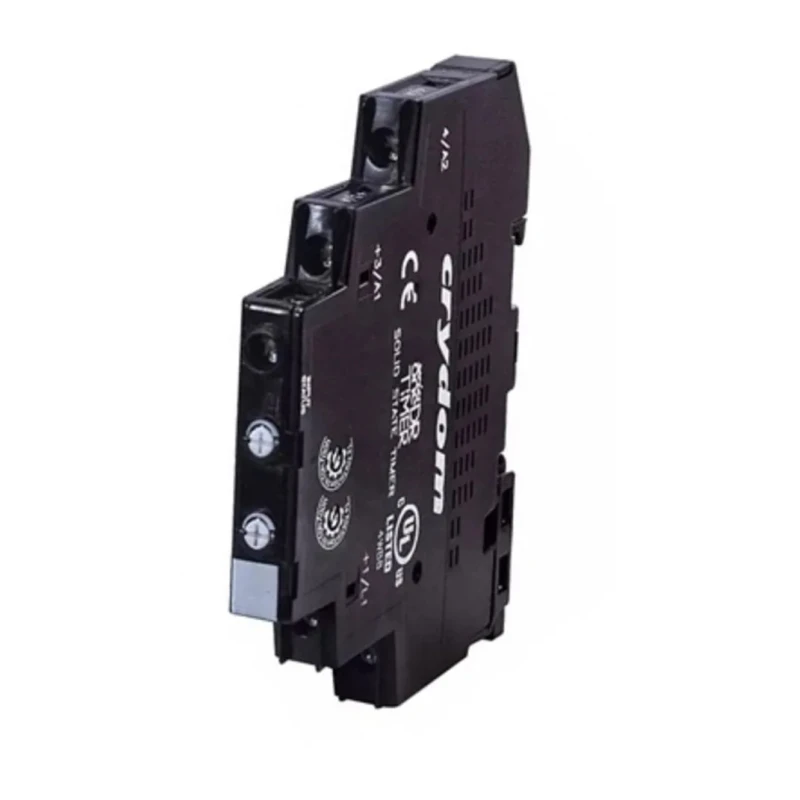

Crydom OneDR Series DIN Rail Timer Relay 2-Contact 180 to 240 V ac/dc 0.1 s to 100 h Repeat Cycle DRTL24A06

Free Delivery in India | Lowest Global Shipping Charges

Crydom OneDR Series DIN Rail Timer Relay 2-Contact 180 to 240 V ac/dc 0.1 s to 100 h Repeat Cycle DRTL24A06

Name: Crydom OneDR Series DIN Rail Timer Relay 2-Contact 180 to 240 V ac/dc 0.1 s to 100 h Repeat Cycle DRTL24A06
Brand: Crydom
SKU: 94622
Price: 116.87 USD
Availability: InStock



Category Timer Relay Brand Crydom Condition New

Specifications

Country of Origin	India
Brand	Crydom
Height	83mm
Function	Multifunction
Length	87.7mm
Model	DRTL24A06
Mode	Repeat Cycle
Width	11mm
Mount Type	DIN Rail
Series	OneDR
Maximum Operating Temperature	80°C
Contact Configuration	SPST
Minimum Operating Temperature	-30°C
Time Range	0.1 s to 100 h
Terminal type	Screw
Standards/Approvals	RoHS
Number of Contacts	2
Number of Timer Functions	1
Contact Current	6A
Supply DC Voltage	180 to 240 V ac/dc
Supply AC Voltage	180, 240V ac

Key Features

Designed for DIN rail mounting with a compact width of 11 mm.
Operates over a supply voltage range of 180 to 240 V ac/dc.
Single pole single throw (SPST) contact configuration rated for 6 A.
Capable of repeated cycle mode operation with an operating temperature between -30°C and 80°C.
Equipped with screw terminal type for secure wiring connections.
Features an LED status indicator and IP20 housing with integrated heat sink design.
RoHS compliant solid-state timer suitable for industrial automation applications.

Product Description

Crydom DRTL24A06 OneDR Series DIN Rail Timer Relay is a high-quality solid-state relay designed for precise time delay control in industrial and automation systems. It supports multifunction timing with a wide time range from 0.1 seconds up to 100 hours, allowing versatile application in process control, electrical panels, and machinery automation.

Designed for DIN rail mounting, this relay features a compact form factor with dimensions of 87.7 mm length, 83 mm height, and a slim width of 11 mm, facilitating efficient use of panel space. The device operates under supply voltages ranging from 180 to 240 V AC or DC, providing flexibility for various power environments.

The relay includes two contacts configured as SPST rated at 6 A, suitable for controlling loads requiring moderate current levels. It is engineered to function reliably in harsh environmental conditions, supporting an operating temperature range from -30°C to 80°C. The repeat cycle mode enhances control in cyclic timer applications.

The unit is equipped with screw-type terminals for secure and easy wiring installation. Its IP20 rated enclosure includes an integrated heat sink to ensure thermal management during extended operation. An LED status indicator provides immediate visual feedback on the relay status for maintenance and troubleshooting purposes.

This Crydom OneDR timer relay is RoHS compliant, ensuring environmental safety and adherence to regulatory requirements. It finds application in industrial automation, manufacturing processes, HVAC systems, and power distribution control setups.

Designed for DIN rail mounting with compact 11 mm width. Supports multifunction timing with 0.1 s to 100 h range. 6 A SPST contact rating with screw terminals. Wide supply voltage range of 180 to 240 V AC/DC. Operating temperature from -30°C to 80°C with repeat cycle mode.

IP20 housing with integrated heat sink and LED indicator. RoHS compliant solid-state relay for industrial applications. Explore more Crydom Timer Relay solutions and other electrical automation components at EnvMart for reliable industrial system integration.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model supports a multifunction timing range from 0.1 seconds to 100 hours, allowing for versatile applications in various industrial settings.

The relay has a compact design with dimensions of 87.7 mm in length, 83 mm in height, and 11 mm in width, making it suitable for DIN rail mounting.

It features a single pole single throw (SPST) contact configuration rated for 6 A, suitable for controlling moderate current loads.

The timer relay operates over a supply voltage range of 180 to 240 V AC or DC, providing flexibility for various power environments.

This unit is designed to function reliably within an operating temperature range of -30°C to 80°C, making it suitable for harsh environments.

The Crydom OneDR Series timer relay is designed for DIN rail mounting, allowing for efficient use of panel space in electrical installations.

It is equipped with screw-type terminals, ensuring secure and easy wiring connections during installation.

Yes, it features an LED status indicator that provides immediate visual feedback on the relay's operational status, aiding in maintenance and troubleshooting.

Yes, it is RoHS compliant, ensuring it meets environmental safety and regulatory requirements.

This timer relay is suitable for applications in industrial automation, manufacturing processes, HVAC systems, and power distribution control setups.

The device includes two contacts configured as SPST, allowing for effective control in various applications.

It supports a repeat cycle mode, enhancing control in cyclic timer applications for improved process management.
