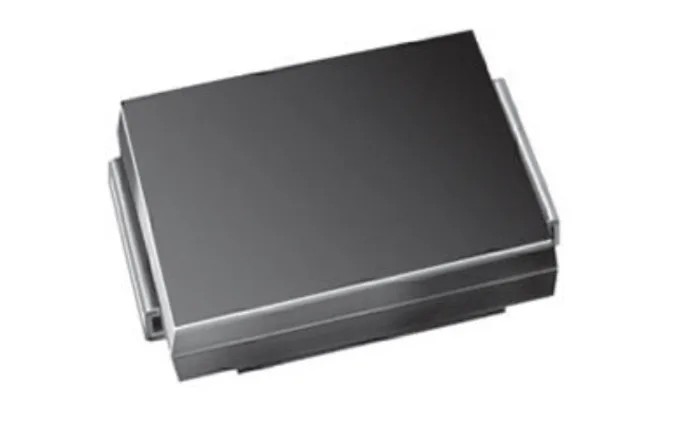

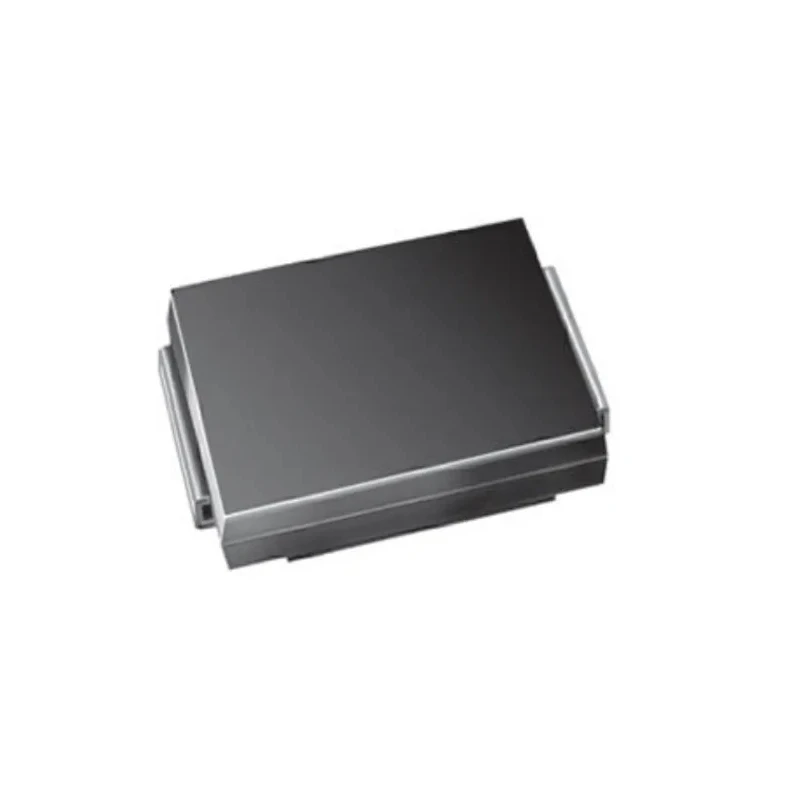

Vishay Bi-Directional TVS Diode 3 kW DO-214AB SMC3K28CAHM3_A/H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 6.22mm |
| Length | 7.11mm |
| Model | SMC3K28CAHM3_A/H |
| Width | 2.62mm |
| Mount Type | Surface |
| Series | SMC3K |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AB (SMC) |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Clamping Voltage VC | 45.4V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 31.1V |
| Maximum Reverse Stand-off Voltage Vwm | 28V |
| Peak Pulse Power Dissipation Pppm | 3kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 66.1A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Bi-directional transient voltage suppressor, ideal for preventing voltage spikes.
- Peak pulse power dissipation up to 3 kW enhances surge protection.
- Surface-mount DO-214AB (SMC) package enables compact integration.
- Breakdown voltage of 31.1 V, reverse stand-off voltage of 28 V, clamping voltage of 45.4 V.
- Fast response time and low incremental surge resistance for critical circuits.
- Rated for automotive standards (AEC-Q101) with RoHS compliance.
- Wide operating temperature range from -55°C to 150°C.
- Maximum peak pulse current of 66.1 A ensures high durability.
Product Description
Vishay SMC3K28CAHM3_A/H is a bi-directional TVS diode designed for advanced protection of sensitive electronic circuits. With a 3 kW peak pulse power capability, this surface-mount device is engineered to prevent damage caused by voltage transients induced by events like load switching and lightning.
Featuring a DO-214AB (SMC) package, this TVS diode offers versatile compatibility with automated assembly processes and is suitable for integration into circuit boards of consumer, industrial, automotive, computer, and telecommunication systems.
The diode supports a minimum breakdown voltage of 31.1 V, a maximum reverse stand-off voltage of 28 V, and a clamping voltage of 45.4 V. Its bi-directional configuration makes it ideal for protecting bidirectional signal lines. It delivers fast response times, low incremental surge resistance, and can handle a maximum peak pulse current of 66.1 A.
Compliance with AEC-Q101 automotive standards and RoHS certification ensures reliability and suitability for demanding environments. It operates across a wide temperature range of -55°C to 150°C and features a low maximum reverse leakage current of 1 µA.
Bi-directional functionality for complete circuit protection against voltage transients. 3 kW peak pulse power dissipation for enhanced surge resistance. Surface-mount package simplifies installation and integration into dense assemblies.
Automotive-grade reliability and RoHS compliance for robust industrial solutions. Fast recovery and response characteristics minimize circuit disruption. Suitable for applications including consumer electronics, automotive sensor units, industrial controls, and telecommunication equipment.
Precise voltage regulation across load switching and signal lines. Engineered for use in environments requiring high thermal stability and long operational life.
This Vishay TVS diode enables efficient protection of integrated circuits and MOSFETs against surges, safeguarding performance in industrial, laboratory, telecommunication, and automotive settings. Explore more Vishay TVS Diodes and similar electronic protection solutions across the EnvMart semiconductor category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of this model is 3 kW, which enhances its surge protection capabilities.
The minimum breakdown voltage of this diode is 31.1 V.
The maximum reverse stand-off voltage is 28 V.
The clamping voltage for this model is 45.4 V.
It can handle a maximum peak pulse current of 66.1 A.
The dimensions are 7.11 mm in length, 2.62 mm in width, and 6.22 mm in height.
This diode operates within a temperature range of -55°C to 150°C.
It uses a surface mount type, specifically in a DO-214AB (SMC) package.
Yes, it is rated for automotive standards under AEC-Q101.
The maximum reverse leakage current is 1 µA.
This TVS diode is suitable for applications in consumer electronics, automotive sensor units, industrial controls, and telecommunication equipment.
Yes, the SMC3K28CAHM3_A/H is RoHS compliant, ensuring it meets environmental standards.
