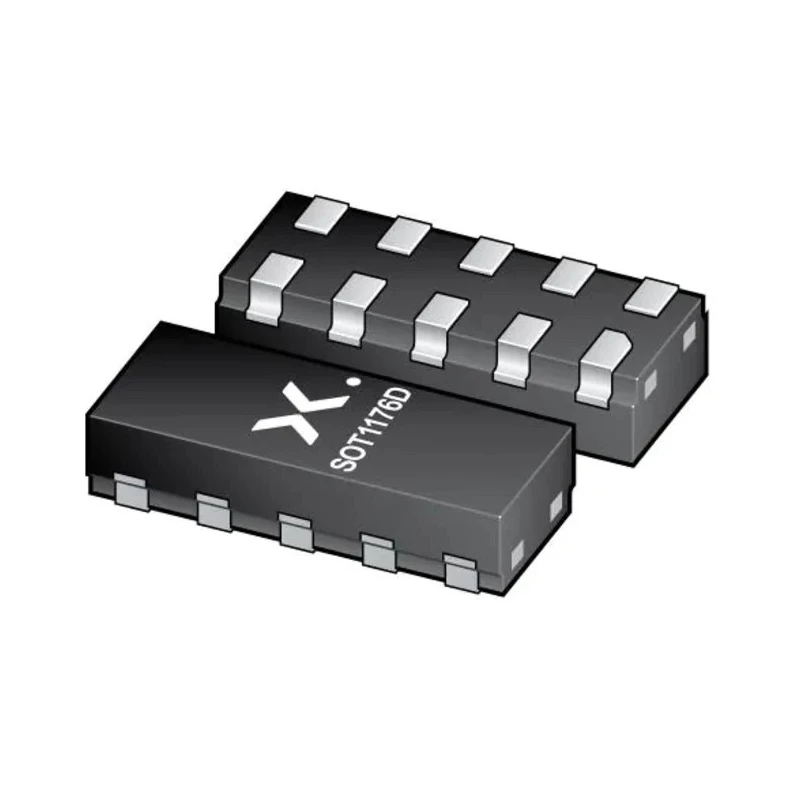

Nexperia Bi-Directional TVS Diode , 10-Pin DFN2510D, ISO10605, IEC61000-4-2, Automotive AEC-Q101
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.75mm |
| Length | 2.5mm |
| Model | DFN2510D |
| Width | 1mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN2510D |
| Minimum Operating Temperature | -55°C |
| Interfaces | USB 2 |
| Standards/Approvals | ISO10605, IEC61000-4-2 Level 4 |
| Pin Count | 10 |
| Clamping Voltage VC | 5.5V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 6V |
| Maximum Reverse Stand-off Voltage Vwm | 5V |
| Maximum Peak Pulse Current Ippm | 7A |
| Maximum Reverse Leakage Current | 100nA |
Key Features
- Bi-directional TVS diode for advanced ESD protection.
- 10-pin DFN2510D surface mount package for compact board layouts.
- Rated for up to 7 A peak pulse current and clamping voltage of 5.5 V.
- Compatible with USB 3.2, HDMI, Display Port, eSATA, LVDS, GMSL interfaces.
- Meets AEC-Q101 automotive standards; ideal for infotainment and camera modules.
- Operates from -55°C to +150°C for robust thermal stability.
- ISO10605 and IEC61000-4-2 compliance for industrial reliability.
- Ultra-low leakage current of 100 nA and low line capacitance of 0.5 pF.
Product Description
Nexperia PESD4USB5B-TBSX Bi-Directional TVS Diode is engineered for reliable protection of high-speed electronic interfaces against electrostatic discharge events. This diode is housed in a robust DFN2510D 10-pin surface mount package, providing space-saving integration for circuit designers and OEMs.
Featuring bi-directional ESD protection, the device supports interfaces operating at data rates up to 10 Gbps, including SuperSpeed USB 3.2, HDMI, Display Port, eSATA, LVDS, and GMSL SerDes technologies. With a maximum breakdown voltage of 6 V, a reverse stand-off voltage of 5 V, and clamping voltage of 5.5 V, the diode delivers reliable system-level protection while maintaining signal integrity.
Specially rated for automotive applications, PESD4USB5B-TBSX adheres to AEC-Q101 standards and is certified to ISO10605 and IEC61000-4-2 Level 4 for rigorous ESD reliability requirements. The wide operating temperature range from -55°C to +150°C ensures durability in demanding environments such as infotainment, display, camera modules, and connectors.
Ultra-low leakage current of 100 nA and a 0.5 pF line capacitance reduce signal disruption, while matched trace spacing and side-wettable flanks support automated optical inspection and design-friendly signal routing.
Bi-directional TVS diode for advanced ESD protection. 10-pin DFN2510D surface mount package for compact board layouts. Rated for up to 7 A peak pulse current and clamping voltage of 5.5 V. Compatible with USB 3.2, HDMI, Display Port, eSATA, LVDS, GMSL interfaces.
Meets AEC-Q101 automotive standards; ideal for infotainment and camera modules. Operates from -55°C to +150°C for robust thermal stability. ISO10605 and IEC61000-4-2 compliance for industrial reliability. Ultra-low leakage current of 100 nA and low line capacitance of 0.5 pF.
Typical applications include USB connectors, HDMI ports, serial and parallel video signal routing, infotainment electronics, automotive displays, and camera connectivity requiring robust ESD resilience. Suitable for industrial, automotive, commercial, and laboratory designs.
Discover the complete range of Nexperia ESD protection solutions in the TVS Diode category at EnvMart for reliable circuit safeguarding.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum peak pulse current rating for this model is 7 A.
The clamping voltage of this diode is 5.5 V.
It operates within a temperature range of -55°C to +150°C.
This diode is compatible with USB 3.2, HDMI, Display Port, eSATA, LVDS, and GMSL interfaces.
The dimensions of the DFN2510D package are 2.5 mm in length, 1 mm in width, and 0.75 mm in height.
It meets the AEC-Q101 automotive standard, ensuring suitability for automotive applications.
The maximum reverse stand-off voltage for this model is 5 V.
The minimum breakdown voltage is 6 V.
The maximum reverse leakage current is 100 nA.
This model complies with ISO10605 and IEC61000-4-2 Level 4 standards for ESD protection.
It uses a surface mount type for installation.
It is suitable for applications such as USB connectors, HDMI ports, and automotive infotainment systems.
