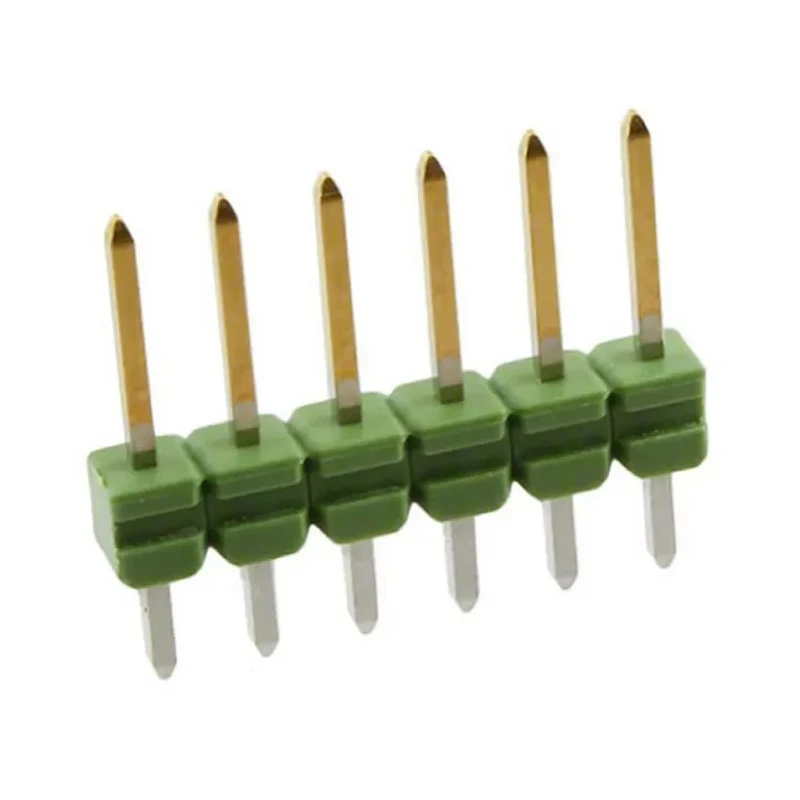

TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header, 6 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded 825433-6

TE Connectivity 825433-6 AMPMODU MOD II Series Straight Through Hole Pin Header is a precision-engineered connector designed for reliable electronic component interconnection on printed circuit boards. Featuring a single row of 6 straight male contacts with 2.54 mm pitch, this pin header is unshrouded to allow easy access and versatility in board-to-board and wire-to-board applications.

The header housing is made from Polybutylene Terephthalate, providing excellent mechanical strength and thermal resistance to operate reliably within a temperature range of minus 65 degrees Celsius to 105 degrees Celsius. Contacts are brass material plated with gold to ensure strong electrical conductivity, corrosion resistance, and durability in demanding environments. The termination method is solder, secured by through-hole mount technology, ensuring a robust electrical and mechanical connection to the board.

This connector supports up to 750 volts and carries a current of up to 3 amperes, rendering it suitable for automation, control systems, telecommunications devices, industrial machinery, medical instruments, and testing equipment. The pin header also features breakaway sections to allow easy customization of the number of pins needed, streamlining assembly and reducing labor time.

Unshrouded single row breakaway pin header with 6 contacts and 2.54 mm pitch. Polybutylene Terephthalate housing for chemical and thermal durability. Gold-plated brass contacts provide excellent conductivity and corrosion resistance.

Through hole solder mount ensures strong and permanent board connection. Rated for electrical current of 3A at 750V, supporting a wide range of applications. Operating temperature range from -65°C to 105°C for harsh environments.

Tail pin length of 3.2 mm and mating pin length of 6.7 mm for secure mating. Versatile breakaway design allows customization of header length. Widely used in automotive, industrial, telecommunications, test, and medical applications.

Part of the 2.54 mm pitch AMPMODU Mod II Interconnect System, known for reliable and economical connections.

The TE Connectivity AMPMODU MOD II series is a trusted interconnect standard widely adopted across industries for its reliability and ease of assembly. This pin header maintains signal integrity and robust mechanical performance required in electronic assemblies. Choosing this product ensures compatibility with a broad ecosystem of Mod II connectors enabling efficient and flexible industrial and commercial designs.
