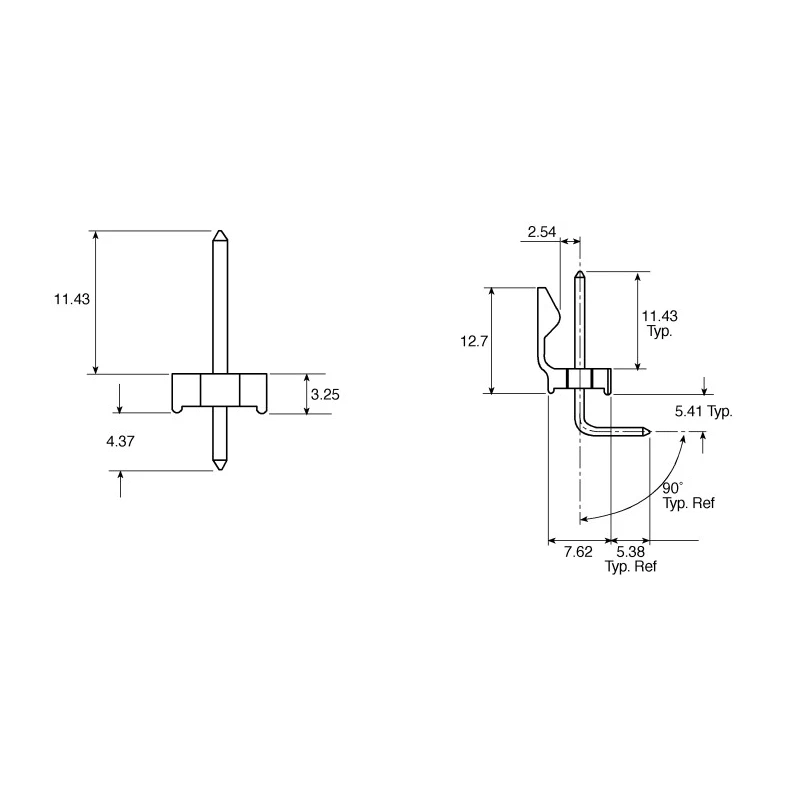

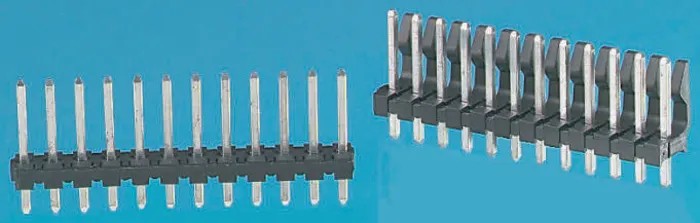

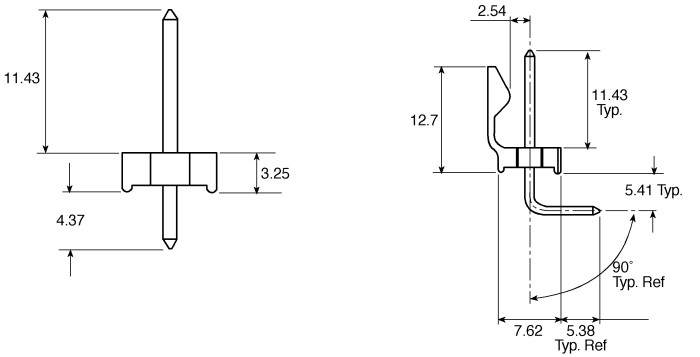

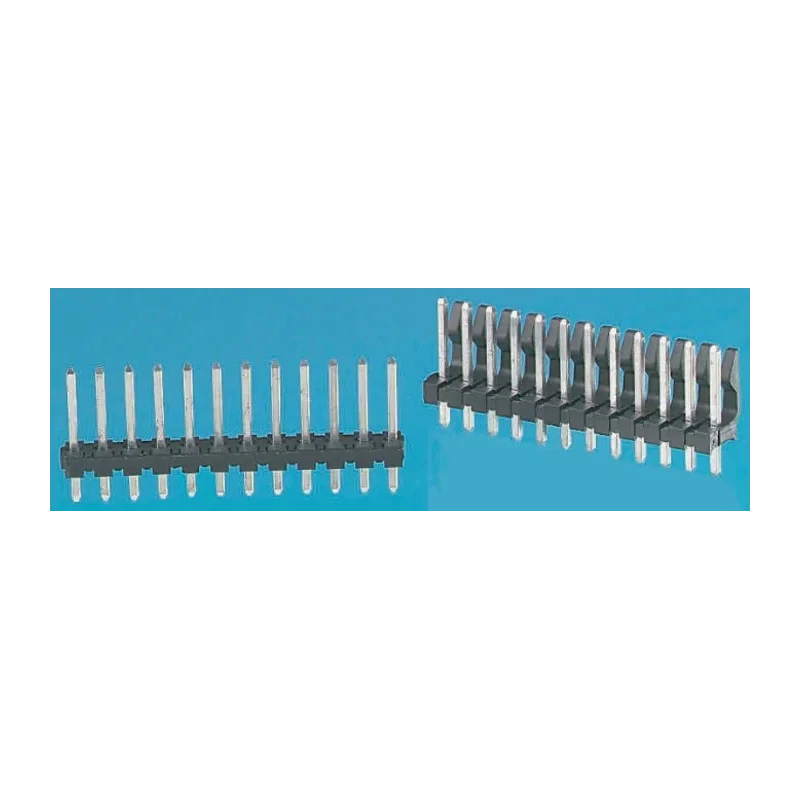

Molex KK 396 Series Right Angle Through Hole Pin Header, 24 Contacts, 3.96 mm Pitch, 1 Row, Unshrouded 26-48-1242
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 7A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | KK 396 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 3.96mm |
| Contact Plating | Tin |
| Number of Contacts | 24 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 4.67mm |
| Mating Pin Length | 14.55mm |
Key Features
- Right angle, through hole mount for reliable board connection.
- 24 male contacts made of brass with tin plating.
- Housing material is durable polyester suitable for industrial use.
- Operating temperature range from -40°C to 105°C.
- Solder termination with a tail pin length of 4.67 mm.
- Mating pin length of 14.55 mm ensures secure connection.
- Unshrouded design allows easy access and assembly.
- Designed for board-to-board and wire-to-board connector systems.
Product Description
Molex 26-48-1242 KK 396 Series Right Angle Through Hole Pin Header is a high-quality electrical component designed to provide robust and reliable connections in industrial electronics and PCB applications. Featuring 24 male brass contacts with tin plating, this pin header supports a current of up to 7 A and voltage rating of 250 V, making it suitable for a variety of power and signal applications.
The connector consists of a single row of pins spaced at a 3.96 mm pitch in a right angle configuration, allowing efficient and compact board layout. Its through hole mount design ensures mechanical stability and integrity in PCB assembly processes.
The housing is constructed from a durable polyester material, rated UL94V-2 for flammability, ensuring safety and long-lasting performance in harsh industrial environments. The product operates effectively across a wide temperature range of -40°C to 105°C, covering diverse operating conditions.
The termination type is solder, with a tail pin length of 4.67 mm and mating pin length of 14.55 mm, promoting secure soldering and reliable mating with complementary components. The unshrouded design allows easy visual inspection and access during assembly or maintenance.
Right angle, single row 24-position pin header for board to board and wire to board applications. Robust brass contacts with tin plating optimize conductivity and corrosion resistance. Polyester housing provides excellent insulation and mechanical strength.
Approvals include UL recognized and CSA certified standards for industry compliance. Designed for industrial, electronic manufacturing, and laboratory equipment uses.
Ideal for use in electronic assembly, control panels, and industrial automation systems, this Molex KK 396 series pin header offers dependable connectivity solutions. Explore the Electronics Components category at EnvMart for related connectors and accessories to complete your projects.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this pin header is 250 V.
This model supports a current of up to 7 A.
The contacts are spaced at a pitch of 3.96 mm.
The contacts are made of brass with tin plating, while the housing is constructed from durable polyester.
It operates effectively within a temperature range of -40°C to 105°C.
This pin header features 24 male contacts.
The termination type for this connector is solder.
The tail pin length is 4.67 mm.
The mating pin length is 14.55 mm.
This model uses a through hole mounting type.
This pin header is unshrouded, allowing for easy access and assembly.
It is designed for board-to-board and wire-to-board connector systems.
