TDK Transformer Ferrite Core N97 Material RM 12 Core Size 5300 nH AL Rating IEC 62317-4 B65815E0000R097

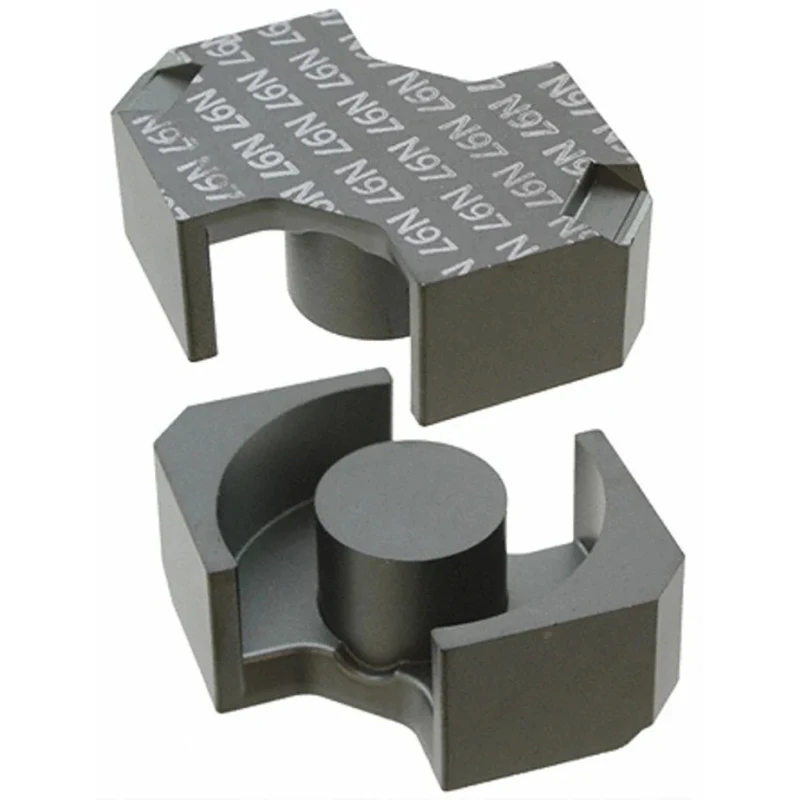

TDK B65815E0000R097 Transformer Ferrite Core RM 12 is engineered from N97 ferrite material, providing excellent magnetic properties optimized for power transformers. This core is specifically designed to support high performance and efficiency in transformer manufacturing, meeting international IEC 62317-4 standards for quality and reliability.

The core size RM 12 dimensions are Length 37.6mm, Width 29.8mm, and Depth 24.6mm, offering a compact profile for various transformer configurations. With an AL rating of 5300 nH, it delivers precise inductance necessary for transformer operation in electrical and electronic circuits.

Featuring a maximum operating temperature of 155°C, the core ensures stability and durability in demanding thermal environments commonly found in industrial and electronic power applications.

The core size is RM 12, suitable for precision transformer designs. Constructed with high-quality N97 ferrite material ensuring optimal magnetic performance. AL rating of 5300 nH provides reliable inductance characteristics.

Meets IEC 62317-4 standards for transformer cores and magnetic components. Maximum operating temperature of 155°C supports stable operation under thermal stress. Physical dimensions: Length 37.6mm, Width 29.8mm, Depth 24.6mm for compact fitting.

Manufactured with consistent quality by TDK in Czech Republic.

This transformer ferrite core is suitable for industrial electronics, power supply units, and transformer manufacturing applications where high reliability and performance are essential. Explore more electrical components and Transformer Cores with EnvMart for all your industrial and electronics project needs.
