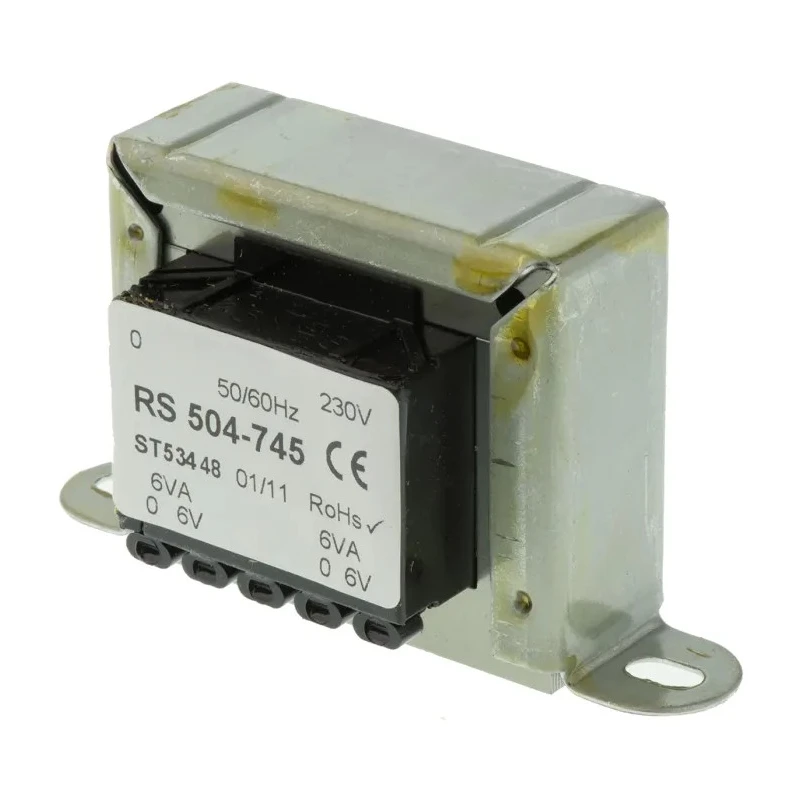

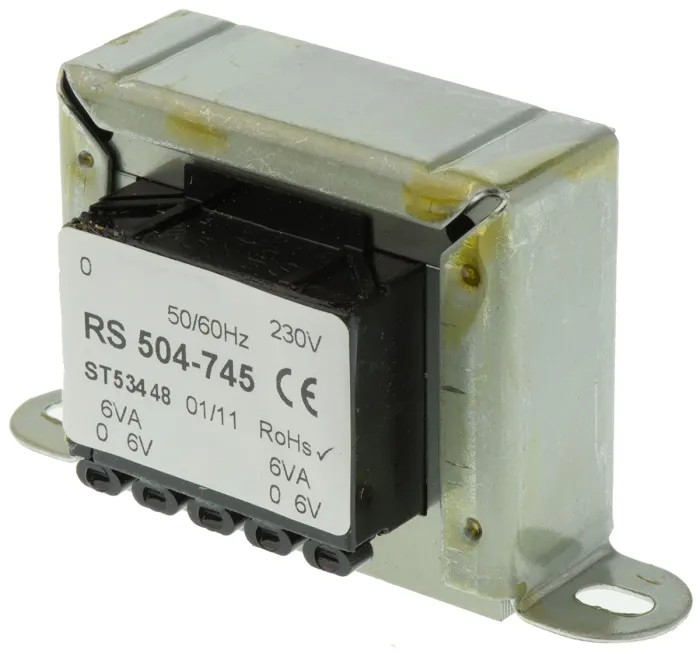

RS PRO 2 Output 12 VA Chassis Mount Transformer, 230V AC Primary, 6V AC Secondary, 504-745

The RS PRO 504-745 is a chassis mount transformer engineered for reliable low voltage power supply in electronic and industrial applications. It offers 2 independent secondary outputs, each rated at 6V AC, supplied through a robust fully-shrouded clamp enclosure for secure chassis installation. With a primary voltage of 230V AC and a power rating of 12 VA, this transformer is ideal for powering control circuits, instrumentation, and small electronic devices requiring stable AC voltage conversion.

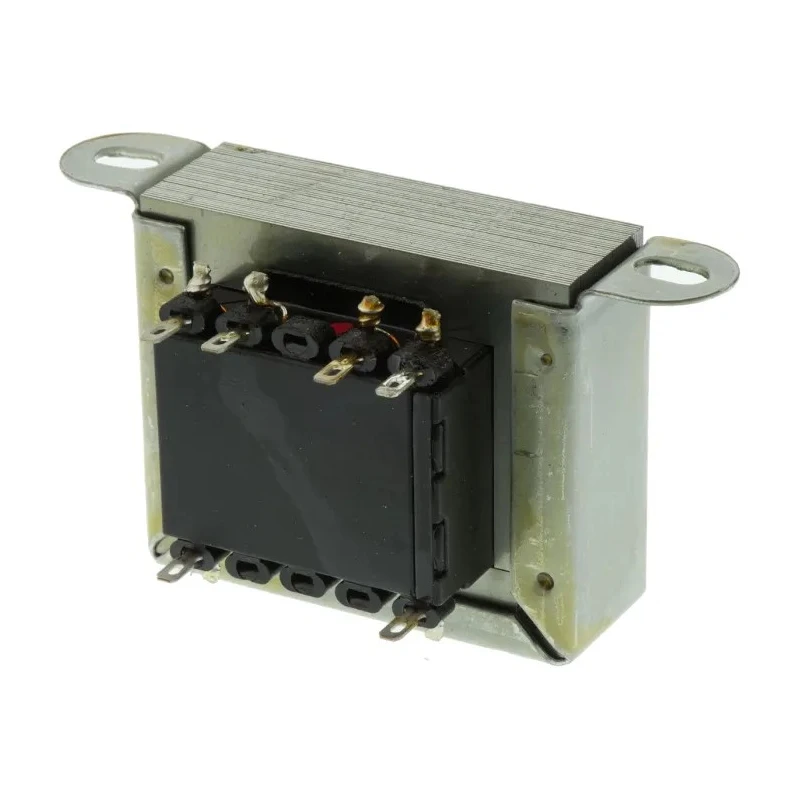

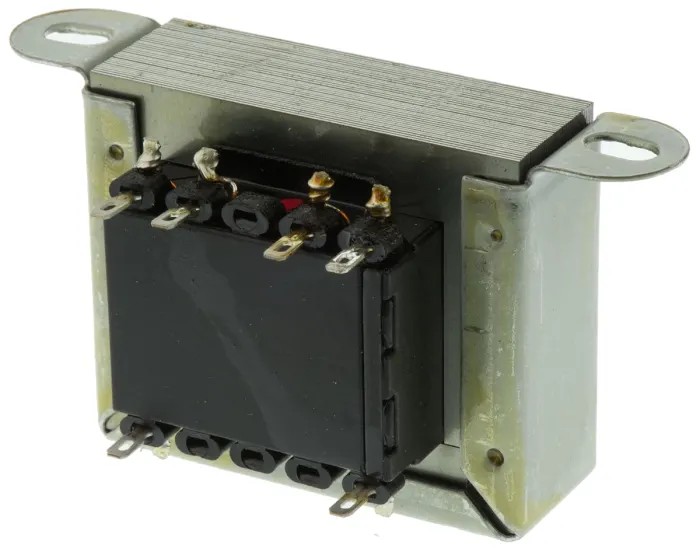

Its double section bobbin construction ensures superior insulation and mechanical strength, while full varnish impregnation provides lasting protection against environmental influences and electrical stress. The fully shrouded bobbin design and solder tag terminations facilitate safe and easy installation, minimizing risks during panel assembly.

The transformer supports flexible secondary wiring - users can connect the two independent secondary windings in series or parallel to customize output voltage and current according to the application’s needs. The wide operating temperature range from -30°C to 130°C enables stable performance in harsh or variable environments.

Compliances include CE and RoHS, as well as multi-national standards (AS/NZS, IEC, and BS), making it suitable for use across global industrial, laboratory, and commercial installations. It is fully electrical and flash tested, as per BS3535 and EN 60 742 specifications, assuring quality and reliability for critical use cases.

Typical applications include control panels, laboratory instruments, HVAC systems, automation equipment, and areas requiring electrically isolated 6V AC power in chassis mount format. Dimensions of 59mm length, 50mm width, and 50mm depth allow for compact integration within equipment enclosures. The gross weight of 210g ensures it is lightweight yet sturdy for typical electronics deployments.
