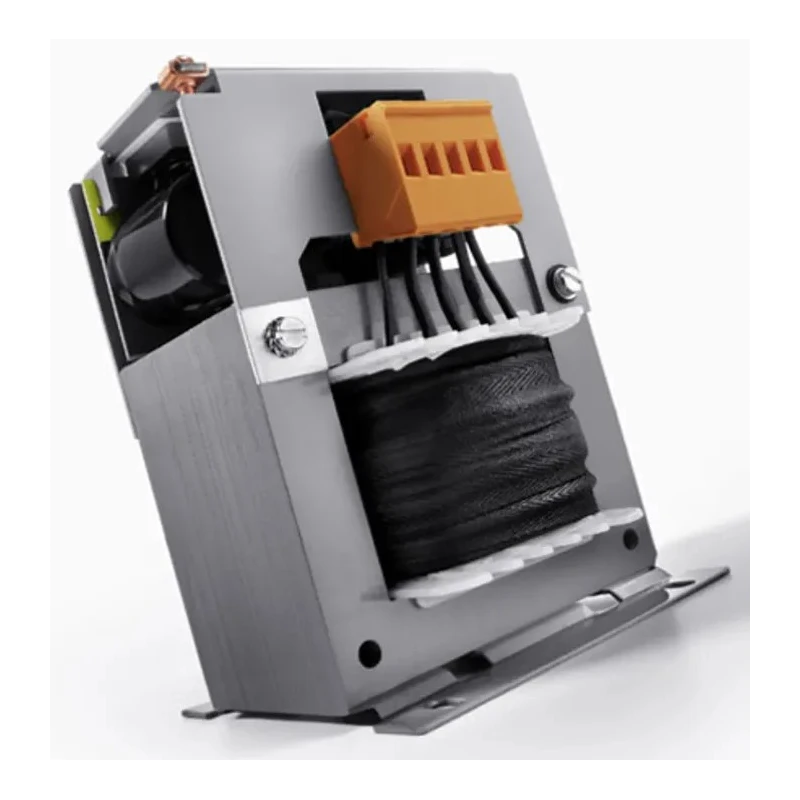

Block 320 VA Chassis Mount Transformer 2 x 24 V ac 400 V ac Primary Input STEU 320/48

Name: Block 320 VA Chassis Mount Transformer 2 x 24 V ac 400 V ac Primary Input STEU 320/48
Brand: Block
SKU: 141584
Price: 219.04 USD
Availability: InStock



Category Chassis Mount Transformer Brand Block Condition New

Specifications

Country of Origin	Germany
Brand	Block
Model	STEU 320/48
Depth	92mm
Gross Weight	4.3kg
Width	120mm
Series	STEU
Maximum Operating Temperature	40°C
Primary Voltage	400 V ac, 230 V
Secondary Voltage	2 x 24 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz

Key Features

Designed for reliable electrical isolation with safety approvals including EN 61558-2-2 and VDE 0570 standards.
Compact chassis mount form with robust metal footplate for easy installation.
Spring clamp terminals provide secure and quick wiring connections.
Operates safely within a maximum temperature of 40°C and frequency range of 50 to 60 Hz.
Offers excellent corrosion protection and low noise performance.
Suitable for control systems and applications requiring SELV and PELV voltage limits.
Constructed to meet multiple international electrical safety standards including CSA and UL certifications.
Compact dimensions of 120mm width and 92mm depth allow efficient mounting.

Product Description

Block STEU 320/48 is a high-performance Chassis Mount Transformer delivering 320 VA power with dual voltage primary inputs of 230 V ac and 400 V ac, designed for industrial and control application safety isolation.

This isolating transformer supports output of 2 x 24 V ac, making it suitable for SELV and PELV systems, adhering to stringent international safety standards like EN 61558-2-2, EN 61558-2-6, CSA 22.2 No.66, and VDE 0570 Teil 2-2. It complies also with UL 5085-1/-2, ensuring assured electrical protection and reliability.

The unit's compact chassis mount design includes a robust metal footplate with oval slots to facilitate secure mounting. Spring clamp terminals simplify wiring tasks while providing secure connections.

Operating within a frequency range of 50 to 60 Hz and a maximum temperature rating of 40°C, this transformer maintains excellent low-noise output and corrosion resistance, ensuring lasting operational stability.

Typical applications include control panels, industrial electronic equipment, and any system requiring safe electrical isolation for functional earthing and voltage limitation. Its compact dimensions of 120 mm width and 92 mm depth, along with a weight of 4.3 kg, ensure that it occupies minimal space while maintaining mechanical robustness.

Reliable electrical isolation complying with multiple safety standards. Dual primary voltage input for versatile installation environments. Compact, corrosion-resistant chassis with robust mounting features. Spring clamp terminals for secure and swift installation.

Low operating noise for quiet industrial applications. Suitable for creating SELV and PELV compliant circuits. Operates at standard industrial frequencies and temperatures. Certified to international electrical safety standards including UL and CSA.

Compact size aids easy integration into control systems. Explore more transformers and electrical components from Block at EnvMart for your industrial power supply requirements.
