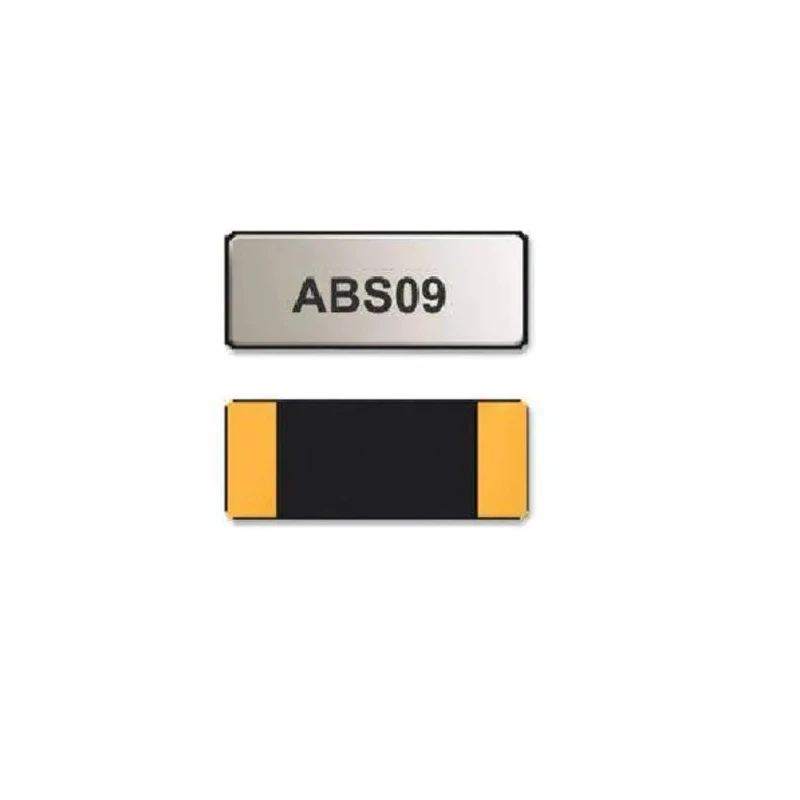

Abracon Surface Mount Crystal 32.768 MHz ±20 ppm, 2-Pin, Low Profile Ceramic Package ABS09-32.768KHZ-1-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 0.9mm |
| Length | 4.1mm |
| Model | ABS09-32.768KHZ-1-T |
| Packaging | Tape & Reel |
| Width | 1.5mm |
| Mount Type | Surface |
| Series | ABS09 |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Standard Frequency | 32.768MHz |
| Load Capacitance | 12.5pF |
| Series Resistance | 70kΩ |
Key Features
- Operates at a standard frequency of 32.768 MHz.
- ±20 ppm frequency tolerance ensures stable performance.
- Compact ceramic package with 0.9 mm height.
- Ideal for applications requiring extended temperature range from -40°C to 85°C.
- 2-pin surface mount configuration simplifies PCB integration.
- Load capacitance of 12.5 pF suited for precision designs.
- RoHS compliant for environmental safety.
- Series resistance of 70 kΩ for optimal signal quality.
Product Description
Abracon ABS09-32.768KHZ-1-T is a high-stability surface mount crystal operating at 32.768 MHz, designed for electronic applications requiring precise timing solutions. Featuring a compact ceramic package (0.9 mm height, 4.1 mm length, 1.5 mm width), it is optimized for high-density circuit boards found in communication, measurement equipment, wireless electronics, and personal digital assistants.
Standard frequency of 32.768 MHz for dependable clocking. ±20 ppm frequency tolerance meets industrial-grade precision requirements. Surface mount design (SMD) facilitates automated assembly and reduces space constraints.
2-pin configuration ensures straightforward and stable PCB integration. Low profile ceramic package enhances environmental and heat resistance. Extended operating temperature range (-40°C to 85°C) supports robust industrial performance.
12.5 pF load capacitance compatible with many digital and analog circuit designs. RoHS compliance guarantees safety and sustainability.
This crystal is commonly utilized in timing elements of communication equipment, measuring instruments, wireless devices, PDA and palm pilots, as well as any systems requiring reliable low-frequency operation in small SMD formats. Suitable for automotive, industrial, laboratory, and commercial electronics.
The crystal's tape and reel packaging supports volume manufacturing, and its 70 kΩ series resistance ensures quality signal transmission. This part is not automotive standard, focusing on industrial and commercial use cases.
Choose Abracon for reliable clocking components engineered for efficiency and easy integration. Explore more Crystal Units and passive components in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 32.768 MHz.
This model has a height of 0.9 mm.
It has a load capacitance of 12.5 pF, suitable for precision designs.
The operating temperature range is from -40°C to 85°C.
This crystal unit features a 2-pin configuration.
The series resistance is 70 kΩ, which ensures optimal signal quality.
It is packaged in tape and reel format, which supports volume manufacturing.
The dimensions are 4.1 mm in length, 1.5 mm in width, and 0.9 mm in height.
Yes, this crystal unit is RoHS compliant, ensuring environmental safety.
It is commonly used in communication equipment, measuring instruments, and wireless devices.
This unit uses a surface mount configuration, facilitating PCB integration.
The country of origin for this crystal unit is India.
