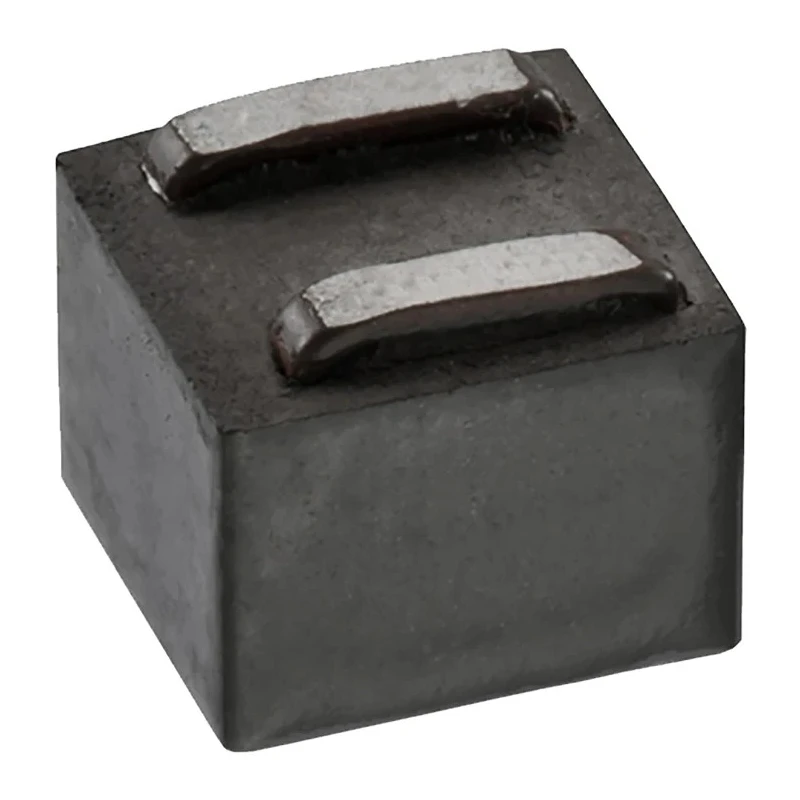

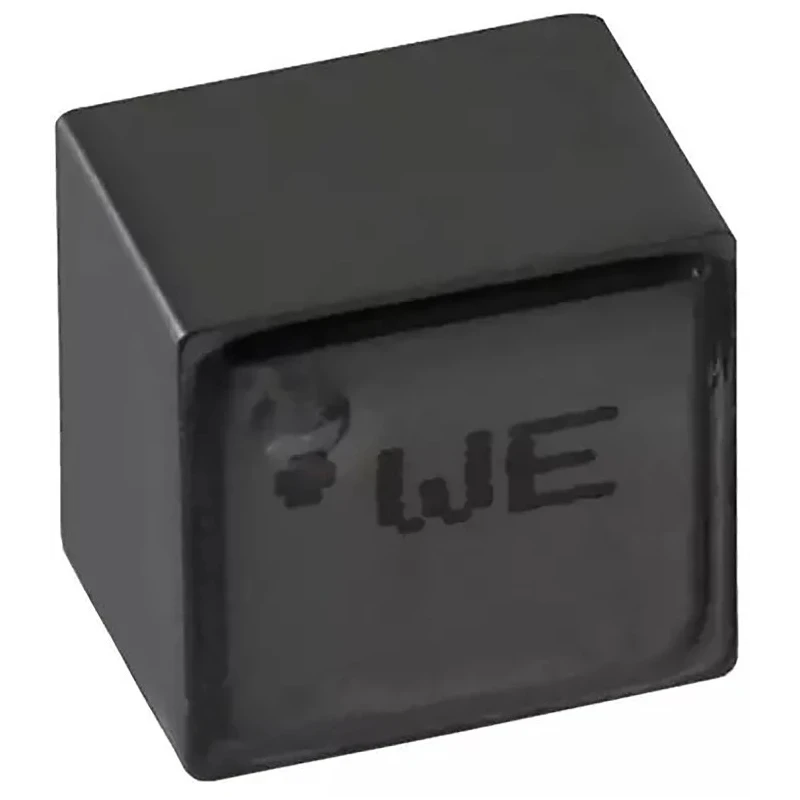

Wurth Elektronik WE-XHMI 6060 Shielded Wirewound Surface Mount Inductor 10μH ±20% 5A Powdered Iron Core 74439346100
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 5.2mm |
| Length | 6.65mm |
| Depth | 6.45mm |
| Packaging | Tape & Reel |
| Series | WE-XHMI |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Powdered Iron |
| Inductance | 10μH |
| Standards/Approvals | IEC 61249-2-21, JEDEC JS709B, REACH, RoHS |
| Package/Case | 6060 |
| Maximum DC Current | 5A |
| Pin Count | 2 |
| Maximum DC Resistance | 26.5mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 16MHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Automotive grade shielded wirewound power inductor with high current capability.
- Inductance of 10μH ±20% for reliable filtering and energy storage.
- Powdered iron core construction supports high transient current spikes and reduces copper losses.
- Maximum DC current rating of 5A with low DC resistance of 26.5mΩ.
- Magnetically shielded compact design suitable for battery-powered and wireless devices.
- Operating temperature range from -40°C to 125°C, conforming to AEC-Q200.
- Moulded surface mount package (6060) for efficient PCB integration.
- Compliant with IEC 61249-2-21, JEDEC JS709B, REACH, and RoHS standards.
Product Description
Wurth Elektronik 74439346100 Shielded Wirewound Surface Mount Inductor is a high-performance component designed for demanding power electronic applications. With an inductance of 10μH (±20% tolerance) and a maximum DC current of 5A, this inductor utilizes a powdered iron core to deliver efficient energy storage and filtering capability while minimizing copper losses.
This inductor features a magnetically shielded, moulded construction in a compact 6060 surface mount package, optimizing PCB space and ensuring low leakage flux noise. The device is compliant with AEC-Q200 automotive standards, making it suitable for automotive-grade designs and applications that require high current throughput.
Its wide operating temperature range, from -40°C to 125°C, allows for reliable operation under extreme environmental conditions. The low DC resistance of 26.5mΩ supports low-loss performance, and the maximum self-resonant frequency of 16MHz enables high-frequency usage.
The termination style is surface mount, and the inductor meets industry-recognized standards including IEC 61249-2-21, JEDEC JS709B, REACH, and RoHS, ensuring environmental and regulatory compliance.
Automotive grade shielded wirewound power inductor with powdered iron core. Inductance 10μH ±20%, maximum DC current 5A. Low DC resistance of 26.5mΩ, high transient current tolerance. Compact SMD package 6060, surface mount termination.
Conforms to AEC-Q200, IEC 61249-2-21, and JEDEC JS709B standards. Magnetically shielded for minimal flux leakage and noise. Moulded construction ensures durability and integration compatibility. Applications include battery-powered devices, wireless equipment, mainboards, graphic cards, DC-DC converters, and high-current power supplies.
This inductor is ideal for OEMs, design engineers, and manufacturers in sectors including automotive, consumer electronics, industrial automation, and communication infrastructure. Explore more Surface Mount Inductors from Wurth Elektronik on EnvMart for robust, high-performance passive components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this inductor is 10μH with a tolerance of ±20%.
This model has a maximum DC current rating of 5A.
The inductor features a low DC resistance of 26.5mΩ.
It operates within a temperature range of -40°C to 125°C.
The maximum self-resonant frequency of this inductor is 16MHz.
The inductor utilizes a powdered iron core for efficient performance.
The dimensions are 6.65mm in length, 6.45mm in depth, and 5.2mm in height.
It complies with IEC 61249-2-21, JEDEC JS709B, REACH, and RoHS standards.
The termination style of this inductor is surface mount.
This inductor is packaged in tape and reel format.
Yes, it conforms to AEC-Q200 automotive standards, making it suitable for automotive applications.
This inductor is suitable for applications including battery-powered devices, wireless equipment, and DC-DC converters.
