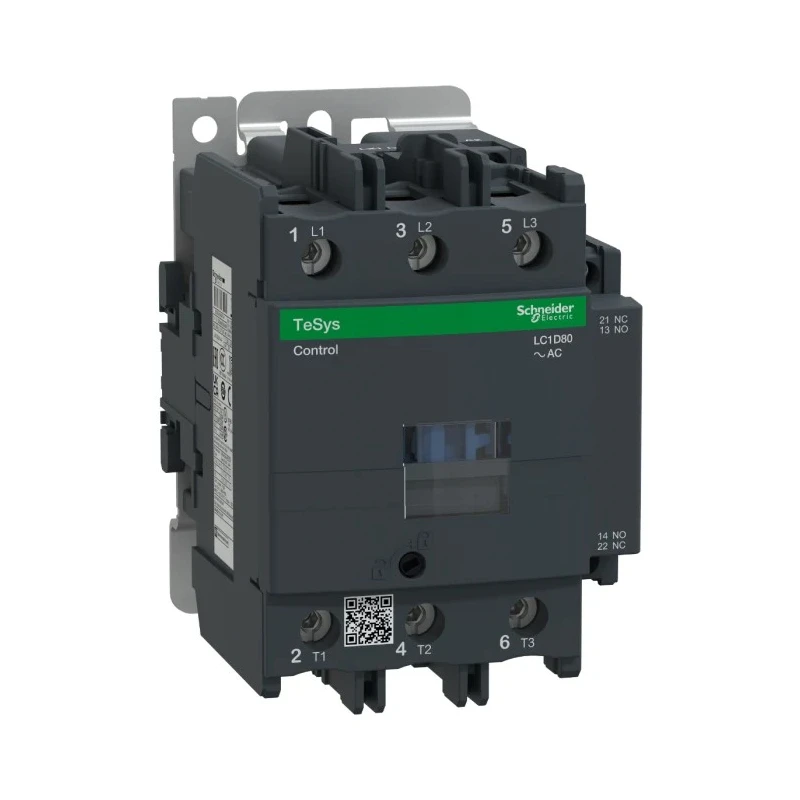

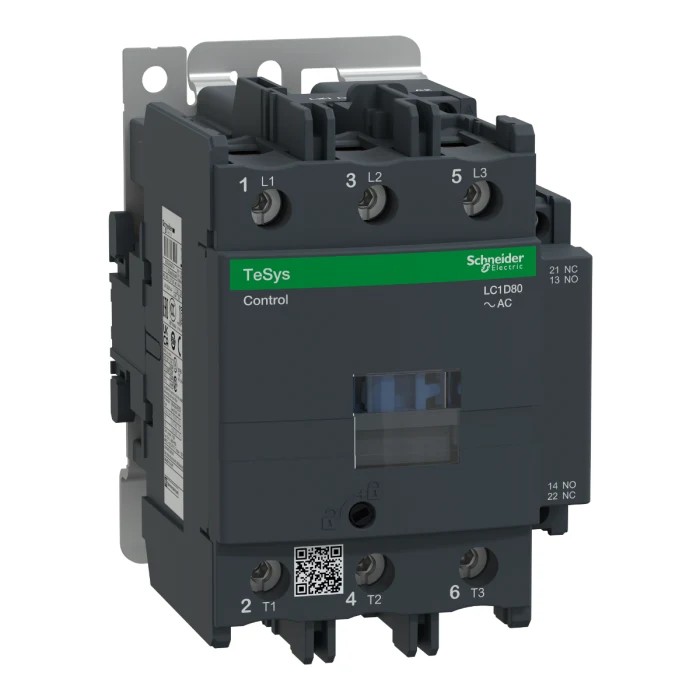

Schneider Electric LC1D TeSys D Contactor, 48V AC Coil, 3-Pole, 80A, 45 kW, 1 kV AC, Motor Control LC1D80E7

Schneider Electric LC1D80E7 is a high-performance TeSys D contactor designed for motor control and resistive load applications, featuring a 48V AC coil and a robust 3-pole configuration rated at 80 amps and 45 kW power. This device is built to deliver reliable switching and control in industrial environments requiring high durability and operational efficiency.

The contactor supports motor control for three-phase circuits with a contact voltage rated at 1 kV AC, offering three normally open main contacts and two auxiliary contacts (1 NO, 1 NC) for versatile control circuit configurations. Its compact dimensions (127mm length x 85mm width x 125mm depth) and DIN rail or screw mounting capability make it suitable for space-constrained installations.

Designed to operate under temperature ranges from -5°C to 60°C, it features screw clamp terminals for secure electrical connections and is capable of handling operational currents up to 80A. The product complies with major international safety and performance standards, including CCC, CSA, EAC, EN 60947-5-1, IEC, RoHS, and UL, making it suitable for global industrial applications.

Schneider Electric LC1D80E7 supports high operational rates up to 3600 cycles per hour, ensuring longevity and reliable performance in demanding conditions. It is compatible with 480VAC circuit breakers up to 150A and Class J or CC fuses up to 175A, allowing short circuit current ratings of up to 100 kA for enhanced system protection.

This contactor is ideal for use in industrial, manufacturing, HVAC, and motor control applications where dependable switching of power-to-motor circuits is critical. Its design ensures reduced downtime with high durability and ease of maintenance.

Rated for 80A and 45kW motor control at 48V AC coil voltage. 3 normally open poles with integrated auxiliary contacts (1 NO, 1 NC). Compact size with DIN rail mounting for flexible installation. Operational temperature range from -5°C to 60°C for harsh environments.

Certified to multiple international standards ensuring compliance and safety. Screw clamp terminals offer reliable electrical connections. Designed for high cycle frequency and durability. Supports high short circuit current rating up to 100 kA with appropriate breakers and fuses.
