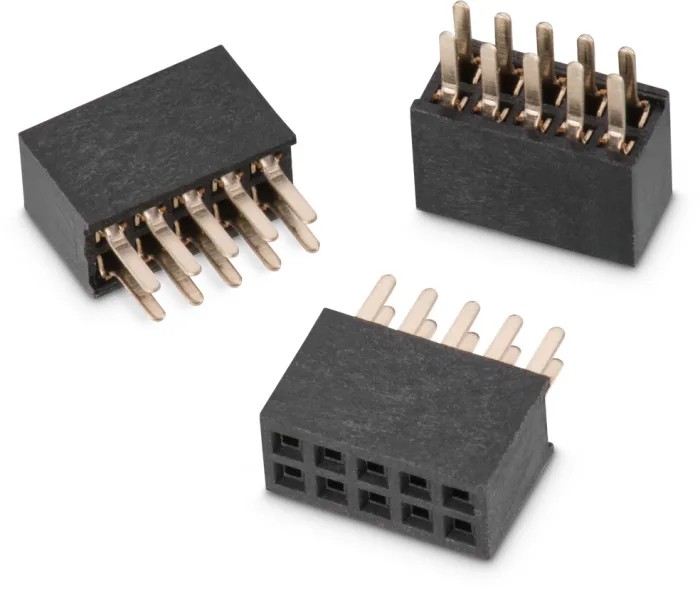

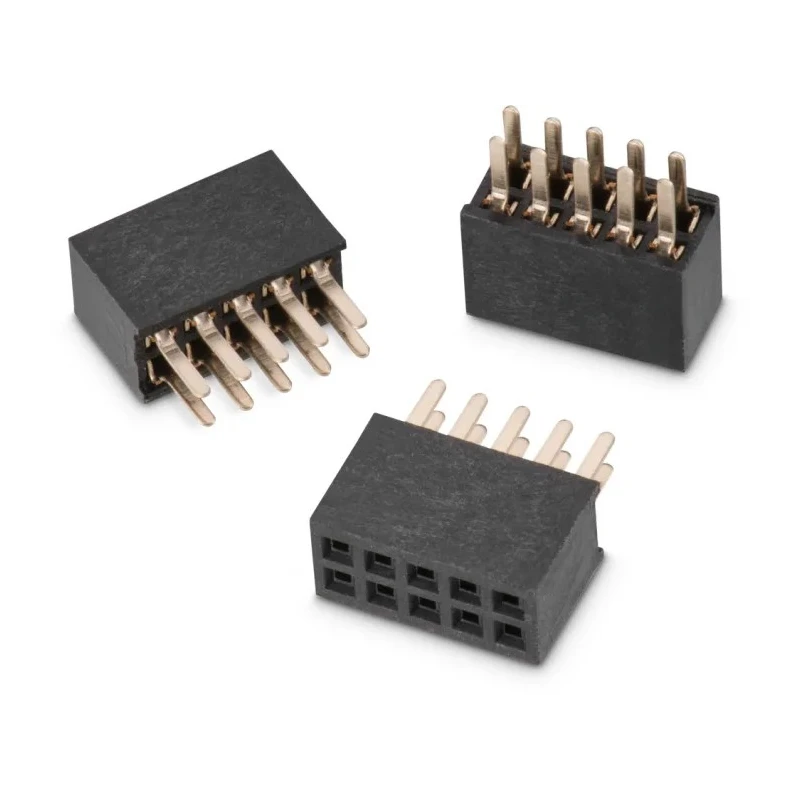

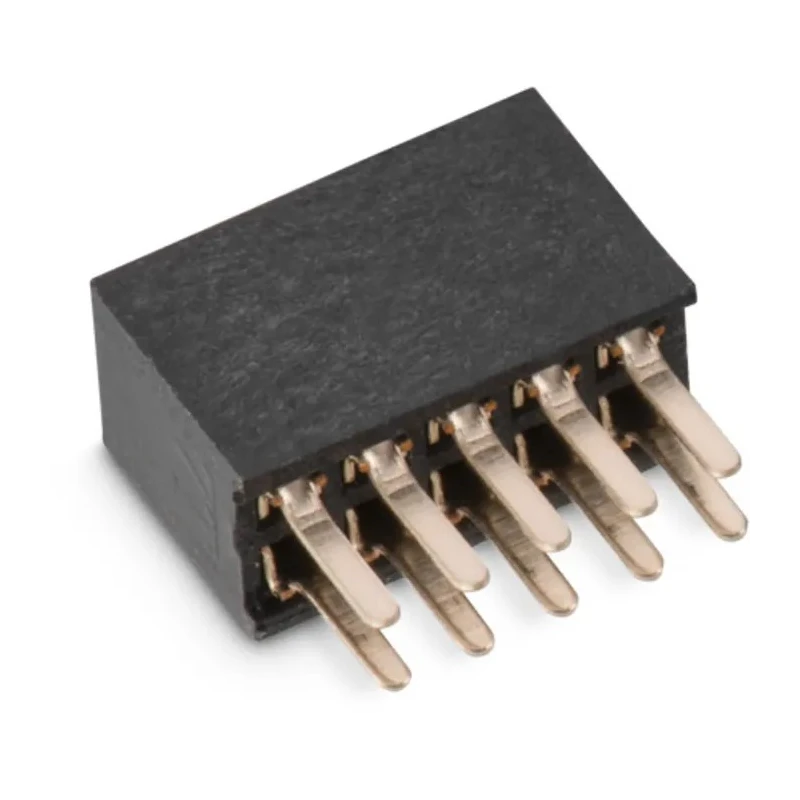

Wurth Elektronik WR-PHD Series Straight Through Hole PCB Socket, 16-Contact, 2 Row, 1.27 mm Pitch, Solder, 100V 62201621821
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 100V |
| Brand | Wurth Elektronik |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Copper Alloy |
| Series | WR-PHD |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 16 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Withstanding Voltage | 500 V (AC) |
| Insulator Material | PA9T |
Key Features
- Provides secure board-to-board PCB connection with 16 female contacts.
- Straight orientation for efficient and compact installation.
- Through hole mount, suitable for robust mechanical retention.
- Solder termination enables strong electrical contact.
- Supports up to 1A current and 100V voltage ratings.
- Polyamide (PA9T) housing for high durability and insulation.
- Copper alloy contacts plated with gold for excellent conductivity.
- Operates reliably from -40°C to +105°C ambient temperature.
Product Description
Wurth Elektronik 62201621821 WR-PHD Series Straight Through Hole PCB Socket offers a reliable and compact interconnect solution for board-to-board applications. Engineered with 16 female contacts arranged in two rows and a 1.27 mm pitch, it enables a dense and secure connection ecosystem. The straight orientation further ensures suitability for tight layouts within electronic assemblies.
Provides secure board-to-board PCB connection with 16 female contacts. Straight orientation for efficient and compact installation. Through hole mount, suitable for robust mechanical retention. Solder termination enables strong electrical contact.
Supports up to 1A current and 100V voltage ratings. Polyamide (PA9T) housing for high durability and insulation. Copper alloy contacts plated with gold for excellent conductivity. Operates reliably from -40°C to +105°C ambient temperature.
Compliant with WR-PHD Series specifications for quality and performance.
The socket is ideal for industrial electronics, consumer devices, instrumentation, and PCB design tasks requiring consistent connectivity and longevity. With a housing material of polyamide and gold-plated copper alloy contacts, it ensures high electrical integrity and resistance to common environmental factors. The device supports soldered termination on through hole PCBs, making it suitable for automated or manual installation in manufacturing workflows.
Typical use cases include industrial controls, laboratory instruments, data acquisition systems, embedded systems, and general electronics manufacturing. Board-to-board connections provided by this socket facilitate troubleshooting, modularity, and future upgrades.
Explore more PCB Socket solutions in the Electronics & Electricals category on EnvMart. Wurth Elektronik is renowned for quality interconnect products for professional and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this PCB socket is 100V.
This model has 16 female contacts arranged in two rows.
The pitch of the contacts in this socket is 1.27 mm.
This socket uses solder termination for strong electrical contact.
It operates reliably in an ambient temperature range from -40°C to +105°C.
The housing is made from polyamide (PA9T), providing high durability and insulation.
This socket supports a current rating of up to 1A.
The contacts are made of copper alloy and are plated with gold for excellent conductivity.
This model features a through hole mount suitable for robust mechanical retention.
The withstanding voltage for this socket is 500 V (AC).
It is ideal for industrial electronics, consumer devices, instrumentation, and PCB design tasks requiring consistent connectivity.
The socket supports soldered termination on through hole PCBs, making it suitable for both automated and manual installation.
