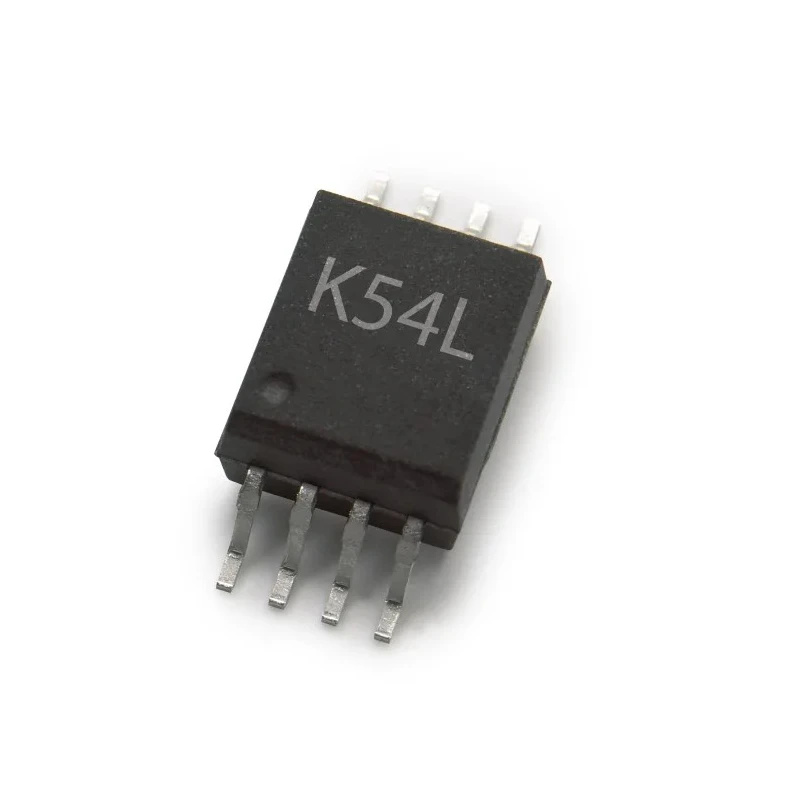

Broadcom DC Input 2-Channel Optocoupler, Surface Mount, 8-Pin SO, Maximum Forward Voltage 1.55V, ACPL-K54L-560E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | ACPL-K54L-560E |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | ACPL |
| Maximum Operating Temperature | 105°C |
| Package Type | SO |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 10mA |
| Number Of Channels | 2 |
| Standards/Approvals | UL, EN, CSA, IEC |
| Maximum Forward Voltage | 1.55V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Minimum Current Transfer Ratio | 53% |
Key Features
- Operates as a dual-channel optocoupler, suitable for isolating independent signals.
- Surface-mount package enables automated PCB assembly and space-saving design.
- Handles a maximum forward voltage of 1.55V, supporting low power consumption.
- DC input and TTL compatible open-collector output streamline integration in digital circuits.
- Features a high isolation voltage of 3750Vrms for enhanced safety and noise immunity.
- Supports a maximum input current of 10mA and ensures fast signal transmission.
- Operates within a broad temperature range from -40°C to 105°C for reliable use under demanding conditions.
- Compliant with multiple international standards such as UL, EN, CSA, and IEC.
Product Description
Broadcom ACPL-K54L-560E DC Input 2-Channel Optocoupler is designed for engineers seeking robust digital isolation solutions in high-reliability environments. This device features a dual-channel architecture, making it ideal for applications that require the isolation of two separate digital signals within a single component.
Built in a compact 8-pin SO surface-mount package, the ACPL-K54L-560E supports streamlined installation and efficient use of PCB real estate. It employs a low-power, low-input current design with a maximum forward voltage of just 1.55V and a maximum input current of 10mA, making it suitable for energy-efficient systems.
With a high isolation voltage of 3750Vrms, this optocoupler protects sensitive integrated circuits from electrical noise, voltage spikes, and ground loop disturbances. The open-collector TTL compatible output allows for flexible interfacing with various digital logic families in microcontroller, PLC, and industrial automation applications.
Dual independent Optocoupler channels in one device for versatile isolation capabilities. Designed for surface mounting, ensuring compatibility with modern assembly practices. DC input configuration supports easy driving from signal-level sources.
Minimum current transfer ratio of 53% assures efficient signal propagation. Broad operating temperature range (-40°C to 105°C) meets harsh environment demands. Compliant with UL, EN, CSA, and IEC standards for global application compatibility.
This device is suitable for use in industrial, instrumentation, process control, automation systems, consumer electronics, and data communication equipment. It is trusted for tasks requiring safe signal separation, PLC input/output isolation, and protecting microcontrollers from high-voltage transients.
With the Broadcom pedigree, the ACPL-K54L-560E brings world-class reliability and engineering quality to your electronics projects. For more products in the optoelectronics and isolation component category, continue browsing Broadcom's specialized range on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward voltage of this optocoupler is 1.55V.
It features a high isolation voltage of 3750Vrms, which enhances safety and noise immunity.
This model operates within a broad temperature range from -40°C to 105°C.
It is a dual-channel optocoupler, allowing for the isolation of two separate digital signals.
The maximum input current supported by this model is 10mA.
It features an open-collector TTL compatible output, which facilitates integration with various digital logic families.
The minimum current transfer ratio is 53%, ensuring efficient signal propagation.
This optocoupler comes in an 8-pin SO (Small Outline) surface-mount package.
It is compliant with multiple international standards including UL, EN, CSA, and IEC.
The ACPL-K54L-560E is packaged in tape and reel for efficient handling and assembly.
It supports DC input configuration, making it easy to drive from signal-level sources.
This optocoupler is suitable for use in industrial, instrumentation, process control, automation systems, consumer electronics, and data communication equipment.
