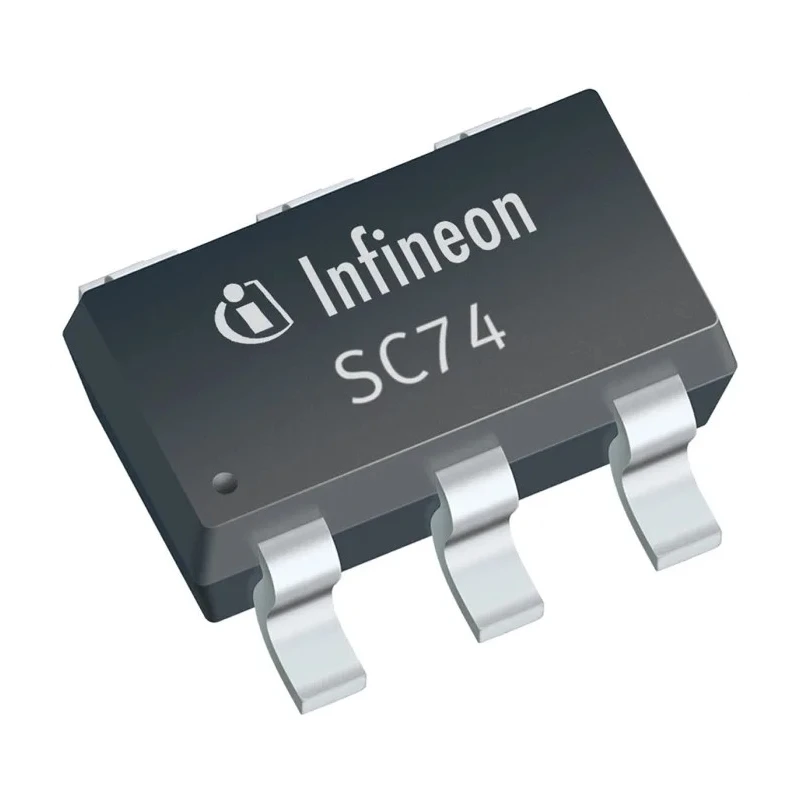

Infineon 5-Element Uni-Directional TVS Diode, SC-74 Package, Surface Mount, 5.5V, 6A, 6-Pin ESD5V5U5ULCE6327HTSA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 0.95mm |
| Length | 2.9mm |
| Model | ESD5V5U5ULCE6327HTSA1 |
| Width | 1.6mm |
| Mount Type | Surface |
| Series | ESD |
| Maximum Operating Temperature | 125°C |
| Package Type | SC-74 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 6 |
| Number of Elements per Chip | 5 |
| Clamping Voltage VC | 9.2V |
| Diode Configuration | Complex Array |
| Direction Type | Uni-Directional |
| Maximum Reverse Stand-off Voltage Vwm | 5.5V |
| Maximum Peak Pulse Current Ippm | 6A |
| Maximum Reverse Leakage Current | 100nA |
Key Features
- Provides efficient transient voltage suppression for sensitive electronic circuits.
- Features surface mount SC-74 package with 6-pin configuration for easy integration.
- Clamping voltage of 9.2V and reverse stand-off voltage of 5.5V ensure reliable operation.
- Maximum peak pulse current of 6A protects against overvoltage events.
- Operating temperature range from -40°C to 125°C offers high reliability.
- Complex array diode configuration enhances ESD protection.
- Automotive standard compliance is not required for this component.
Product Description
Infineon ESD5V5U5ULCE6327HTSA1 is a highly reliable 5-element uni-directional transient voltage suppression (TVS) diode ideal for protecting electronic circuits against electrostatic discharge and voltage transients. With its advanced complex array configuration and robust surface mount SC-74 package, this diode delivers exceptional performance in demanding environments.
Key features include a maximum reverse stand-off voltage of 5.5V, clamping voltage of 9.2V, and peak pulse current handling up to 6A, making it suitable for applications where high-speed ESD protection is critical. The 6-pin configuration allows for efficient integration into printed circuit boards, aiding compact electronic design.
Provides efficient transient voltage suppression for sensitive electronic circuits. Features surface mount SC-74 package with 6-pin configuration for easy integration. Clamping voltage of 9.2V and reverse stand-off voltage of 5.5V ensure reliable operation.
Maximum peak pulse current of 6A protects against overvoltage events. Operating temperature range from -40°C to 125°C offers high reliability. Complex array diode configuration enhances ESD protection. Automotive standard compliance is not required for this component.
Compact dimensions: 2.9mm length, 1.6mm width, 0.95mm height.
ESD5V5U5ULCE6327HTSA1 is widely used in electronics manufacturing, consumer electronics, industrial automation, and where robust protection against electrostatic discharge is required. The diode is RoHS compliant and works reliably over a wide temperature range, ensuring longevity in both commercial and industrial environments.
Its compact footprint allows for efficient PCB layout, contributing to miniaturized designs in contemporary applications. Applications include mobile devices, embedded systems, interface protection, and signal line safeguarding.
With Infineon's proven semiconductor quality, ESD5V5U5ULCE6327HTSA1 delivers on performance and reliability for a wide spectrum of electronics and semiconductor industry needs. Discover more TVS Diodes and protection solutions from Infineon in the Semiconductor category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse stand-off voltage of this diode is 5.5V.
The clamping voltage for this model is 9.2V.
It can handle a maximum peak pulse current of 6A.
The operating temperature range is from -40°C to 125°C.
This diode comes in a surface mount SC-74 package.
It has a 6-pin configuration.
The dimensions are 0.95mm in height, 2.9mm in length, and 1.6mm in width.
It uses a complex array diode configuration for enhanced performance.
Yes, this model is RoHS compliant.
It is suitable for applications in mobile devices, embedded systems, and interface protection.
The maximum reverse leakage current is 100nA.
The country of origin for this diode is India.
