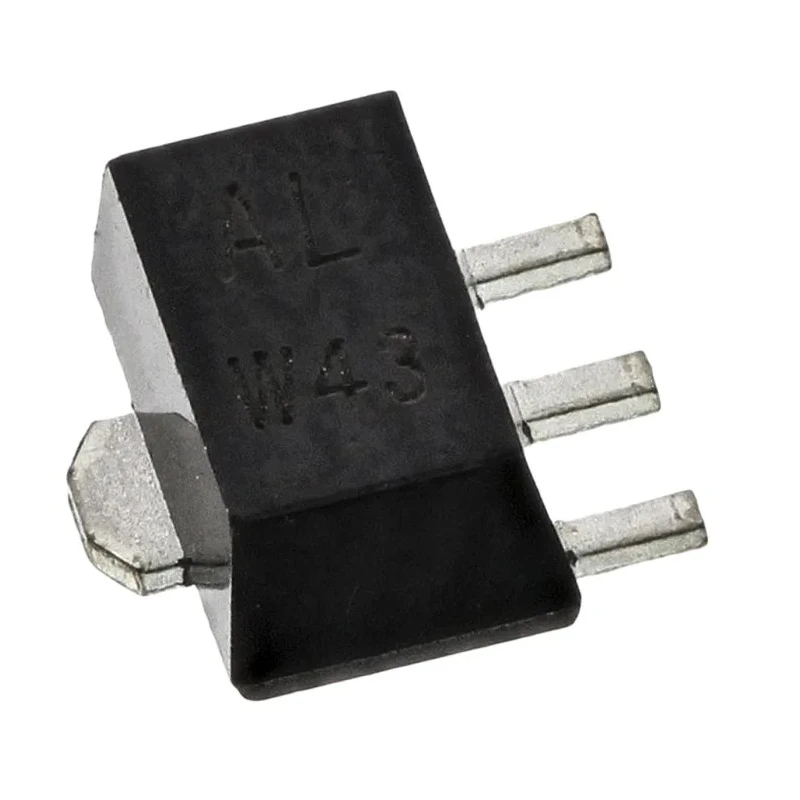

Nexperia PNP Bipolar Transistor BCX53-16,115 1A 80V 1.3W Surface Mount, 4-Pin UPAK

Name: Nexperia PNP Bipolar Transistor BCX53-16,115 1A 80V 1.3W Surface Mount, 4-Pin UPAK
Brand: Nexperia
SKU: 90037
Price: 0.13 USD
Availability: InStock



Category Bipolar Transistors Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1.6mm
Length	4.9mm
Model	BCX53-16,115
Width	2.6mm
Mount Type	Surface
Series	BCX53
Maximum Operating Temperature	150°C
Package Type	UPAK
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS
Pin Count	4
Maximum Collector Emitter Voltage Vceo	-80V
Minimum DC Current Gain hFE	40
Transistor Polarity	PNP
Maximum Emitter Base Voltage VEBO	5V
Maximum Collector Base Voltage VCBO	100V
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	1.3W
Maximum DC Collector Current Idc	-1A
Transistor Configuration	Single
Maximum Transition Frequency ft	145MHz
Diodes Inc Transistor, -500 mA PNP, -400 V, 3-Pin SOT-89Brand	DiodesZetex

Key Features

PNP bipolar transistor suitable for general purpose signal amplification and switching.
Maximum collector current of 1A and collector-emitter voltage up to 80V.
Surface mount UPAK package with 4 pins for efficient PCB integration.
Maximum power dissipation of 1.3W enables robust performance.
Automotive AEC-Q101 rated for reliability in demanding environments.
Minimum DC current gain of 40 ensures signal amplification efficiency.
Wide operating temperature range from -55°C to 150°C.
RoHS compliant for safety and environmental standards.

Product Description

Nexperia BCX53-16,115 is a high-performance PNP bipolar transistor, designed for efficient signal amplification and switching tasks in a wide variety of electronic circuits. This transistor features a 1A maximum DC collector current and a 80V maximum collector-emitter voltage, making it ideal for applications that require robust power handling in a compact footprint. The UPAK surface mount package with 4 pins enables straightforward soldering onto PCBs, reducing space requirements and facilitating high-density circuit designs.

Its automotive AEC-Q101 standard ensures durability and reliability, suitable for automotive, industrial, and demanding commercial uses.

Technical highlights include a minimum DC current gain (hFE) of 40, maximum transition frequency (ft) of 145MHz for fast switching, and a versatile operating temperature range from -55°C to 150°C. The transistor configuration is single, making it easy to implement in circuits where precise and stable operation is crucial. The device is RoHS compliant, meeting international safety and environmental regulations.

PNP polarity suitable for general-purpose electronic designs. Maximum collector base voltage of 100V and emitter base voltage of 5V for circuit protection. Dimensions: Length 4.9mm, Width 2.6mm, Height 1.6mm. Reliable surface mount construction improves circuit performance and longevity.

AEC-Q101 automotive qualification facilitates use in vehicle electronics.

This transistor finds application in industrial signal switching, audio circuits, control systems, and automotive electronics. It is widely used in manufacturing, laboratory, and advanced commercial electronic assemblies due to its compact size and reliable characteristics.

End users benefit from a trusted brand, robust specifications, and compatibility with international standards. BCX53-16,115 offers flexibility for designers in PCB layouts and suits all environments requiring efficient electronic switching and amplification.
