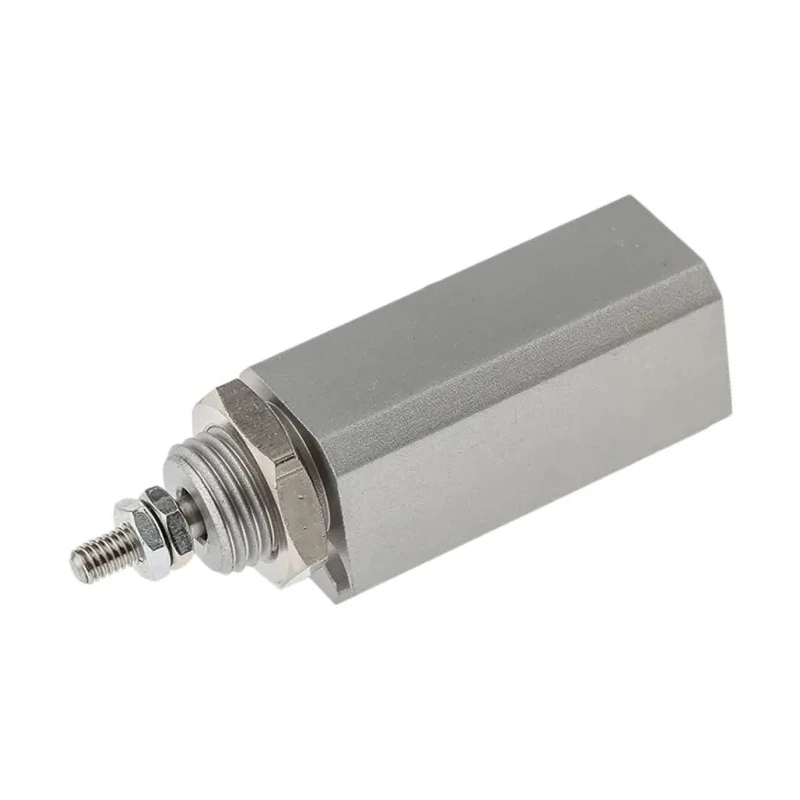

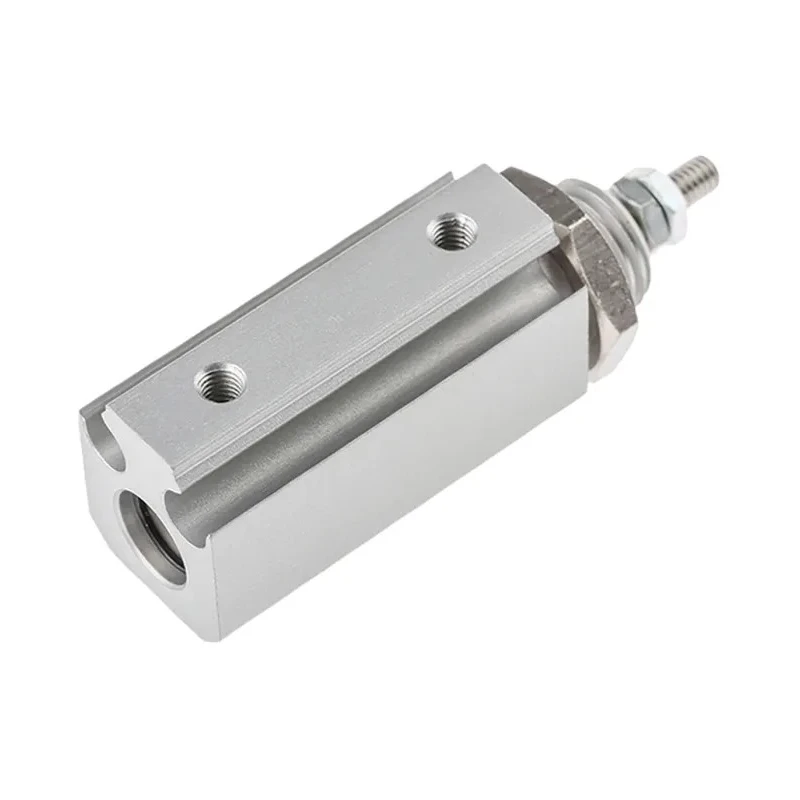

SMC Pneumatic Piston Rod Cylinder, 10 mm Bore, 10 mm Stroke, Double Acting, Panel Mount, Aluminium Body CDJP2

The SMC CDJP2B6-10D Pneumatic Piston Rod Cylinder is engineered to deliver reliable pneumatic actuation in demanding industrial applications. Designed with a 10 mm bore and a 10 mm stroke, this compact cylinder suits machinery and automation systems where space and precise motion control are essential. The double acting operation enables bidirectional movement, providing enhanced force control and operational flexibility.

Its panel mount configuration simplifies integration into control cabinets and production lines, ensuring stability and ease of access. The aluminium body design offers excellent corrosion resistance, lightweight structure, and durability, contributing to a longer service life in harsh operating environments. Rubber bumpers at both ends serve as cushioning, absorbing impact and minimizing vibration during actuation, improving operational smoothness and reducing mechanical wear.

The male-threaded rod end is engineered for compatibility with standard metric mounting options, facilitating easy connection to external mechanical components or fixtures. The cylinder operates efficiently, supporting piston speeds up to 500 mm/s, proof pressures up to 1.05 bar, and a wide operating pressure range of 0.6 to 7 bar, making it suitable for high-speed and heavy-duty tasks. The magnetic piston configuration allows for sensor-facilitated position feedback, enabling integration with automated systems and providing enhanced process control.

Temperature tolerance from -10°C to +60°C ensures the cylinder’s suitability for use in environments with fluctuating ambient or fluid conditions. Stroke tolerance (+1.0 mm, -0 mm) guarantees precision in motion and repeatability. Lubrication is not required, reducing maintenance complexity and cost. The IP67 rating highlights the cylinder’s resistance to dust and water, supporting use in rugged industrial settings.

With its compact footprint, robust material properties, and reliable performance characteristics, the SMC CDJP2B6-10D meets applications across industrial automation, manufacturing lines, material handling, packaging, robotics, and fluid control systems. Panel mount installation streamlines the setup, while aluminium construction and rubber cushioning maximize both durability and safety.
