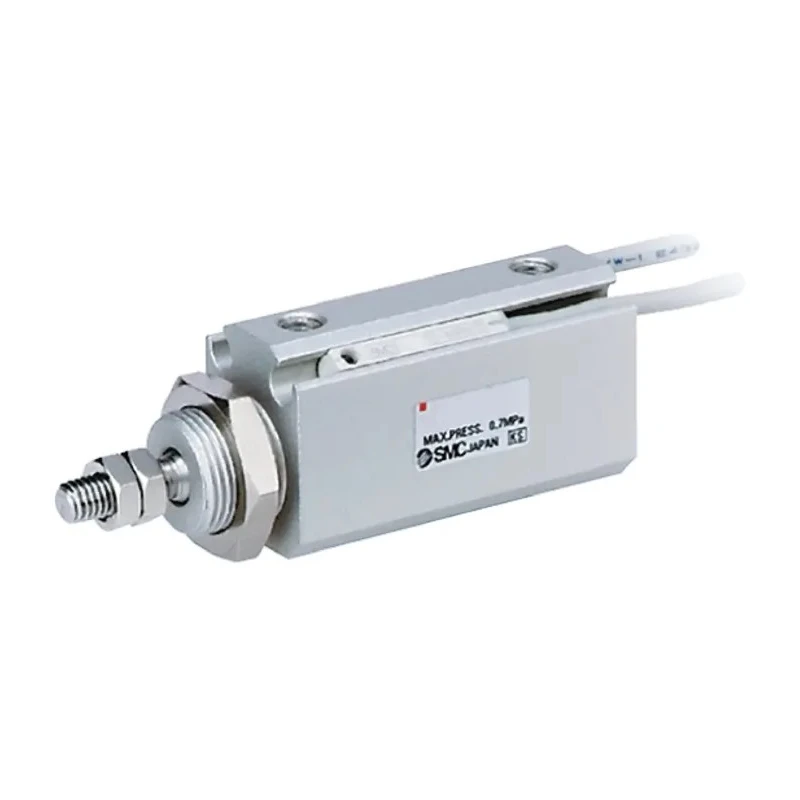

SMC Pneumatic Piston Rod Cylinder Double Acting Panel Mount Aluminium, 10mm Bore, 10mm Stroke CDJP2

SMC CDJP2B10-10D is a high-performance pneumatic piston rod cylinder designed for industrial automation, robotics, and machine control systems requiring precise motion and compact build. With a 10mm bore and 10mm stroke, this cylinder provides controlled linear movement in process equipment and machinery.

The double acting configuration allows force to be applied in both directions, improving versatility and cycle efficiency in pneumatic setups. Its panel mount design facilitates secure and straightforward installation, while the robust aluminium body offers excellent durability and resistance to corrosion in demanding industrial environments.

This cylinder features a rubber cushion at both ends of the stroke, which enables smooth stopping and reduces impact during operation. The cylinder’s male-threaded rod end with metric thread standard makes it easy to integrate into various mechanical assemblies and automation platforms.

The operating pressure range from 0.6 to 7 bar meets a wide array of pneumatic systems, and ambient/fluid temperature compatibility between -10°C and +60°C means the unit is suitable for diverse industrial conditions. Maximum allowed operating temperature is 70°C. An integrated magnetic piston is standard, allowing for easy position sensing and advanced automation with compatible sensors.

Additional technical highlights include single rod type, panel mounting, and a compact overall length of 49.5mm. The IP67 rating further protects the cylinder against dust and water ingress, supporting installation in harsh or washdown areas. Lubrication is not required, minimizing maintenance needs and making it suitable for systems with frequent cycling or extended duty.

This SMC pneumatic cylinder finds widespread application in manufacturing automation, packaging machinery, laboratory equipment, robotics, and specialized sectors such as HVAC and water treatment. It is ideal for precision control tasks, actuator replacement, and integration within custom industrial solutions.

The CDJP2B10-10D model is part of SMC's CDJP2 Series, known for its compact design, robust construction, and reliable operation. To explore more industrial Pneumatic Cylinders for specific requirements, browse SMC products and EnvMart's Hydraulic & Pneumatic Tools category.
