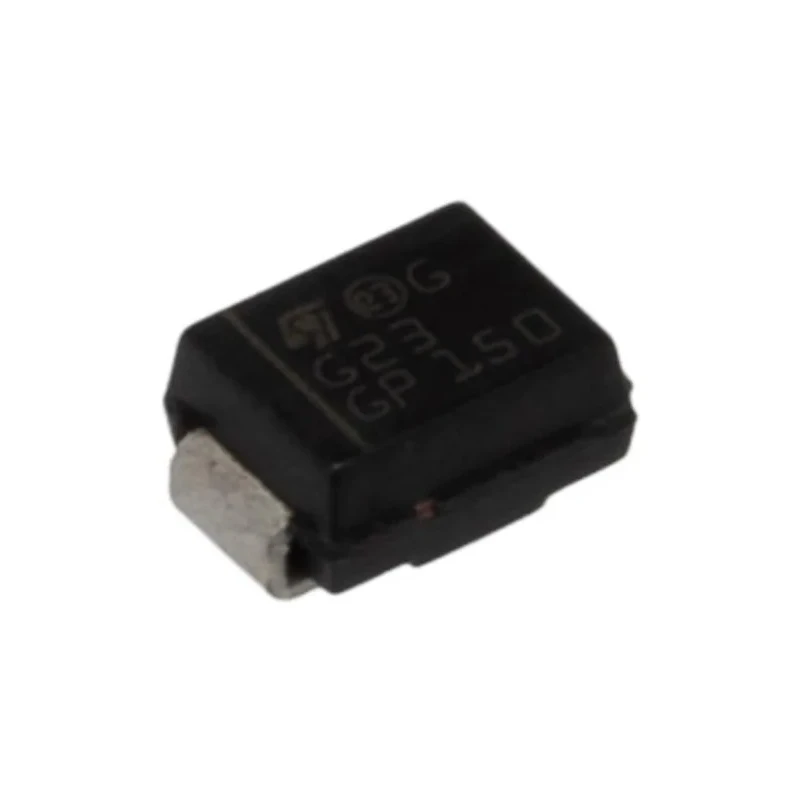

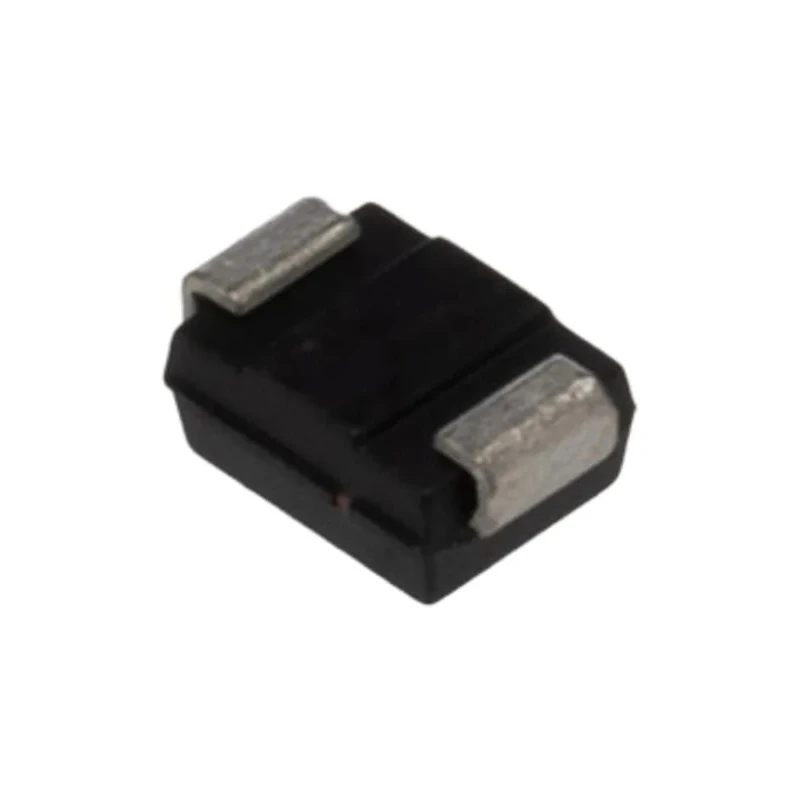

STMicroelectronics Schottky Barrier Diode, 25V, 2A, Surface Mount, DO-214AA, 2-Pin, STPS2L25U

Name: STMicroelectronics Schottky Barrier Diode, 25V, 2A, Surface Mount, DO-214AA, 2-Pin, STPS2L25U
Brand: STMicroelectronics
SKU: 85937
Price: 20.22 USD
Availability: InStock



Category Schottky Diode Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	2.45mm
Length	4.6mm
Model	STPS2L25U
Width	3.95mm
Mount Type	Surface
Series	STPS2L25
Maximum Operating Temperature	150°C
Package Type	DO-214AA
Minimum Operating Temperature	-65°C
Pin Count	2
Maximum Continuous Forward Current If	2A
Peak Reverse Repetitive Voltage Vrrm	25V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	90μA
Peak Non-Repetitive Forward Surge Current Ifsm	75A
Maximum Forward Voltage Vf	0.33V

Key Features

Operates with a maximum reverse repetitive voltage of 25V.
Supports a continuous forward current of 2A for reliable performance.
Features a surface-mount DO-214AA package with 2-pin configuration.
Schottky barrier construction enables low forward voltage drop of 0.33V and fast switching.
Allows for high surge current handling up to 75A.
Suitable for a wide temperature range, from -65°C to +150°C.
Ideal for industrial, automotive (non-compliant), and consumer electronic applications.

Product Description

The STMicroelectronics STPS2L25U is a Schottky barrier rectifier diode designed for efficient power conversion and fast switching in surface-mount electronic circuits. With a maximum reverse repetitive voltage of 25V and a continuous forward current rating of 2A, this diode meets the needs of a wide range of industrial and commercial designs.

It features a robust DO-214AA package with a dual-pin surface-mount configuration, making it suitable for automated PCB assembly and high-volume production environments. The Schottky construction ensures a low forward voltage drop of 0.33V, leading to improved energy efficiency and reduced heat generation.

The STPS2L25U diode is engineered to handle surge currents up to 75A, providing resilience during transient loads and power-up conditions. Its maximum reverse current is limited to 90μA, ensuring minimal leakage and maintaining circuit stability.

Operating reliably across a wide temperature range, from -65°C to +150°C, the diode meets demanding standards required for industrial electronics, power supplies, battery protection, and consumer devices. Its physical size - 4.6mm × 3.95mm × 2.45mm - enables space-saving designs in even the most compact enclosures.

This diode is not qualified for automotive standards but finds use in industrial equipment, laboratory instrumentation, consumer electronics, and power management circuitry. It is part of the STPS2L25 series, recognized for quality and consistent performance.

Maximum repetitive reverse voltage of 25V for circuit protection. Continuous forward current of 2A, with peak surge handling of 75A. Low forward voltage drop minimizes power losses in rectification. Surface-mount DO-214AA package for efficient assembly and miniaturization.

Minimal reverse leakage under typical operating conditions. Wide operating temperature range supports robust industrial and laboratory environments. Not compliant with automotive industry standards; recommended for general-purpose and industrial use.

Compact form factor allows integration into dense PCB layouts. Explore more STMicroelectronics products and Schottky Diodes for advanced electronic applications in the EnvMart catalog.
