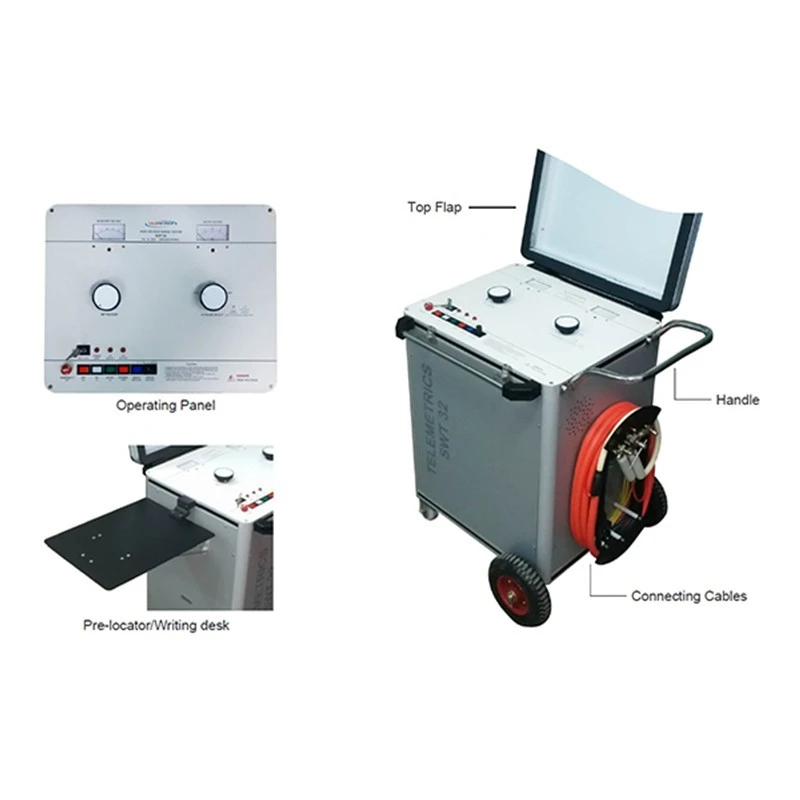

Motwane SWT 32 High Voltage Surge Tester
Specifications
| Country of Origin | India |
|---|---|
| Brand | Motwane |
| Power Supply | 230V AC + 10% / 50 Hz / Single Phase |
| Applications | Pin-point underground cable fault location (acoustic mode) |
| Model | SWT 32 |
| Wheels | Big Rubber Wheels |
| Voltage Ranges | 8kV / 16kV / 32kV (continuously variable) |
| Surge Energy (Standard) | 1000 Joules |
| Surge Energy (Optional) | 2000 Joules |
| Pre-location Modes | ICM (with pre-locator) / SIM (with arc reflection filter) |
| Network Suitability | HT Network 33kV |
| Impulse Modes | Single Impulse / 1.5s / 3s / 6s intervals |
| Foldable Desk | Yes |
| Cable Bracket | Yes |
| Dust Protection | Top Flap |
| Outer Structure | Aluminum Extrusion |
| Safety Interlocks | Variac / HV Switch / HV Output (with indicators) |
Key Features
- Pin-point location of cable faults in Low, Medium and High voltage cables by acoustic method.
- Output voltage selectable ranges 8kV,16kV,32kV continuously variable.
- High energy of 1000 Joules at each range (Optional 2000J).
- Full energy delivering capacity at each select range.
- Single Impulse and 1.5, 3 & 6 seconds intervals Sequence.
- Pre-location of cable fault distance with suitable pre-locator unit in ICM mode.
- Easy to connect with arc reflection filter and pre-locate fault distance in SIM mode.
- Foldable Pre-locator desk for placing the pre-locator when use and also use as a writing desk.
- Cable bracket for wound the cable for easy use.
- Top Flap for protect from dust.
- Aluminum Extrusion for use outer structure.
- Big Rubber wheel for easy to carry on site.
- Safety interlocks indication for Variac, HV switch & HV Output.
- Power Supply 230V AC + 10%, 50 Hz, Single phase.
- HT Network 33kV.
Product Description
This device is designed for pinpointing underground cable faults in power transmission and distribution networks using acoustic methods. It features selectable output voltage ranges of 8kV, 16kV, and 32kV, which are continuously variable, and delivers high energy of 1000 Joules per range (with an optional 2000J). The device supports single impulse and sequence intervals of 1.5, 3, and 6 seconds.
It facilitates pre-location of cable fault distances in ICM mode with a suitable pre-locator unit and in SIM mode with an arc reflection filter. The device includes a foldable pre-locator desk, a cable bracket for easy cable management, and a top flap for dust protection. Its outer structure is made of aluminum extrusion, and it features large rubber wheels for easy transport on-site. Safety interlocks with indicators are provided for the Variac, HV switch, and HV output.
The device operates on a 230V AC power supply and is suitable for HT Network 33kV applications.
Available on EnvMart, these Voltage Detectors are designed for quick and reliable voltage presence detection in electrical systems. Motwane Voltage Detectors offer high precision and safety, making them essential for electricians, maintenance professionals, and industrial applications.
