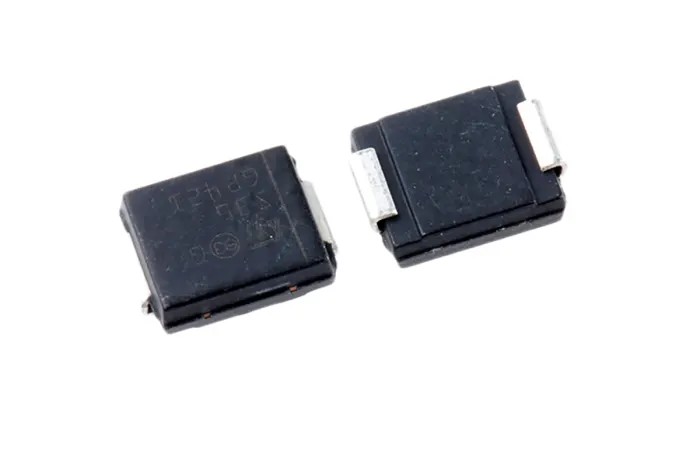

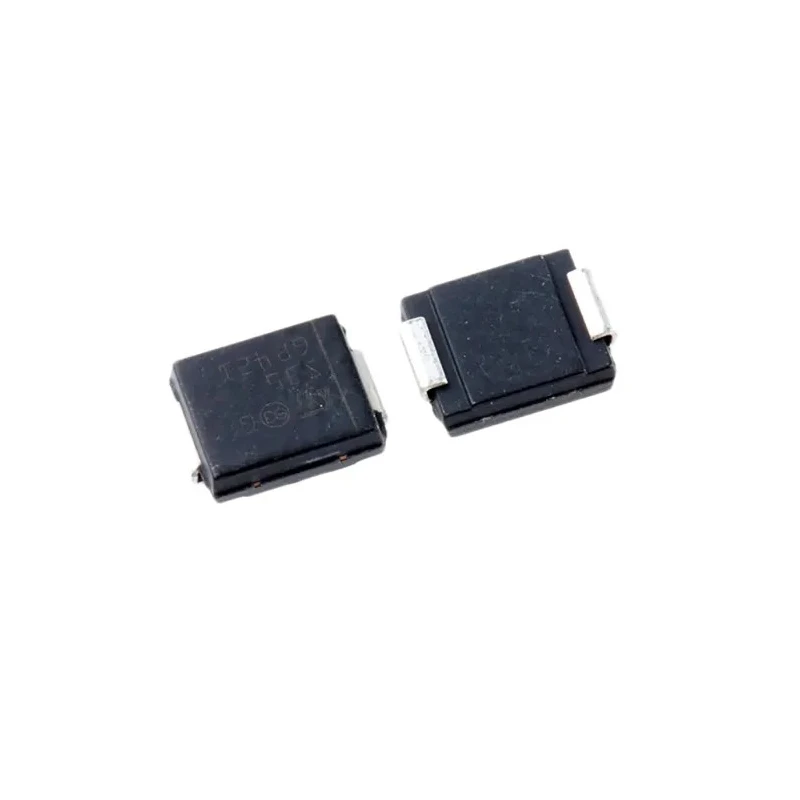

STMicroelectronics Schottky Barrier Diode, 60V, 3A, Surface Mount, DO-214AA, 2-Pin, STPS3L60S
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 2.45mm |
| Length | 7.15mm |
| Model | STPS3L60S |
| Width | 6.25mm |
| Mount Type | Surface |
| Series | STPS3L60S |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 55μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 75A |
| Maximum Forward Voltage Vf | 0.56V |
Key Features
- Features a single Schottky rectifier configuration for high efficiency.
- Maximum continuous forward current of 3A supports medium power circuits.
- Peak reverse repetitive voltage is rated at 60V for robust protection.
- Surface mount DO-214AA package ensures reliable PCB integration.
- Low maximum forward voltage of 0.56V minimizes conduction losses.
- Operates from -65°C to 150°C, suitable for demanding environments.
- Peak non-repetitive forward surge current of 75A provides overload capability.
Product Description
STMicroelectronics STPS3L60S is a single Schottky diode optimized for power management, switching, and rectification applications. With a maximum rating of 60V and 3A continuous forward current, this device is characterized by its efficiency, low voltage drop, and high surge capability. It is particularly suitable for industrial power supplies, automotive modules, and general electronics that demand fast switching and minimal power loss.
The DO-214AA package is a surface-mounted design, allowing easy integration into automated PCB assembly lines and compact layouts. Its low forward voltage of 0.56V ensures reduced heat generation, improving performance and reliability in power-sensitive environments. The device features a peak non-repetitive forward surge current of 75A, enabling it to withstand momentary overloads during startup or switching transients without damage.
Engineered to operate within a wide industrial temperature range from -65°C up to 150°C, the STPS3L60S supports reliable operation across varied conditions, making it suitable for industrial, automotive, and commercial electronics. With reverse leakage current limited to 55μA, the diode maintains low standby losses, contributing to overall energy efficiency.
The device is housed in a compact DO-214AA package with dimensions of 7.15mm length, 6.25mm width, and 2.45mm height, facilitating space-constrained applications. The 2-pin layout offers straightforward circuit integration, and with its Schottky barrier construction, the diode achieves rapid switching times, ideal for high-frequency applications.
STMicroelectronics' STPS3L60S finds applications in switch-mode power supplies, DC-DC converters, polarity protection, freewheeling in motor drives, and other circuits requiring reliable and efficient rectification. Its robust design and proven reliability make it a preferred choice for industrial, laboratory, and commercial equipment manufacturers.
Explore the full range of Schottky Diodes and rectifiers on EnvMart and discover products from STMicroelectronics for your power management needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 3A.
The maximum forward voltage is 0.56V, which helps minimize conduction losses.
It operates within a temperature range of -65°C to 150°C, suitable for demanding environments.
The diode is housed in a DO-214AA package, designed for surface mounting.
The dimensions are 7.15mm in length, 6.25mm in width, and 2.45mm in height.
The peak non-repetitive forward surge current is rated at 75A, allowing it to withstand momentary overloads.
It features a single Schottky rectifier configuration, optimized for efficiency.
It has a 2-pin layout, facilitating straightforward circuit integration.
The low maximum forward voltage of 0.56V reduces heat generation, improving performance in power-sensitive applications.
