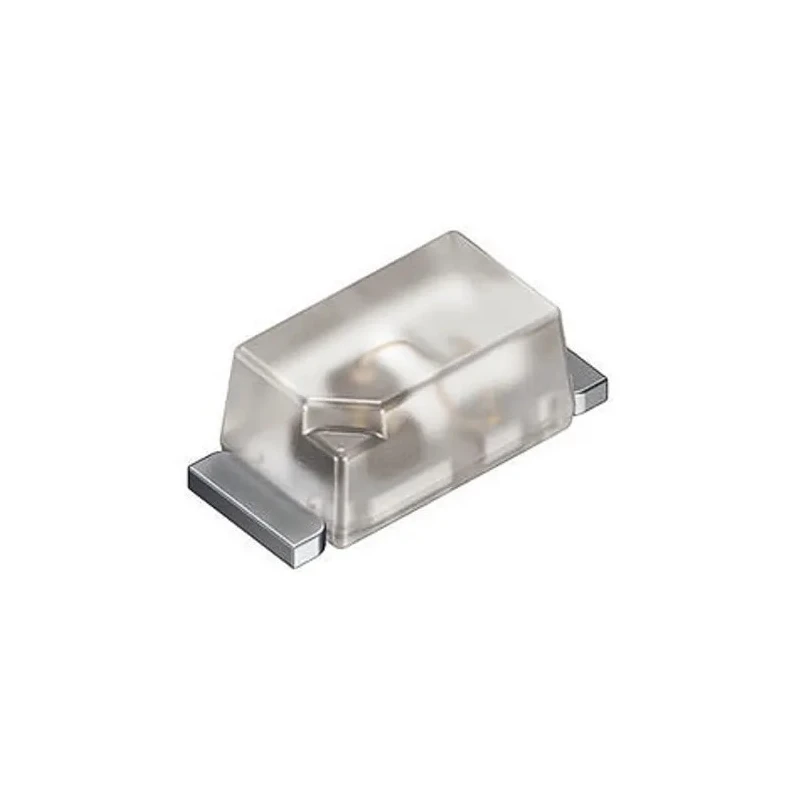

ams OSRAM 2V Red LED Surface Mount, 0603 Package, SmartLED LS L296-P2Q2-1

Free Delivery in India | Lowest Global Shipping Charges

ams OSRAM 2V Red LED Surface Mount, 0603 Package, SmartLED LS L296-P2Q2-1

Name: ams OSRAM 2V Red LED Surface Mount, 0603 Package, SmartLED LS L296-P2Q2-1
Brand: ams OSRAM
SKU: 85358



Category LEDs - Light Emitting Diodes Brand ams OSRAM Condition New

Specifications

Country of Origin	India
Brand	ams OSRAM
Model	LS L296-P2Q2-1
Packaging	Tape & Reel
Mount Type	Surface
Series	SmartLED
Maximum forward current	60mA
Viewing angle	160 °
Package Type	0603
Standards/Approvals	RoHS
LED Colour	Red
Dominant Wavelength	633nm
Forward Voltage	2V
Number of Pins	2
LED Luminosity	112 mcd
Lens Dimensions	1.3 x 0.8 mm
Lens Shape	Rectangular
LED Luminous Flux	0.32 lm

Key Features

Surface mount LED with industry standard 0603 package for compact installation.
Operates at a forward voltage of 2V with a maximum forward current of 60mA.
Red LED delivers a dominant wavelength of 633nm and luminosity of 112mcd for visible signaling.
Rectangular clear lens with 160° viewing angle provides wide output distribution.
Compliant with RoHS standards, suitable for backlighting, display, signal, and marker lighting.
Tape & reel packaging ensures efficient automated manufacturing and handling.
SmartLED series guarantees reliability and consistent performance for electronic and industrial applications.
2-pin configuration enables straightforward board integration.

Product Description

The ams OSRAM LS L296-P2Q2-1 is a surface mount red LED from the SmartLED series, engineered for high reliability and efficiency in electronic and industrial applications. Featuring an industry standard 0603 package, this LED component is designed for compact surface mounting, making it ideal for space-constrained electronic assemblies.

It operates at a forward voltage of 2V and supports a maximum forward current of 60mA, ensuring low power consumption and robust luminous output. The LED emits a clear, bright red light at a dominant wavelength of 633nm with a luminosity of 112mcd, suitable for display backlighting, signal and symbol illumination, and floor marker lighting. Its 160° wide viewing angle allows for broad light distribution, making it effective in array configurations and panel indicators.

The lens shape is rectangular and finished in clear, further contributing to uniform output characteristics. With lens dimensions of 1.3 x 0.8 mm, the component fits seamlessly onto modern PCB layouts. The SmartLED LS L296-P2Q2-1 is RoHS compliant, making it suitable for environmentally responsible manufacturing and applications where regulatory standards are mandatory.

Provided in tape & reel packaging, it supports automated electronic manufacturing processes, reducing installation time and improving production efficiency. The surface mount format and 2-pin configuration allow for straightforward integration into circuit boards for both commercial and industrial projects.

This model is not designed specifically to meet automotive standards but delivers performance suitable for outdoor displays, display backlighting, signal and symbol illumination, and floor marker lighting. Its reliability and robust build enable use across diverse sectors, including industrial, laboratory, commercial, and manufacturing environments.

Browse more products from ams OSRAM and explore LEDs - Light Emitting Diodes for advanced optoelectronic solutions on EnvMart.
