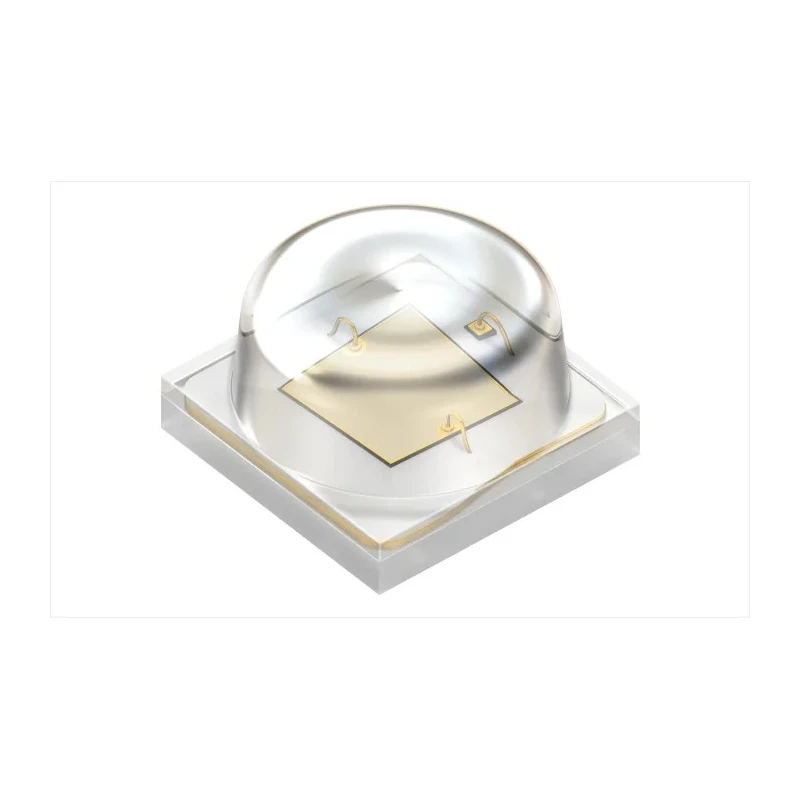

ams OSRAM 2.3 V Red High Power SMT Ceramic Surface Mount LED OSLON Square GF CSBPM2.24-2T4T-1-1-350-R33

Free Delivery in India | Lowest Global Shipping Charges

ams OSRAM 2.3 V Red High Power SMT Ceramic Surface Mount LED OSLON Square GF CSBPM2.24-2T4T-1-1-350-R33

Name: ams OSRAM 2.3 V Red High Power SMT Ceramic Surface Mount LED OSLON Square GF CSBPM2.24-2T4T-1-1-350-R33
Brand: ams OSRAM
SKU: 423231
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand ams OSRAM Condition New

Specifications

Country of Origin	China
Brand	ams OSRAM
Model	GF CSBPM2.24-2T4T-1-1-350-R33
Packaging	Tape & Reel
Mount Type	Surface
Series	OSLON Square
Maximum forward current	1000mA
Viewing angle	140 °
Package Type	SMT Ceramic
Standards/Approvals	RoHS
LED Colour	Red
Forward Voltage	2.3V
Number of Pins	2
Lens Dimensions	2.7 x 1.86 mm
Lens Shape	Round
Radiant Flux	typ. 383 mW
Radiant Efficiency	typ. 56 %

Key Features

This LED supports a maximum forward current of 1000 mA.
Packaged as a Surface Mount Technology (SMT) ceramic device with a silicone lens.
Features a round lens shape with dimensions 2.7 x 1.86 mm and a wide 140° viewing angle.
Typical radiant flux output is 383 mW with a radiant efficiency of 56%.
Designed for high efficiency and long lifetime in applications such as architecture and horticulture lighting.
RoHS compliant and corrosion robust with an ESD withstand voltage of 8 kV.
Package supplied on tape and reel with 2 pins and surface mount compatibility.

Product Description

ams OSRAM GF CSBPM2.24-2T4T-1-1-350-R33 is a high power red LED featuring a 2.3 V forward voltage designed in a SMT ceramic surface mount package. This OSLON Square series LED is engineered for superior robustness, high reliability, and a long operational lifetime, making it suitable for demanding industrial and commercial applications.

The LED is supplied in a ceramic SMT package with a silicone lens, offering excellent thermal management and mechanical stability. Its round lens with dimensions of 2.7 x 1.86 mm provides a wide 140° viewing angle ensuring effective light distribution. The device supports a maximum forward current of 1000 mA, delivering a typical radiant flux of 383 mW and radiant efficiency of approximately 56%.

This high power LED is ideal for architectural lighting and horticultural applications where high efficiency and durability are crucial. It complies with RoHS standards and offers corrosion robustness class 3B, along with an ESD withstand voltage rating of 8 kV (HBM, ANSI/ESDA/JEDEC JS-001, Class 3B), ensuring protection against electrostatic discharge damage.

The product is packaged on tape and reel, facilitating automated assembly in manufacturing. This red high power LED is designed for surface mount installation, featuring two pins for easy integration into circuit boards.

This LED guarantees high luminous efficacy and extended operational lifetime. Surface mount ceramic package enhances thermal and mechanical performance. Wide viewing angle supports versatile lighting design requirements.

ESD robustness and RoHS compliance ensure reliability and environmental safety. Perfectly suited for applications including architectural, horticultural, and industrial lighting. Explore more high-quality LEDs at EnvMart to fulfill your electronic component needs with confidence and quality assurance.
