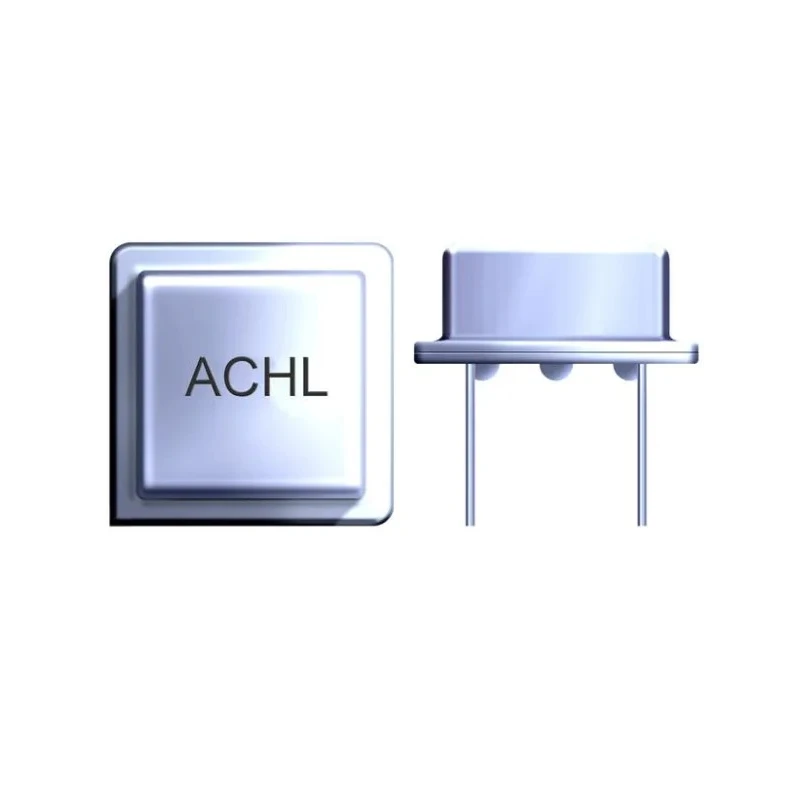

Abracon 27MHz Clock Oscillator Crystal Oscillator TTL HCMOS DIP-8 ACHL-27.000MHZ-EK
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 5.5mm |
| Length | 13.2mm |
| Model | ACHL-27.000MHZ-EK |
| Packaging | 40 pieces per Tube |
| Width | 13.2mm |
| Series | ACHL |
| Maximum Operating Temperature | 70°C |
| Output Frequency | 27MHz |
| Package Type | DIP-8 |
| Minimum Operating Temperature | 0°C |
| Standards/Approvals | ISO9001:2008 |
| Maximum Supply Voltage | 3.63V |
| Minimum Supply Voltage | 2.97V |
| Load Capacitance | 15pF |
| Oscillator Type | Clock Oscillator |
| Output Level | TTL, HCMOS |
| ISO9001 | 2008 |
| Standards/ApprovalsISO9001 | 2008 |
Key Features
- Operating frequency of 27MHz for digital timing applications.
- TTL and HCMOS output levels suitable for various logic families.
- Low supply voltage operation between 2.97V and 3.63V.
- Operating temperature range from 0°C to 70°C for industrial usage.
- Packaged in DIP-8 for easy PCB mounting and integration.
- Load capacitance of 15pF matching standard crystal oscillator requirements.
- Tight symmetry option of 50% ±5% for waveform integrity.
- Available in tubes of 40 pieces for volume applications.
Product Description
Abracon ACHL-27.000MHZ-EK is a high-performance 27MHz clock oscillator crystal oscillator designed for generating accurate clock signals required in digital chips and microprocessors. Its low voltage specification and compatibility with TTL and HCMOS output levels make it suitable for low power and diverse electronic applications.
The oscillator features a frequency stability between -100 to 100 ppm and operates within a temperature range of 0°C to 70°C, making it reliable in various industrial and commercial environments. The package type is DIP-8, measuring 13.2mm by 13.2mm in length and width, with a height of 5.5mm, facilitating convenient PCB mounting.
This model provides a load capacitance of 15pF and offers a tri-state enable/disable option with tight symmetry output of 50% ±5%, ensuring waveform and signal quality. The oscillator supports a supply voltage range from 2.97V up to 3.63V, ideal for modern low voltage circuit designs. It complies with ISO9001:2008 quality standards, ensuring manufacturing reliability and consistency.
The product is packaged in tubes containing 40 units, suitable for batch assembly and manufacturing processes. Typical use cases include industrial electronics, digital control systems, telecommunications, computing equipment, and other applications requiring clock signal sources.
Operating frequency of 27MHz for digital timing applications. Frequency stability ranging from -100 to 100 ppm ensuring signal accuracy. TTL and HCMOS output levels suitable for various logic families. Low supply voltage operation between 2.97V and 3.63V.
Operating temperature range from 0°C to 70°C for industrial usage. Packaged in DIP-8 for easy PCB mounting and integration. Load capacitance of 15pF matching standard crystal oscillator requirements. Tight symmetry option of 50% ±5% for waveform integrity.
Compliant with ISO9001:2008 quality standards. Available in tubes of 40 pieces for volume applications.
This Abracon oscillator is ideal for precise clocking applications in industrial, laboratory, electronics manufacturing, telecommunications, and computing fields. Browse the Electronics Components category at EnvMart for related Crystal Oscillators and clock signal devices.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output frequency of this model is 27MHz, designed for digital timing applications.
It operates within a supply voltage range of 2.97V to 3.63V, making it suitable for low voltage circuit designs.
The operating temperature range for this unit is from 0°C to 70°C, suitable for various industrial applications.
This model has a load capacitance of 15pF, which matches standard crystal oscillator requirements.
It provides TTL and HCMOS output levels, making it compatible with various logic families.
The oscillator is packaged in a DIP-8 format, with dimensions of 13.2mm x 13.2mm and a height of 5.5mm.
The frequency stability of this oscillator ranges from -100 to 100 ppm, ensuring signal accuracy.
It is packaged in tubes containing 40 pieces each, suitable for volume applications.
This model complies with ISO9001:2008 quality standards, ensuring manufacturing reliability.
It is suitable for applications in industrial electronics, digital control systems, telecommunications, and computing equipment.
Yes, it offers a tri-state enable/disable option along with a tight symmetry output of 50% ±5%.
The country of origin for this model is India.
