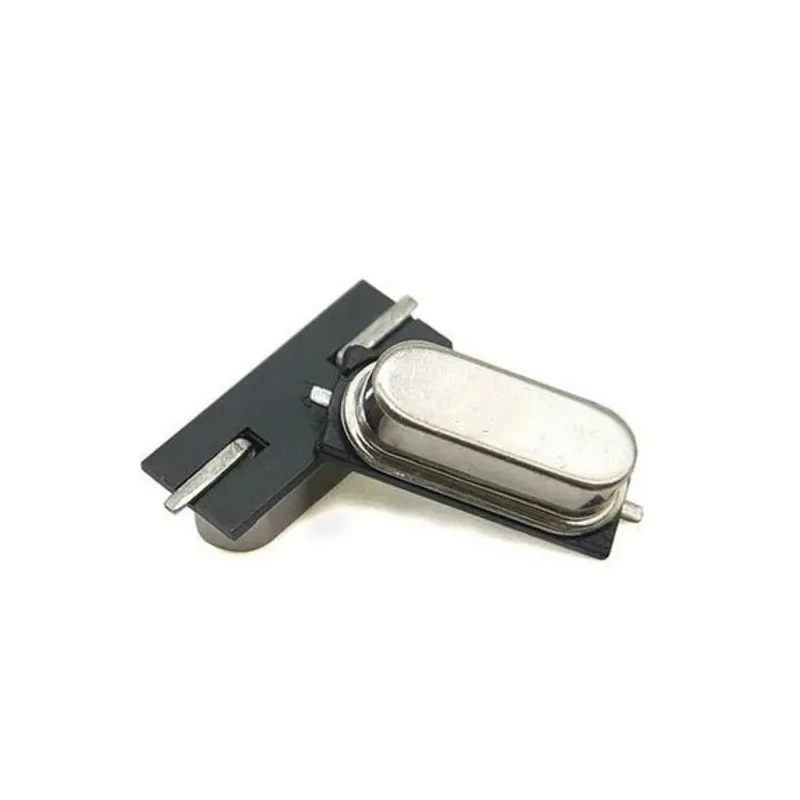

ILSI 16 MHz Crystal Unit ±30 ppm SMD Surface Mount 2-Pin 4.5 mm Height 13.3 mm Length 4.73 mm Width HC49USM-FB5F20-16.000MHz

The ILSI HC49USM-FB5F20-16.000MHz is a precision Crystal Unit designed for high-frequency oscillator applications with a frequency of 16 MHz and a tolerance of ±30 ppm. It comes in a compact surface mount device (SMD) package, measuring 13.3 mm in length, 4.73 mm in width, and 4.5 mm in height with two pins for easy PCB mounting.

Engineered for stable operation, the crystal operates reliably across a wide temperature range from -40°C to 85°C, making it suitable for diverse industrial and commercial electronic applications.

The unit features a load capacitance of 20 pF and a series resistance of 40Ω, which supports low-noise and stable frequency generation for communication systems including fiber channel servers, SONET/SDH, and wireless applications such as Wi-Fi (802.11).

This product is RoHS compliant, assuring users of its environmental safety standards. Packaging on tape and reel ensures compatibility with high-speed automated assembly lines. This crystal unit features a compact SMD surface mount package.

It has 2 pins suitable for surface mounting on printed circuit boards. Dimensions are 13.3 mm length, 4.73 mm width, and 4.5 mm height. Operating temperature range spans from -40°C to 85°C ensuring reliable performance. Load capacitance is nominally 20 pF, compatible with various oscillator circuits.

The device conforms to RoHS standards for environmental compliance. It is ideal for use in fiber channel servers, storage systems, SONET/SDH networks, and Wi-Fi technologies. The crystal unit is supplied in a tape and reel packaging format for automated assembly processes.

Manufactured in China under the HC49USM series, this component does not conform to automotive standards.

This crystal unit from ILSI is suitable for a wide range of industrial electronic applications including telecommunications, networking, and embedded systems requiring precise timing references. Browse more Crystal Units and related components on EnvMart for your specific industrial electronic needs.
