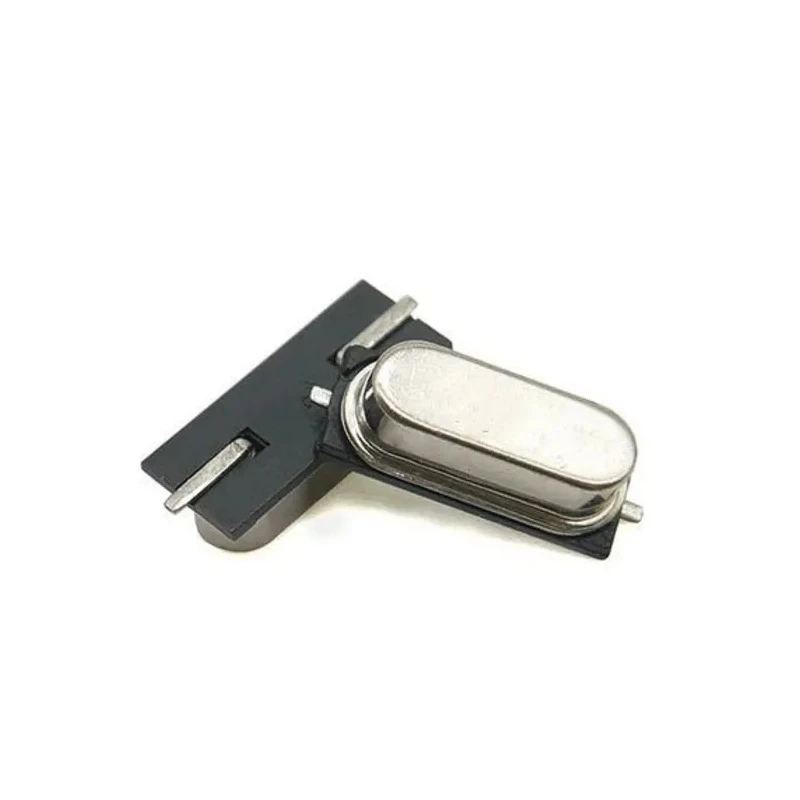

ILSI 12 MHz Crystal Unit Surface Mount Device Tape & Reel 2-Pin ±30 ppm 13.3x4.73x4.5 mm HC49USM-FB1FT22-12.000MHz
Specifications
| Country of Origin | China |
|---|---|
| Brand | ILSI |
| Height | 4.5mm |
| Length | 13.3mm |
| Model | HC49USM-FB1FT22-12.000MHz |
| Packaging | Tape & Reel |
| Width | 4.73mm |
| Mount Type | Surface |
| Series | HC49USM |
| Maximum Operating Temperature | 70°C |
| Package Type | SMD |
| Minimum Operating Temperature | 0°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Standard Frequency | 12MHz |
| Load Capacitance | 22pF |
| Series Resistance | 60Ω |
Key Features
- This surface mount device offers stable oscillation for accurate frequency control.
- Operating temperature ranges from 0°C to 70°C suitable for diverse electronic applications.
- Compact SMD package dimensions are 13.3 mm length, 4.73 mm width, and 4.5 mm height ensuring easy PCB integration.
- Low series resistance of 60 Ω enhances performance in high-frequency circuits.
- Compliance with RoHS ensures environmentally responsible manufacturing.
- Packaged in tape & reel format facilitating automated assembly processes.
- Ideal for fiber channel servers, storage systems, 802.11/Wi-Fi components, and telecommunication applications.
- Pin count of 2 provides straightforward connectivity on circuit boards.
Product Description
ILSI HC49USM-FB1FT22-12.000MHz 12 MHz Crystal Unit is a precision electronic component designed for surface mounting with a small outline package suitable for modern electronics manufacturing. This crystal unit operates at a standard frequency of 12 MHz with a frequency tolerance of ±30 ppm and frequency stability within ±50 ppm, providing dependable timing references for various electronic circuits.
Its compact size of 13.3 mm in length, 4.73 mm in width, and 4.5 mm in height enables easy installation on printed circuit boards with limited space. The device features a load capacitance of 22 pF and a low series resistance of 60 Ω, optimizing signal quality and energy efficiency.
Operating effectively in temperatures ranging from 0°C to 70°C, this SMD crystal unit is suited for industrial, telecommunications, computing, and networking systems. The product is RoHS compliant, adhering to environmental standards for hazardous substances.
The HC49USM series crystal units are commonly used in fiber channel servers, storage devices, SONET/SDH equipment, Wi-Fi modules, and T1/E1, T3/E3 system clocks, offering reliable oscillation performance critical to system stability.
This crystal unit offers precise frequency output at 12 MHz. Surface mount device format designed for integration into automated manufacturing assembly lines. Durable operating temperature range from 0°C to 70°C. Low equivalent series resistance enhances signal integrity.
RoHS certification ensures compliance with environmental safety standards. Available in tape and reel packaging for efficient manufacturing logistics. Compact dimensions optimize PCB board space usage. Pin count of 2 simplifies integration into electronic circuits.
Overall, this ILSI crystal unit combines accuracy, compactness, and reliability suitable for a wide range of industrial and commercial electronic applications. Explore additional Crystal Unit options and related components within the Electronics Components category at EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 12 MHz, providing a precise timing reference for electronic circuits.
This model has dimensions of 13.3 mm in length, 4.73 mm in width, and 4.5 mm in height, making it suitable for compact PCB integration.
The operating temperature range for this crystal unit is from 0°C to 70°C, allowing it to function effectively in various environments.
The load capacitance of this model is 22 pF, which helps optimize its performance in electronic applications.
This unit features a pin count of 2, facilitating straightforward connectivity on circuit boards.
The series resistance of this model is 60 Ω, enhancing its performance in high-frequency circuits.
It is packaged in a tape and reel format, which facilitates automated assembly processes in manufacturing.
Yes, this crystal unit is RoHS compliant, adhering to environmental standards for hazardous substances.
This model is suitable for applications in fiber channel servers, storage systems, Wi-Fi components, and telecommunications.
This crystal unit uses a surface mount type, designed for easy integration into modern electronic devices.
This model belongs to the HC49US series, known for its reliability in providing stable oscillation performance.
The frequency tolerance of this model is ±30 ppm, ensuring accurate frequency control in various applications.
