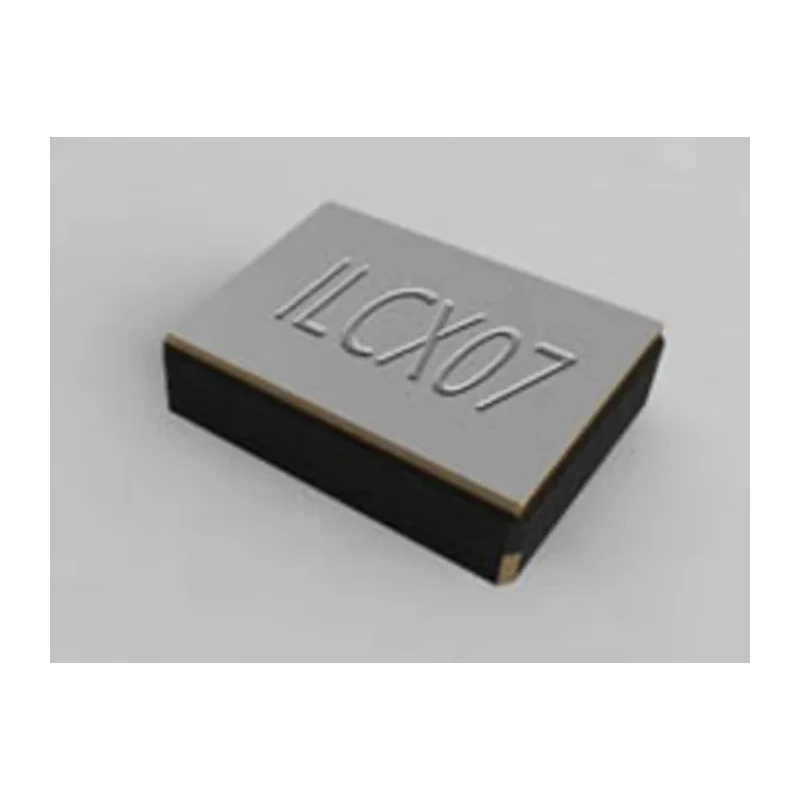

ILSI 24 MHz Crystal Unit ±30 ppm Surface Mount SMD 4-Pin 5 x 3.2 x 1 mm ILCX07-FF3F18-24.000MHz
Specifications
| Country of Origin | China |
|---|---|
| Brand | ILSI |
| Height | 1mm |
| Length | 5mm |
| Model | ILCX07-FF3F18-24.000MHz |
| Packaging | Tape & Reel |
| Width | 3.2mm |
| Mount Type | Surface |
| Series | ILCX07 |
| Maximum Operating Temperature | 70°C |
| Package Type | SMD |
| Minimum Operating Temperature | -20°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Standard Frequency | 24MHz |
| Load Capacitance | 18pF |
| Series Resistance | 30Ω |
Key Features
- Standard frequency of 24 MHz suitable for precision timing applications.
- Surface mount package type with dimensions 5 mm length, 3.2 mm width, and 1 mm height.
- Operational temperature range from -20°C to +70°C for reliability in varied environments.
- Load capacitance of 18 pF compatible with common circuit requirements.
- RoHS compliant product made in China.
- Low series resistance of 30 Ω to reduce signal loss and power consumption.
- Packaged in tape and reel format facilitating automated assembly processes.
Product Description
ILSI ILCX07-FF3F18-24.000MHz Crystal Unit is a surface mount device designed for high frequency precision applications requiring stable oscillation at 24 MHz. This 4-pin SMD crystal unit features a compact footprint with dimensions 5 mm in length, 3.2 mm width, and 1 mm height, making it ideal for space-constrained electronic designs.
The Crystal Unit offers a frequency tolerance and stability of ±30 ppm, supporting reliable frequency consistency over its operational temperature range of -20°C to +70°C. Its load capacitance is specified at 18 pF, paired with a low series resistance of 30 Ω to ensure quality oscillation performance while minimizing power loss.
Manufactured under RoHS standards, this product supports environmentally compliant electronic assembly processes. The device is packaged in a tape and reel format, suitable for high volume automated placement in manufacturing lines.
This crystal is commonly used in fiber channel servers and storage, SONET/SDH communications, 802.11/Wi-Fi applications, and timing circuits such as T1/E1 and T3/E3 systems. Its stable and precise frequency characteristics make it suitable for industrial, telecommunications, and computing equipment.
The ILCX07 series ensures dependable performance across a wide temperature range, meeting demanding industrial and commercial applications where frequency accuracy and component reliability are critical.
Standard frequency of 24 MHz suitable for precision timing applications. Surface mount package with compact SMD dimensions. Frequency tolerance and stability of ±30 ppm for signal precision. Operational temperature range from -20°C to +70°C for broad usability.
Load capacitance of 18 pF and low series resistance of 30 Ω. RoHS compliant and manufactured in China. Tape and reel packaging for automated assembly. Explore more precision electronic components and crystals in the Electronics Components category on EnvMart to meet your industrial and laboratory requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 24 MHz, suitable for precision timing applications.
This model has dimensions of 5 mm in length, 3.2 mm in width, and 1 mm in height.
The operational temperature range for this unit is from -20°C to +70°C, allowing for reliability in varied environments.
The load capacitance of this crystal unit is specified at 18 pF, compatible with common circuit requirements.
It features a low series resistance of 30 Ω, which helps reduce signal loss and power consumption.
The crystal unit is packaged in a tape and reel format, facilitating automated assembly processes.
This unit supports surface mount (SMD) installation, making it suitable for space-constrained electronic designs.
This product is RoHS compliant, supporting environmentally friendly electronic assembly processes.
This model has a pin count of 4, which is typical for surface mount devices.
It is commonly used in fiber channel servers, storage, SONET/SDH communications, and timing circuits such as T1/E1 and T3/E3 systems.
This crystal unit belongs to the ILCX07 series, designed for high frequency precision applications.
The frequency tolerance and stability of this model is ±30 ppm, supporting reliable frequency consistency.
