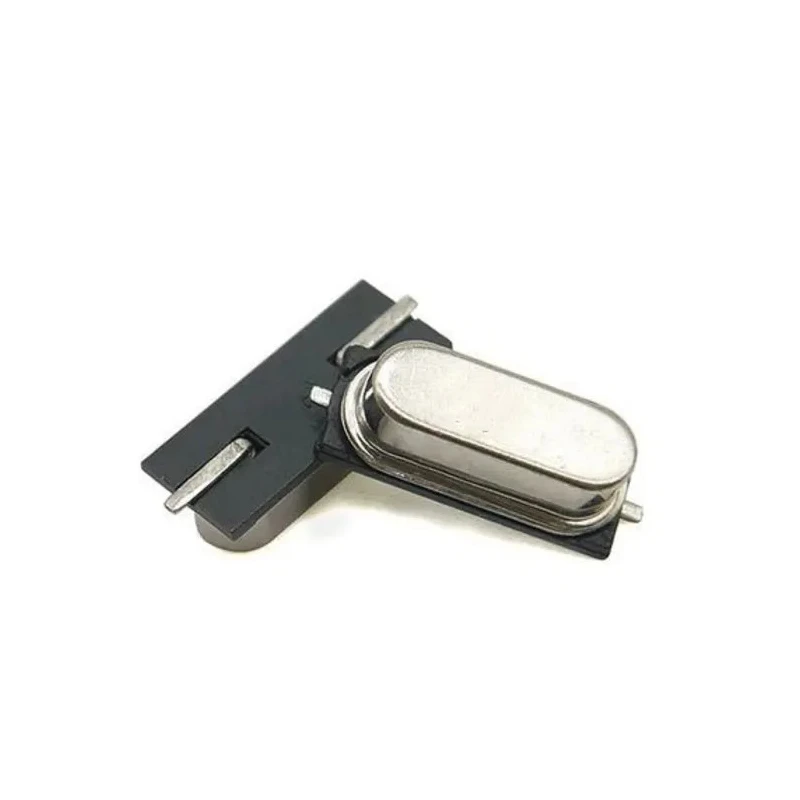

ILSI 24 MHz Crystal Unit Surface Mount Device SMD 2-Pin 13.3 mm x 4.73 mm x 4.5 mm ±30 ppm HC49USM-FF5F18-24.000MHz
Specifications
| Country of Origin | China |
|---|---|
| Brand | ILSI |
| Height | 4.5mm |
| Length | 13.3mm |
| Model | HC49USM-FF5F18-24.000MHz |
| Packaging | Tape & Reel |
| Width | 4.73mm |
| Mount Type | Surface |
| Series | HC49USM |
| Maximum Operating Temperature | 85°C |
| Package Type | SMD |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Standard Frequency | 24MHz |
| Load Capacitance | 18pF |
| Series Resistance | 60Ω |
Key Features
- This crystal unit features a frequency tolerance and stability of ±30 ppm for precise timing.
- It comes in a compact SMD package with dimensions 13.3 mm length, 4.73 mm width, and 4.5 mm height.
- Designed for robust operation with a temperature range from -40°C to +85°C.
- Load capacitance is 18 pF with a series resistance of 60 Ω for low-loss performance.
- The product is RoHS compliant and suitable for lead-free processing applications.
- Typical applications include fiber channel servers, SONET/SDH systems, Wi-Fi and 802.11 wireless equipment, and system clocks for telecommunications.
Product Description
ILSI HC49USM-FF5F18-24.000MHz crystal unit is a high-quality surface mount device (SMD) designed for electronic components applications requiring stable frequency generation at 24 MHz. This crystal unit operates with a frequency tolerance and stability of ±30 ppm, ensuring accurate and reliable oscillation in various industrial and telecommunications uses.
The device is housed in a compact SMD package measuring 13.3 mm in length, 4.73 mm in width, and 4.5 mm in height, making it suitable for space-constrained PCB layouts. It features a load capacitance of 18 pF and a low series resistance of 60 Ω, contributing to efficient signal integrity and minimal loss.
Operating temperature range spans from -40°C to +85°C, allowing usage in demanding environmental conditions common in industrial, telecommunications, and consumer wireless equipment. The crystal unit complies with RoHS standards and is compatible with lead-free soldering processes, supporting environmentally conscious manufacturing.
This product is ideal for applications in fiber channel servers, SONET/SDH networks, IEEE 802.11 Wi-Fi devices, T1/E1, and T3/E3 telecommunications gear, serving as a dependable system clock source with excellent frequency precision.
This crystal unit features a frequency tolerance and stability of ±30 ppm for precise timing. It comes in a compact SMD package with dimensions 13.3 mm length, 4.73 mm width, and 4.5 mm height. Designed for robust operation with a temperature range from -40°C to +85°C.
Load capacitance is 18 pF with a series resistance of 60 Ω for low-loss performance. The product is RoHS compliant and suitable for lead-free processing applications. Typical applications include fiber channel servers, SONET/SDH systems, Wi-Fi and 802.11 wireless equipment, and system clocks for telecommunications.
Explore additional electronic components and Crystal Units at EnvMart for your industrial and laboratory projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The frequency tolerance and stability of this crystal unit is ±30 ppm, ensuring accurate timing for various applications.
This model has dimensions of 13.3 mm in length, 4.73 mm in width, and 4.5 mm in height, making it suitable for compact PCB layouts.
The load capacitance of this crystal unit is 18 pF, which contributes to its efficient signal integrity.
It features a low series resistance of 60 Ω, which helps in achieving low-loss performance.
The operating temperature range spans from -40°C to +85°C, allowing it to function in demanding environmental conditions.
Yes, this crystal unit is RoHS compliant, making it suitable for lead-free processing applications.
This model has a pin count of 2, designed for surface mount applications.
It is packaged in tape and reel format, which is convenient for automated assembly processes.
Typical applications include fiber channel servers, SONET/SDH systems, Wi-Fi and 802.11 wireless equipment, and system clocks for telecommunications.
This model is designed for surface mount (SMD) applications, making it suitable for compact electronic designs.
The standard frequency of this crystal unit is 24 MHz, which is essential for various timing applications.
The country of origin for this crystal unit is China.
