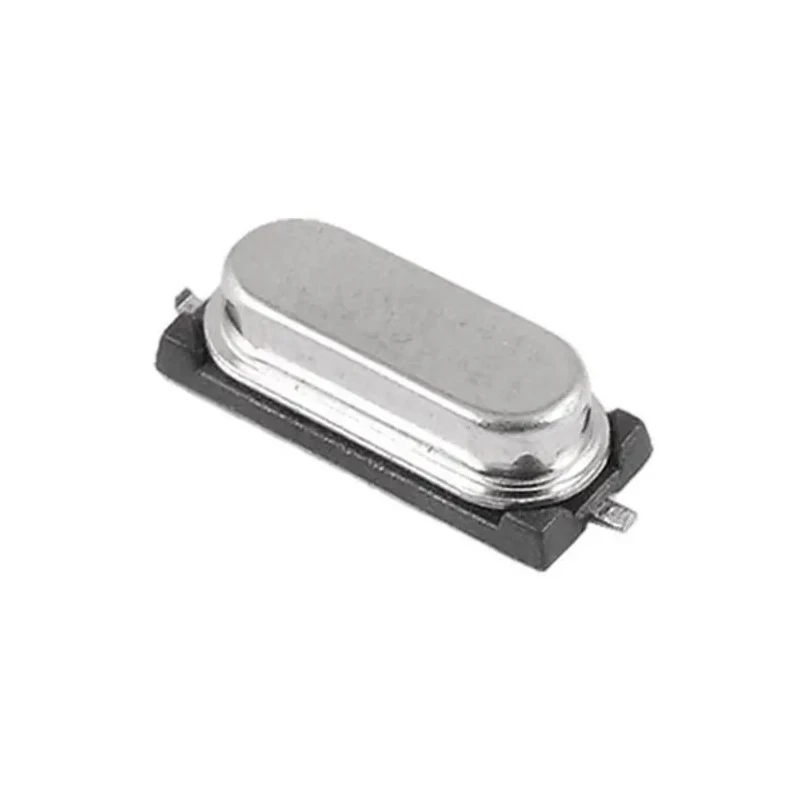

ILSI 14.7456 MHz Crystal Unit ±50 ppm SMD 2-Pin 4.5 mm Height 13.3 mm Length 4.73 mm Width HC49USM-BA3FT20-14.7456MHz
Specifications
| Country of Origin | China |
|---|---|
| Brand | ILSI |
| Height | 4.5mm |
| Length | 13.3mm |
| Model | HC49USM-BA3FT20-14.7456MHz |
| Packaging | Tape & Reel |
| Width | 4.73mm |
| Mount Type | Surface |
| Series | HC49USM |
| Maximum Operating Temperature | 70°C |
| Package Type | SMD |
| Minimum Operating Temperature | -20°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Standard Frequency | 14.7456MHz |
| Load Capacitance | 20pF |
| Series Resistance | 40Ω |
Key Features
- Standard frequency of 14.7456 MHz ensures reliable timing applications.
- SMD package with 2 pins for compact surface mount on PCBs.
- Load capacitance rating of 20 pF suitable for electronic oscillators.
- Operating temperature range from -20°C to 70°C for versatility.
- Low series resistance of 40Ω enhances signal quality and efficiency.
- Complies with RoHS standards ensuring environmental safety.
Product Description
The ILSI HC49USM-BA3FT20-14.7456MHz Crystal Unit is a precision electronic component designed for use in surface-mount technology applications. Offering a stable standard frequency of 14.7456 MHz with a frequency tolerance of ±50 ppm, it provides consistent performance critical for timing circuits and oscillators. The compact SMD package features 2 pins, measuring 13.3 mm in length, 4.73 mm in width, and 4.5 mm in height, facilitating easy integration into printed circuit boards (PCBs).
Operating efficiently within a temperature range of -20°C to 70°C, this crystal unit is well suited for a wide array of electronic equipment, including fiber channel servers, storage systems, SONET/SDH communications, and 802.11 Wi-Fi applications. Its load capacitance of 20 pF and low series resistance of 40Ω contribute to minimal signal loss and enhanced oscillator stability.
This crystal unit complies with RoHS standards, ensuring it meets environmental safety requirements and supports lead-free processing. Its tape & reel packaging facilitates automated assembly and manufacturing efficiency.
Standard frequency of 14.7456 MHz supports precise control in electronics. Frequency tolerance of ±50 ppm ensures accuracy under varying conditions. Surface mount device package is optimized for modern PCB designs. 20 pF load capacitance ensures compatibility with oscillator circuits.
Wide operating temperature range allows use in diverse environments. RoHS-compliant ensuring environmentally safe manufacturing. Low series resistance optimizes operational efficiency. Compact dimensions enable space-saving product design.
This crystal unit is ideal for industrial, communication, computing, and networking electronics, offering reliability and precision. Its design supports modern manufacturing demands, providing performance consistency and compliance with global regulations.
Explore more Crystal Units and components to suit your electronic design needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 14.7456 MHz, ensuring reliable timing applications.
This model measures 13.3 mm in length, 4.73 mm in width, and 4.5 mm in height.
The load capacitance rating for this crystal unit is 20 pF, making it suitable for use in electronic oscillators.
It operates efficiently within a temperature range of -20°C to 70°C, allowing for versatility in various environments.
The series resistance of this unit is 40Ω, which helps enhance signal quality and efficiency.
It is packaged in tape & reel format, facilitating automated assembly and manufacturing efficiency.
This model features 2 pins, designed for surface mount applications.
Yes, this crystal unit complies with RoHS standards, ensuring it meets environmental safety requirements.
It is suitable for a variety of applications including fiber channel servers, storage systems, SONET/SDH communications, and 802.11 Wi-Fi.
This model uses a surface mount type, optimized for modern PCB designs.
The frequency tolerance of this unit is ±50 ppm, ensuring accuracy under varying conditions.
This crystal unit belongs to the HC49US series, which is designed for precision applications.
