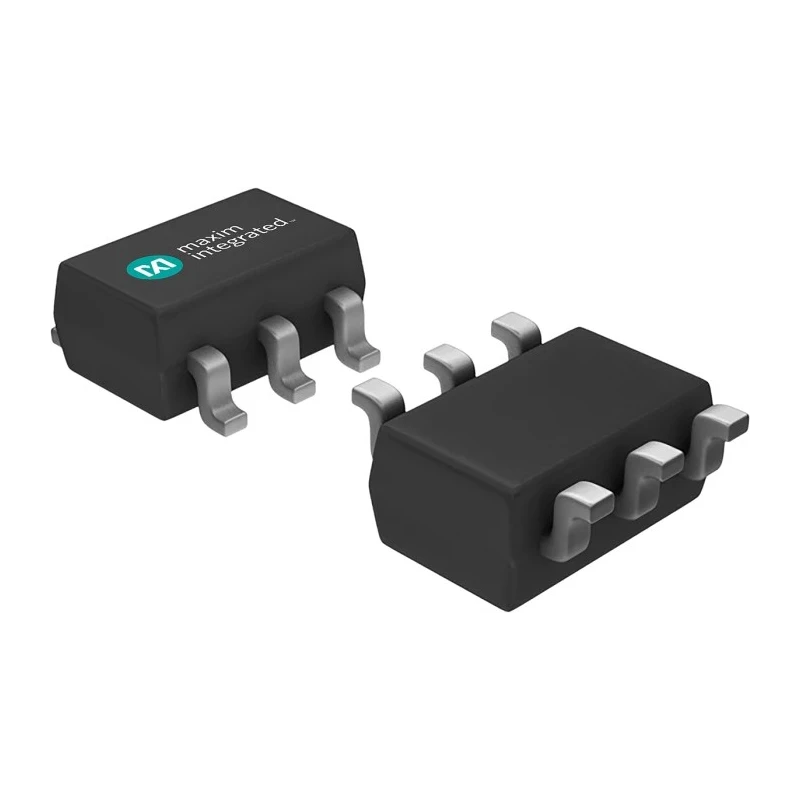

Maxim Integrated 500MHz Oscillator 6-Pin SOT-23 MAX2608EUT+T

Maxim Integrated MAX2608EUT+T Oscillator is a precision 500MHz frequency oscillator housed in a compact 6-pin SOT-23 package. Its design incorporates an integrated varactor for accurate tuning and efficient low phase noise output, making it ideal for demanding electronics applications.

The device operates over a broad temperature range of -40°C to 85°C, ensuring stable performance in various industrial and commercial environments. It requires a single supply voltage from +2.7V to +5.5V and features differential or single-ended outputs with output levels ranging from -10 dBm to -2.25 dBm, suitable for RF signal processing.

Its ultra-small form factor (height 1.3 mm) allows integration in space-constrained assembly designs. The on-chip temperature-stable bias combined with low current operation enhances energy efficiency and reliability.

The MAX2608EUT+T oscillator serves diverse applications, including but not limited to the 2.4GHz ISM band, 902MHz to 928MHz ISM band, cellular and PCS mobile communications, GPS receivers, land mobile radios, and general-purpose intermediate frequency oscillators commonly used in communication and signal processing systems.

Small size with integrated varactor for tuning. Low phase noise and stable biasing across operating temperatures. Single +2.7V to +5.5V power supply operation. 6-Pin SOT-23 ultra-small package suitable for compact designs.

Output levels from -10 to -2.25 dBm with differential or single-ended outputs. Wide commercial and industrial frequency band applications. Optimized for low current consumption and high efficiency. This oscillator is well-suited for industrial, telecommunications, consumer electronics, and embedded system applications requiring reliable frequency generation and modulation.
