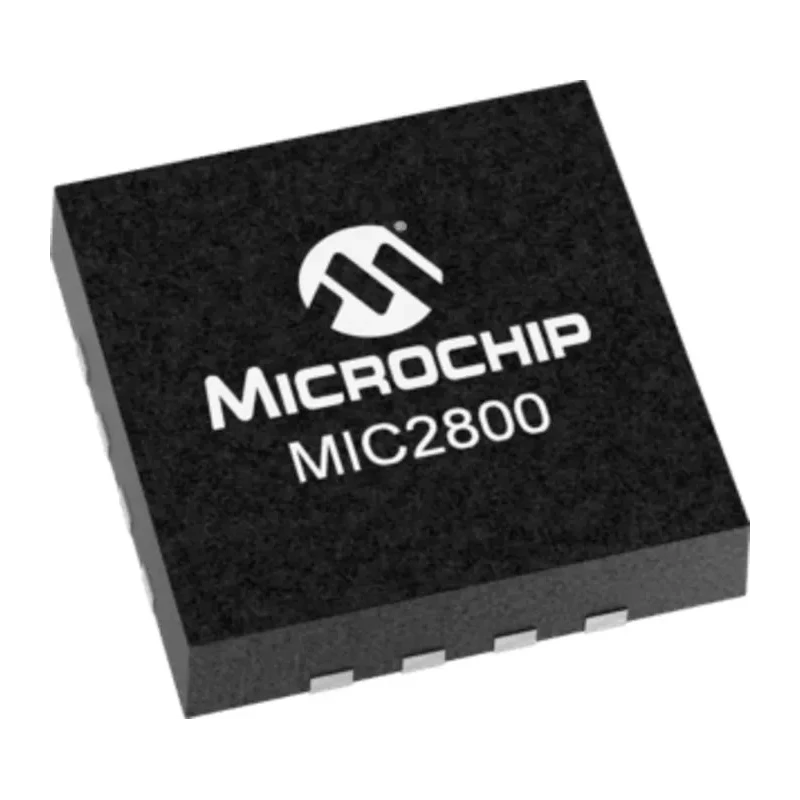

Microchip Power Management IC Voltage Controller 16-Pin 2.7V to 5.5V MIC2800-G2SYML-TR

Microchip MIC2800-G2SYML-TR is a state-of-the-art Power Management IC Voltage Controller featuring a 16-pin surface mount package. It supports a wide input voltage range from 2.7V to 5.5V, making it compatible with various electronic designs requiring flexible supply voltages.

This device integrates a 2MHz DC/DC converter alongside two standalone low dropout regulators (LDOs), enabling efficient power management and regulation for embedded systems. The DC/DC converter supports output currents up to 600mA in PWM mode, operating with greater than 90% efficiency at normal mode and exceptionally low noise in LowQ® mode at 75μVRMS output noise. LowQ® mode ensures minimal power consumption with 30μA total quiescent current, ideal for battery-powered and low-power applications.

The first LDO is powered directly from the DC/DC converter output for maximum efficiency and is optimized for voltage conversions from 1.8V down to 0.8V, delivering up to 300mA current. The second LDO also provides up to 300mA output current. Built-in features include integrated power-on reset with adjustable delay, thermal shutdown protection, and current limit safeguards to ensure robust and reliable operation under diverse conditions.

Designed specifically for embedded microprocessor and microcontroller power, portable and wearable devices, low-power RF systems, and backup power applications, this voltage controller offers versatile performance in a compact, surface-mount package with a length of 3mm and a height of 850μm.

Microchip’s MIC2800-G2SYML-TR complies with RoHS standards and is rated for operation up to 125°C maximum temperature. It is an ideal power management IC for efficient, reliable, and compact electronic designs across industrial, commercial, and consumer sectors.

Features a 2MHz DC/DC converter and two stand-alone LDOs for efficient power regulation. Operates in LowQ® mode with low output noise and minimal quiescent current. Provides integrated power-on reset and adjustable delay functionality.

Supports output currents up to 600mA and 300mA from DC/DC and LDO outputs respectively. Offers thermal shutdown and current limit protections for reliability. Suitable for embedded MPU/MCU power and portable, wearable, low-power RF applications.

Complies with RoHS and operates up to 125°C maximum temperature. Explore more Power Management ICs by Microchip at EnvMart for your advanced electronic component requirements.
