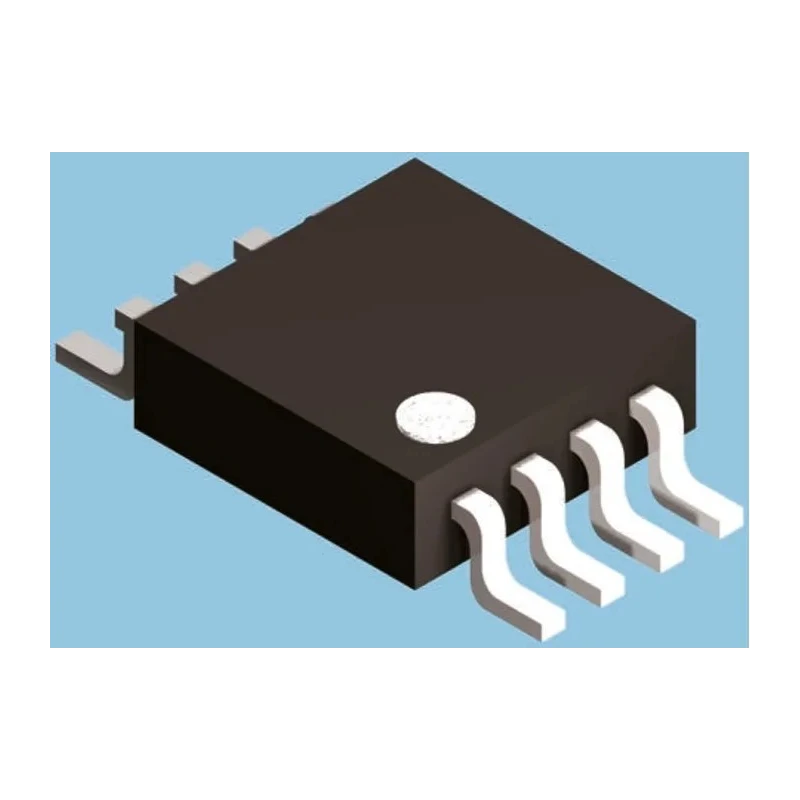

DiodesZetex DC/DC Converter Surface Mount 3.3V Output Voltage 2A Output Current AP1509-33SG-13
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Efficiency | 76% |
| Length | 4.95mm |
| Model | AP1509-33SG-13 |
| Width | 3.95mm |
| Mount Type | Surface |
| Series | AP1509-33SG |
| Output Current | 2A |
| Maximum Operating Temperature | 125°C |
| Package Type | SOP |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 22V |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 8 |
| Output Voltage 1 | 3.3V |
Key Features
- Operates efficiently with 76% efficiency for power-saving applications.
- Supports maximum input voltage of 22V and minimum input of 4.5V.
- Designed for surface mount with SOP package and 8 pins, length 4.95mm and width 3.95mm.
- Operates within temperature range -40°C to 125°C for industrial environments.
- RoHS compliant, ensuring environmentally safe manufacturing standards.
- Single output voltage supply ideal for embedded systems and power management IC applications.
Product Description
DiodesZetex AP1509-33SG-13 is a DC/DC converter designed as a compact surface mount step-down switching regulator. It provides a stable 3.3V output voltage with a maximum output current of 2A, making it ideal for powering embedded circuits, electronic components, and power supplies in various industrial and commercial applications.
This converter offers high efficiency of 76%, enabling reduced heat dissipation and improved energy savings. It supports a wide input voltage range from 4.5V up to 22V, suitable for battery-powered and regulated power supplies.
The device comes in an SOP package with 8 pins, measuring 4.95mm in length and 3.95mm in width, enabling compact PCB designs. The unit is RoHS compliant, reflecting adherence to international environmental standards.
Operating temperature range from -40°C to 125°C allows reliable use in harsh industrial, automotive, and manufacturing environments. The single output configuration supports stable powering of microcontrollers, sensors, and other DC loads.
Operates efficiently with 76% efficiency for power-saving applications. Supports maximum input voltage of 22V and minimum input voltage of 4.5V. Compact surface mount design with SOP package and 8 pins. Wide operating temperature range from -40°C up to 125°C.
RoHS compliant for environmental safety. Single 3.3V output at 2A maximum output current.
This DC/DC Converter is suitable for industrial automation, embedded electronics, telecommunications, power supply design, and other electronic manufacturing sectors. It is optimized for integration into power management IC circuits requiring reliable, low-voltage regulated outputs.
Explore more DiodesZetex voltage converter solutions and Power Management IC devices in the Electronics & Electricals category at EnvMart for enhanced industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a stable output voltage of 3.3V.
The maximum output current for this unit is 2A.
It operates with an efficiency of 76%, which helps in power-saving applications.
The converter supports a wide input voltage range from 4.5V to 22V.
This model has a length of 4.95mm and a width of 3.95mm.
It comes in an SOP package with 8 pins, designed for surface mounting.
The operating temperature range is from -40°C to 125°C, suitable for industrial environments.
Yes, this model is RoHS compliant, ensuring it meets environmental safety standards.
It features a single output configuration, ideal for powering various electronic components.
This unit is suitable for applications in industrial automation, embedded electronics, and power supply design.
The AP1509-33SG-13 adheres to RoHS standards, reflecting compliance with environmental regulations.
The country of origin for this model is China.
