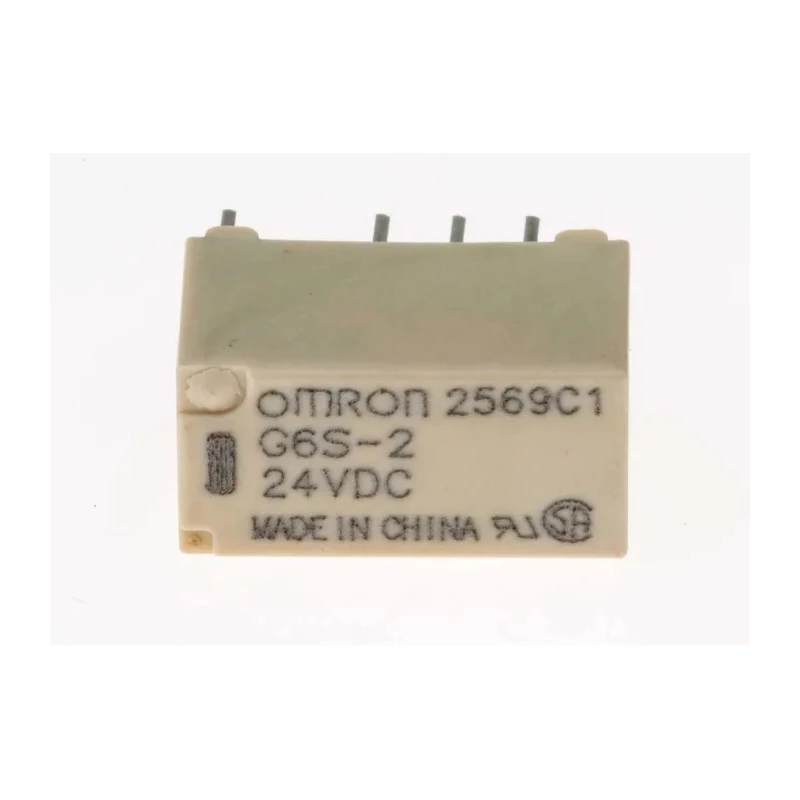

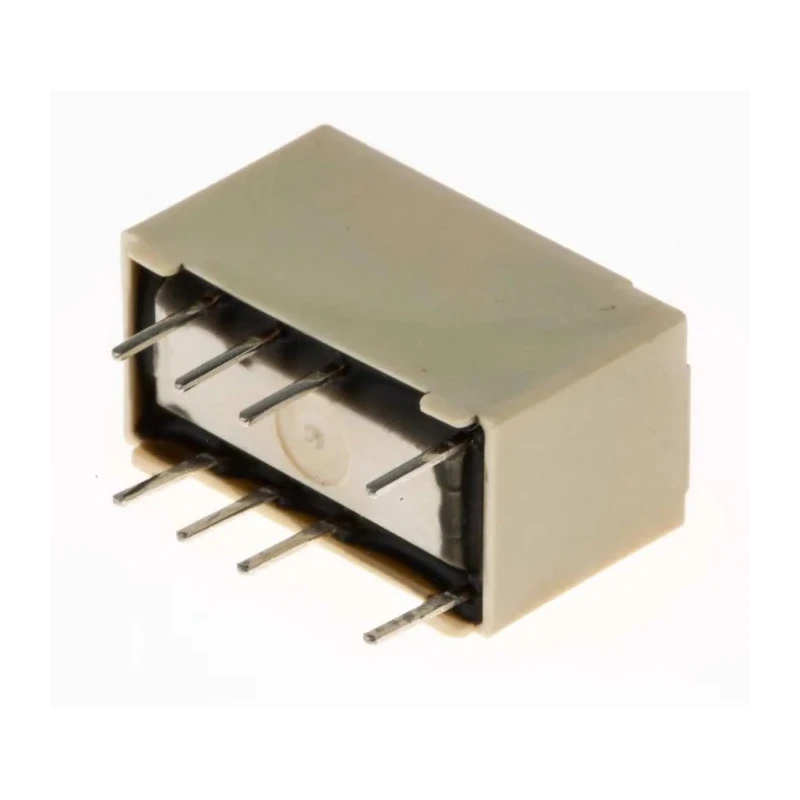

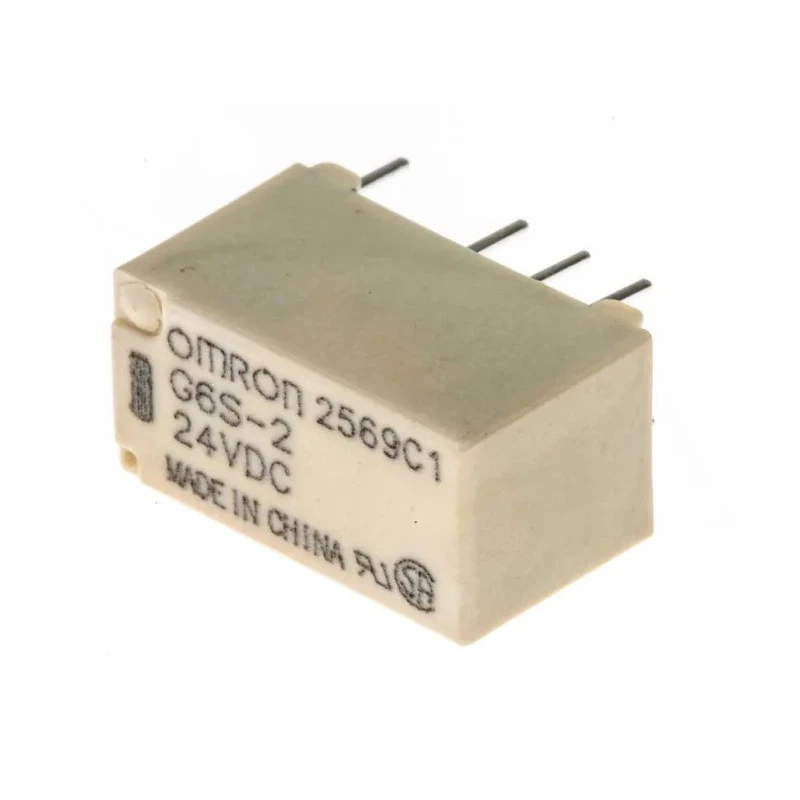

Omron PCB Signal Relay 24V DC Coil 2A DPDT Compact Surface Mount G6S-2 DC24
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 9.2mm |
| Length | 15mm |
| Model | G6S-2 DC24 |
| Width | 7.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HFD3 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | PCB Terminal |
| Coil Resistance | 2800Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 200mW |
| TE Connectivity PCB Signal Relay, 24V dc Coil, 2A, DPDTBrand | TE Connectivity |
Key Features
- Compact surface mount design with 15mm length, 7.5mm width, and 9.2mm height.
- Coil voltage rated at 24V DC with low power consumption of 200mW.
- Double pole double throw (DPDT) contact configuration rated for 2A switching current.
- Supports switching AC voltage up to 250V and DC voltage up to 220V.
- Contacts made of silver alloy for reliable electrical performance.
- Operating temperature range from -40°C to 85°C for durability in harsh conditions.
- PCB mount terminal type with long leads for secure soldering.
- Fully sealed construction with high dielectric and impulse voltage withstand capabilities.
Product Description
Omron G6S-2 DC24 is a PCB signal relay designed for reliable switching in automation and electrical control systems. It features a 24V DC coil and DPDT contact configuration, supporting switching currents up to 2A, with switching voltages rated to 250V AC and 220V DC. This model offers a compact size with dimensions of 15mm length, 7.5mm width, and 9.2mm height, making it suitable for surface mounting on printed circuit boards.
The relay coil has a resistance of 2800Ω and consumes only 200mW power, ensuring energy efficiency in operation. Contacts are manufactured from high-quality silver alloy to guarantee durability and excellent electrical conductivity. The device is fully sealed to protect against environmental factors and withstands high dielectric and impulse voltages for stable performance under demanding conditions.
Operating temperature ranges from -40°C to 85°C, allowing use in various industrial and commercial environments. The PCB terminal with long leads provides reliable soldering connections and mounting stability. The Omron G6S series is recognized for its high sensitivity and durability, with this model being part of the HFD3 series optimized for low coil power consumption.
This relay is widely used in industrial automation, signal conditioning, electrical distribution panels, HVAC controls, and manufacturing equipment where reliable signal switching and isolation are required. It complies with standard quality manufacturing processes, although no specific certifications are noted for this model.
Compact dimensions suitable for PCB mounting. High reliability with sealed construction and quality contacts. Energy-efficient coil design minimizing power consumption. Wide temperature operating range for diverse applications.
Supports both AC and DC switching voltages and currents. Explore more Signal Relays and electrical automation components at EnvMart for your industrial and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage rating for this model is 24V DC.
It can handle a maximum switching current of 2A.
The dimensions are 15mm in length, 7.5mm in width, and 9.2mm in height.
This relay uses a double pole double throw (DPDT) contact configuration.
The operating temperature range is from -40°C to 85°C.
The relay coil consumes 200mW of power.
It can switch AC voltage up to 250V and DC voltage up to 220V.
The contacts are made of silver alloy, ensuring reliable electrical performance.
This model supports PCB mounting with long leads for secure soldering.
Yes, it features a fully sealed construction to protect against environmental factors.
The coil resistance is 2800Ω.
It is commonly used in industrial automation, signal conditioning, electrical distribution panels, and HVAC controls.
