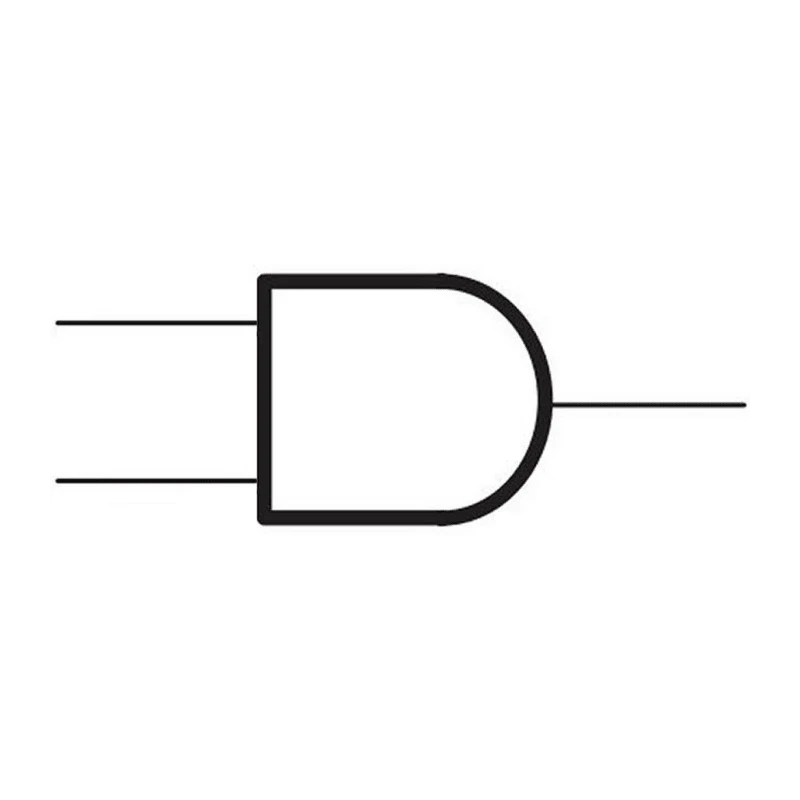

onsemi 4 2-Input AND Logic Gate 14-Pin SOIC, CMOS Logic Family, 4 Elements MM74HCT08MX

onsemi MM74HCT08MX is a 4 2-Input AND Logic Gate integrated circuit housed in a 14-Pin SOIC package designed for high-speed CMOS logic applications.

Featuring the 74HCT series high-speed CMOS technology, it operates at a supply voltage ranging from 4.5V to 5.5V, combining TTL input compatibility with CMOS output characteristics.

The device comprises 4 independent AND gates, each with 2 inputs, suitable for logic processing in electronic circuits that require precise logical AND operations. Its maximum propagation delay time at the specified loading conditions is 27 nanoseconds, enabling efficient timing in fast digital designs.

The product supports an operating temperature range from -40°C to 85°C, making it appropriate for a wide array of industrial, commercial, and consumer electronics applications. Surface mounting with the SOIC package allows flexible and compact PCB design, minimizing board space usage.

Contains 4 independent 2-input AND gates for digital logic operations. TTL-compatible inputs with CMOS output ensure broad system compatibility. High-speed operation with propagation delay of 27ns at CL. Wide operating temperature range for robust performance.

Surface mount SOIC package simplifies PCB assembly and reduces footprint. Logic family HCT with CMOS input type for reliable switching behavior. This IC is widely used in electronic devices, industrial control systems, laboratory automation, and embedded computing where rapid and reliable AND logic functions are required.
