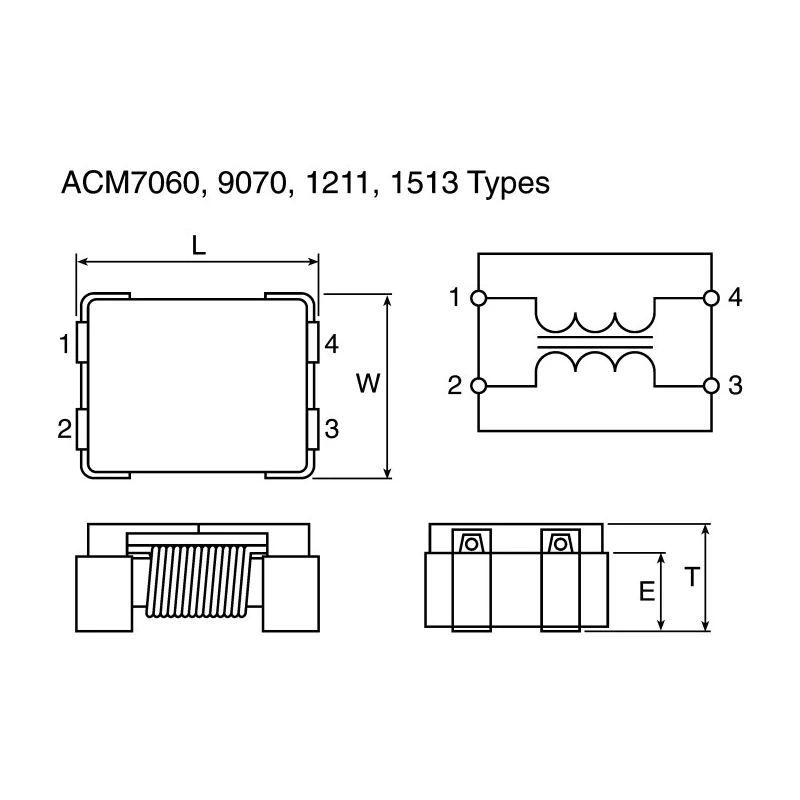

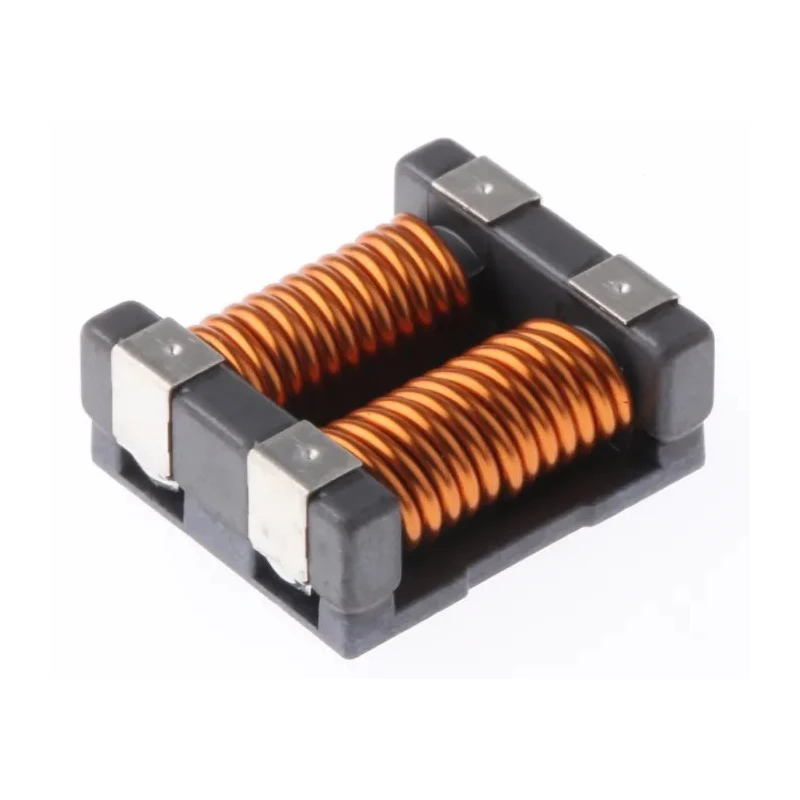

TDK Wirewound Surface Mount Inductor with Ferrite Core 1513 Package, 10 A Maximum DC Current ACM1513-551-2PL-TL
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 6mm |
| Length | 15mm |
| Model | ACM1513-551-2PL-TL |
| Depth | 6mm |
| Packaging | Taping |
| Series | ACM |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Interfaces | USB and IEEE1394 computer lines, LVDS panel link lines |
| Core Material | Ferrite |
| Standards/Approvals | RoHS |
| Package/Case | 1513 |
| Maximum DC Current | 10A |
| Pin Count | 4 |
| Maximum DC Resistance | 4mΩ |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
Key Features
- Provides common-mode noise suppression with high impedance at 100 MHz frequency.
- Constructed with a ferrite core and wirewound design ensuring performance stability.
- Suitable for USB, IEEE1394 computer lines, and LVDS panel link interfaces.
- Operates reliably within the temperature range of -25°C to 85°C.
- Low maximum DC resistance of 4 milliohms minimizes power loss.
- Complies with RoHS standards for environmental safety.
- Packaged in taping for efficient machine insertion during manufacturing.
Product Description
TDK ACM1513-551-2PL-TL is a high-quality wirewound surface mount inductor featuring a ferrite core designed for demanding electronic applications. It supports a maximum DC current of 10 A and exhibits a low DC resistance of 4 milliohms, ensuring minimal power loss during operation. Its compact 1513 package size with dimensions of 15 mm length, 6 mm height, and 6 mm depth makes it suitable for space-constrained PCB layouts.
This inductor is constructed with a ferrite core and wirewound technology, providing excellent common-mode noise suppression with impedance greater than 1000 ohms at 100 MHz. Its surface mount termination style and taping packaging facilitate automated insertion and soldering processes in modern electronics manufacturing.
Operating temperature ranges from -25°C up to +85°C, making it reliable for various industrial and consumer electronics environments. The inductor is ideal for use in USB and IEEE1394 computer lines as well as LVDS panel link lines, where common-mode noise reduction is critical for signal integrity.
Common-mode impedance exceeds 1000 ohms at 100 MHz frequency. Low differential mode impedance to avoid affecting high-speed signals. Compliant with RoHS environmental standards, ensuring restricted hazardous substances. Compact package size root in high-density circuit design compatibility.
Supports current up to 10 A DC with minimal losses. Temperature operating range suitable for industrial and commercial usage. Packaged in taping for manufacturing efficiency.
This TDK surface mount inductor is essential for engineers and designers working in electronic component domains needing robust, efficient inductors for noise suppression and reliable power handling. It is widely used in industrial electronics, computing, telecommunications, and consumer electronic applications.
Explore more Surface Mount Inductors and electronic components to find compatible parts for your design projects at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum DC current rating for this model is 10 A.
This inductor has dimensions of 15 mm in length, 6 mm in height, and 6 mm in depth.
It operates reliably within a temperature range of -25°C to 85°C.
The inductor is constructed with a ferrite core.
The maximum DC resistance is 4 milliohms, which helps minimize power loss during operation.
It is suitable for USB, IEEE1394 computer lines, and LVDS panel link interfaces.
It is packaged in taping, which facilitates efficient machine insertion during manufacturing.
The common-mode impedance exceeds 1000 ohms at a frequency of 100 MHz.
This inductor features a surface mount termination style.
Yes, it complies with RoHS standards for environmental safety.
The inductor utilizes a wirewound construction, ensuring performance stability.
This model belongs to the ACM series of inductors.
