Broadcom 1.9 V Red LED PLCC 2 Surface Mount High Brightness 100 mcd HSMC-A100-Q00J1

Free Delivery in India | Lowest Global Shipping Charges

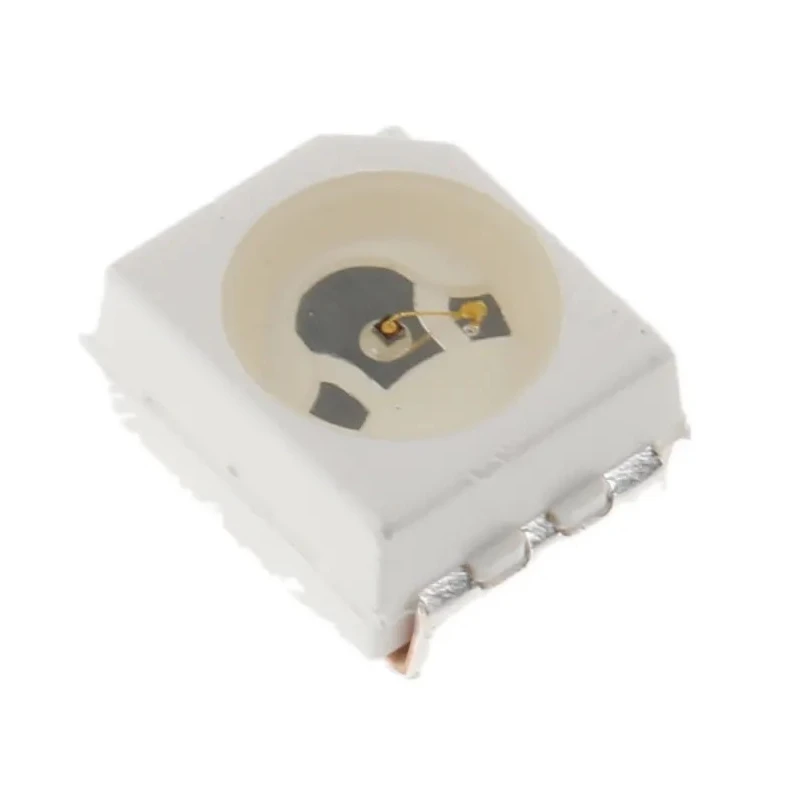

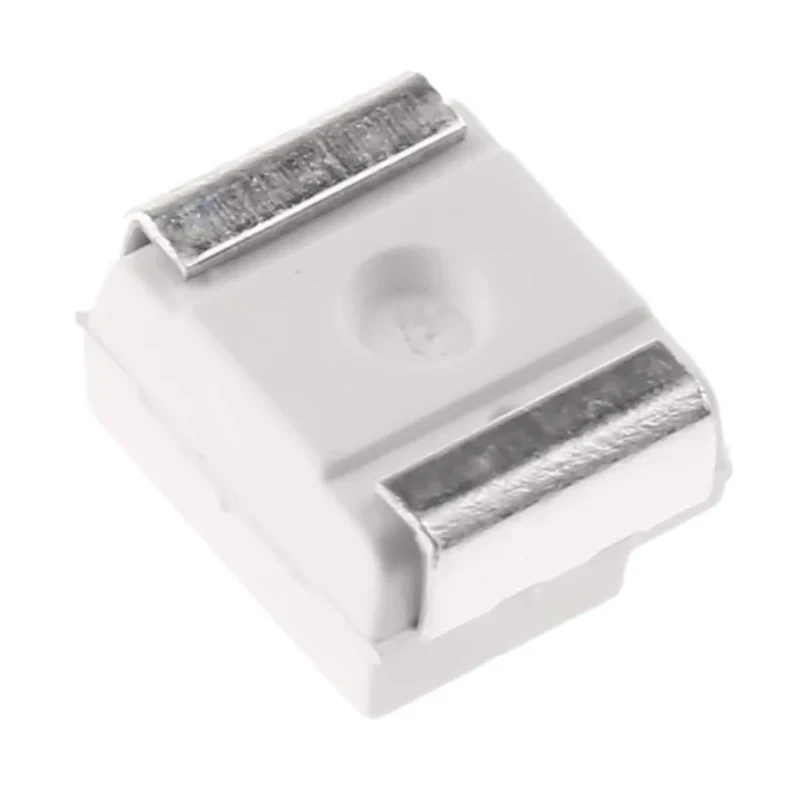

Broadcom 1.9 V Red LED PLCC 2 Surface Mount High Brightness 100 mcd HSMC-A100-Q00J1

Name: Broadcom 1.9 V Red LED PLCC 2 Surface Mount High Brightness 100 mcd HSMC-A100-Q00J1
Brand: Broadcom
SKU: 413186
Price: 0.21 USD
Availability: InStock



Category LED Brand Broadcom Condition New

Specifications

Country of Origin	India
Brand	Broadcom
Model	HSMC-A100-Q00J1
Packaging	Tape & Reel
Mount Type	Surface
Series	HSMx
Maximum forward current	30mA
Viewing angle	120 °
Package Type	PLCC 2
Standards/Approvals	RoHS
LED Colour	Red
Dominant Wavelength	626nm
Forward Voltage	1.9V
Number of Pins	2
LED Luminosity	100 mcd
Maximum Power Dissipation	63mW
Lens Dimensions	3.2 x 2.8 x 1.8 mm
Lens Shape	Round
Lens Finish	White

Key Features

Features a wide 120° viewing angle for optimal light distribution.
Operates at a maximum forward current of 30 mA with power dissipation of 63 mW.
Compact PLCC-2 package size of 3.2 x 2.8 x 1.8 mm ensures easy integration.
Surface mount type designed for high reliability in industrial and automotive interior use.
White lens finish with a clear round lens shape for efficient emission and light pipe coupling.
Suitable for interior signage and colored back-lighting applications.
RoHS compliant ensuring environmental safety.
Dominant wavelength of 626 nm produces bright red light output.

Product Description

Broadcom HSMC-A100-Q00J1 is a high brightness red LED designed for surface mount applications in electronic systems. Operating at a forward voltage of 1.9 V and supporting a maximum forward current of 30 mA, this LED delivers a luminous intensity of 100 mcd, making it ideal for visibility in various signal and display uses.

The device features an industry-standard PLCC-2 package with compact dimensions of 3.2 x 2.8 x 1.8 mm, ensuring efficient space utilization in circuit designs. The 120° wide viewing angle enhances illumination coverage, suitable for colored back-lighting, interior signage, and automotive interior applications.

The white lens finish and clear, round shape optimize light emission and facilitate easy integration with light pipes. This LED is engineered for rigorous environmental conditions, offering high reliability within the Avago HSMx-A10x series. Compliance with RoHS standards ensures adherence to environmental regulations.

This component is packaged in tape and reel form for efficient automated assembly in manufacturing processes. Its built-in reflector further increases the light output, making it well-suited as a pixel element for electronic signs and indicators.

Wide 120° viewing angle for extensive light spread. Maximum power dissipation of 63 mW supports steady performance under rated conditions. Compact PLCC-2 size enables use in dense electronic assemblies. Designed for surface mount technology for modern PCB assembly practices.

Robust construction suitable for automotive and industrial environments. Red LED with a dominant wavelength of 626 nm for vibrant color output. RoHS compliant, ensuring low environmental impact. Efficient light output enhanced by built-in reflector design.

This Broadcom LED is an excellent choice for industrial, automotive, commercial signage, and general electronic display applications. Explore more LEDs and electronic components on EnvMart for comprehensive industrial solutions.
