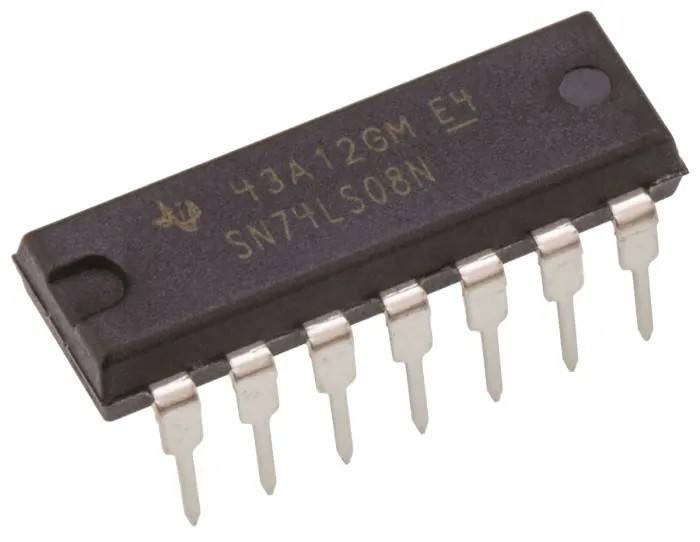

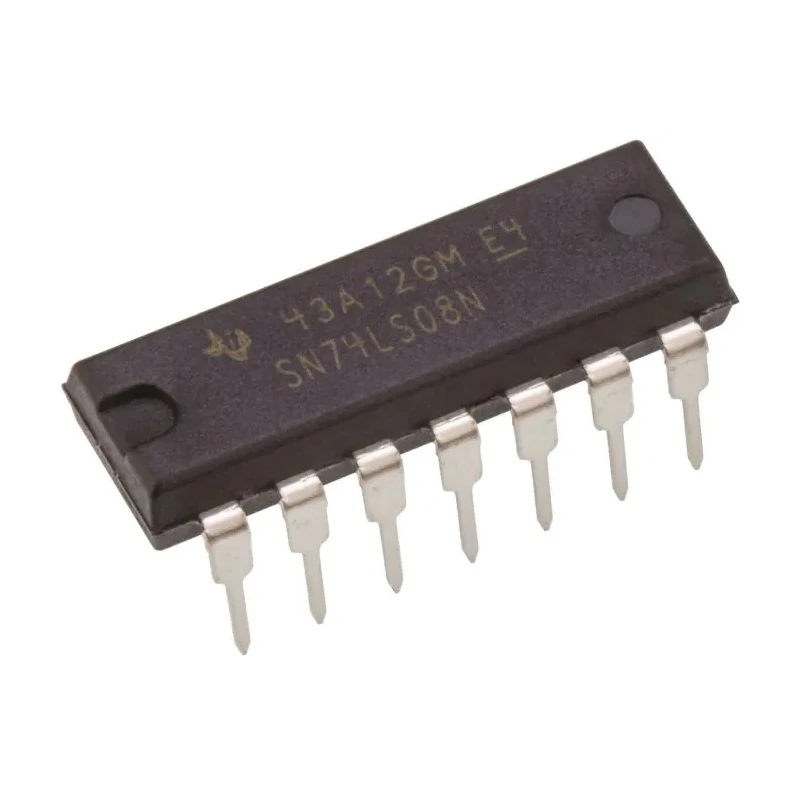

Texas Instruments 4 2-Input AND Logic Gate, 14-Pin PDIP SN74LS08N

The Texas Instruments SN74LS08N is a 4 2-input AND logic gate integrated circuit packaged in a 14-pin Plastic Dual Inline Package (PDIP) designed for through-hole mounting applications. It is part of the 74LS family of low-power Schottky logic ICs that combine bipolar junction transistor technology with Schottky diode clamps, which achieve higher operating speeds while reducing power consumption compared to traditional 74TTL series chips.

This logic gate IC contains four independent AND gates, each with two inputs, providing reliable digital logic operations essential in various electronic circuits. It supports a supply voltage range of 4.75 to 5.25 volts and operates efficiently within a temperature range of 0°C to 70°C, making it suitable for a wide range of industrial and electronic applications.

The SN74LS08N features a maximum propagation delay of 7.5 nanoseconds at a given capacitive load, enabling fast switching performance. It also provides output current capabilities of -0.4mA for the high-level state and 8mA for the low-level output, ensuring robust signal drive strength. The device package consists of 14 pins arranged in the PDIP package format which allows convenient installation on printed circuit boards with through-hole soldering.

This product is widely used in logic circuit designs, including digital computing, industrial control systems, automation, and embedded systems development. Although it follows industry-standard design principles and quality controls, it does not bear specific certifications or automotive standards.

The Texas Instruments SN74LS08N is a new product, manufactured in India, delivering consistent performance and durability expected from a trusted semiconductor brand. Environmentally, it complies with RoHS regulations, minimizing hazardous substances in electronic devices.

This IC contains four independent 2-input AND logic gates. Operates at a voltage range of 4.75 to 5.25 volts for stable logic levels. Maximum propagation delay time of 7.5 nanoseconds for high-speed performance. Supports a wide operating temperature range from 0 to 70 degrees Celsius.

Package type is 14-pin PDIP suitable for through-hole PCB mounting. Used in industrial, electronic components, and semiconductor applications. Designed with low power consumption utilizing Schottky diode technology. Browse more semiconductor Logic Gates and enhance your electronic circuit designs with reliable Texas Instruments components available on EnvMart.
