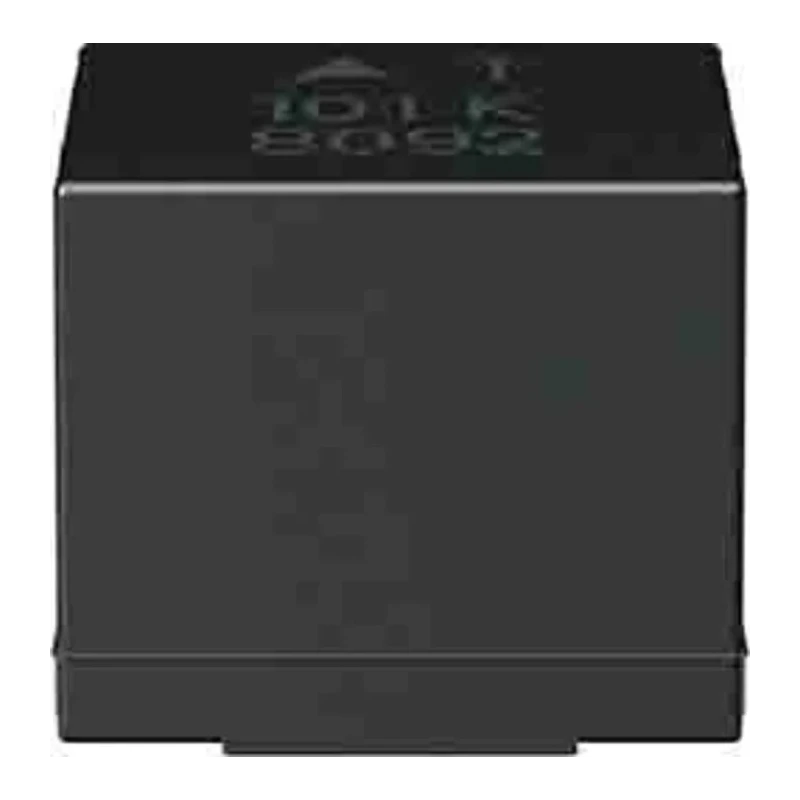

TDK SIMID 2220 Unshielded Wirewound Surface Mount Inductor with Ferrite Core 1.5 mH ±10% 130 mA Max DC B82442T1155K000

TDK B82442T1155K000 SIMID 2220 unshielded wirewound surface mount inductor with ferrite core featuring an inductance of 1.5 mH ±10% and maximum DC current capacity of 130 mA. This inductor is designed for filtering supply voltages, coupling, and decoupling in electronic circuits including DC to DC converters, switch-mode power supplies, automotive, telecommunications, consumer, and industrial electronics.

The wirewound construction with a ferrite drum core ensures stability and high performance in a compact 5.6 mm length, 5 mm height, and 5 mm depth 2220 package. It offers a minimum quality factor of 30 to guarantee efficient inductance behavior and operates reliably within a temperature spectrum of -55 °C to +150 °C.

This product is qualified to the automotive industry standard AEC-Q200 and meets RoHS and JEDEC J-STD 020D for lead-free reflow solder compatibility. It features a solder termination style and a moulded, flame-retardant design for enhanced durability and safety in harsh environments.

Electrical characteristics include a maximum DC resistance of 14.9 Ω and a maximum self-resonant frequency of 1.5 MHz. The inductor's unshielded nature and robust build make it suitable for a wide range of industrial and commercial applications including manufacturing, HVAC controls, telecommunications, automotive electronics, and power management systems.

Unshielded wirewound construction with a ferrite core ensures excellent inductive performance. Compact 2220 surface mount package with solder terminations suitable for automated assembly. Qualified to AEC-Q200 automotive standard for reliable operation in automotive electronics.

Wide temperature range (-55°C to 150°C) enables use in demanding environments. Lead-free reflow solder compatible as per JEDEC J-STD 020D standard. Flame-retardant moulded body enhances safety standards compliance. Maximum DC current rating of 130 mA with an inductance tolerance of ±10%.

High quality factor (Q=30) and self-resonant frequency of 1.5 MHz support efficient filtering and power regulation.

This TDK SIMID series surface mount inductor is manufactured in Hungary following stringent quality and safety standards. It is ideal for engineers and technicians seeking reliable and efficient inductors for industrial, automotive, telecommunications, and consumer electronics circuit designs. The product is widely used in laboratory setups, manufacturing assembly lines, and research and development applications.
