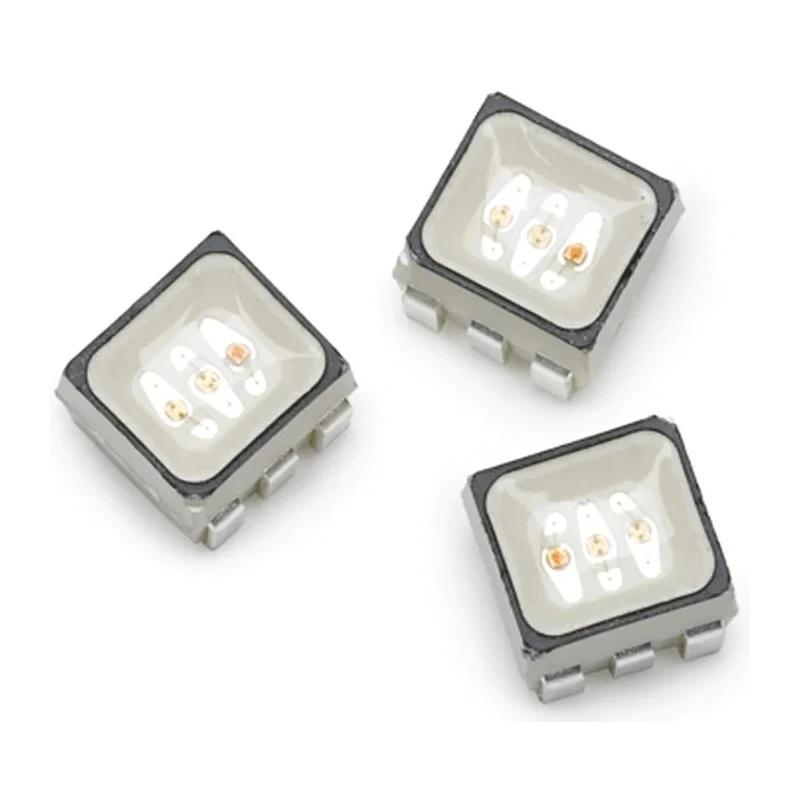

Broadcom 2.1 V RGB LED PLCC 6 Surface Mount 3-LED Multicolor Indicator ASMT-YTB7-0AA02
Specifications
| Country of Origin | China |
|---|---|
| Brand | Broadcom |
| Model | ASMT-YTB7-0AA02 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | ASMT |
| Number Of Leds | 3 |
| Maximum forward current | 50mA |
| Viewing angle | 120 ° |
| Package Type | PLCC 6 |
| Standards/Approvals | RoHS |
| LED Colour | RGB |
| Dominant Wavelength | 469, 529, 623nm |
| Forward Voltage | 2.1V |
| Number of Pins | 6 |
| LED Luminosity | 384 mcd, 650 mcd, 1900 mcd |
| Maximum Power Dissipation | 125mW |
| Lens Dimensions | 3 x 2.8 x 1.8 mm |
| Lens Shape | Square |
Key Features
- This LED features a PLCC 6 package designed for easy surface mount installation.
- Three LEDs (RGB) with individual 3-pin arrangements offer independent color control.
- Maximum forward current rating is 50 mA per LED, ensuring safe operation.
- Wide 120° viewing angle provides broad and uniform light distribution.
- Clear square lens delivers bright visual output with luminescence values up to 1900 mcd.
- Maximum power dissipation is limited to 125 mW to maintain thermal integrity.
- Supplied on tape and reel, enabling automated pick-and-place manufacturing processes.
- LEDs cover dominant wavelengths at 469 nm (blue), 529 nm (green), and 623 nm (red).
Product Description
Broadcom ASMT-YTB7-0AA02 is a high-quality RGB LED component designed for versatile electronic and lighting assemblies requiring multicolor indication and illumination. Operating at a forward voltage of 2.1 V and delivering colors through three independent LEDs (RGB), this device suits compact decorative lighting, status signaling, and prototyping environments.
The PLCC 6 surface mount package facilitates straightforward installation with a 120° viewing angle to emit wide, uniform illumination. Each LED chip is independently controlled via a three-pin configuration, providing flexible color mixing and efficient use.
Bright outputs ranging from 384 mcd to 1900 mcd support clear visual indicators in consumer electronics, microcontroller color-changing displays, and indicator panels. Thermal management is supported by a maximum power dissipation of 125 mW, preventing device overstress.
This LED series is delivered on tape and reel packaging, making it compatible with automated pick-and-place assembly lines, optimizing production efficiency. PLCC 6 package supports straightforward surface mounting. 120° viewing angle provides broad uniform coverage.
Three independent LEDs (RGB) allow individual color control. Maximum forward current of 50 mA per LED ensures operational safety. Clear square lens shape delivers high luminosity. Maximum power dissipation of 125 mW limits thermal load.
Delivered on tape & reel for automated manufacturing assembly. Dominant wavelengths at 469, 529, and 623 nm provide vivid RGB colors.
Applications include indicator panels requiring distinct RGB mixing, compact decorative lighting, status signaling in consumer electronics, and color-changing displays integrated with microcontrollers. This component complies with RoHS environmental standards and is manufactured in China.
Explore more high-performance LEDs and electronic components at EnvMart for industrial, laboratory, electronics, and manufacturing use cases.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current rating for each LED in this model is 50 mA, ensuring safe operation during use.
This LED features a wide viewing angle of 120°, providing broad and uniform light distribution.
The dominant wavelengths are 469 nm for blue, 529 nm for green, and 623 nm for red, enabling vivid RGB color output.
The maximum power dissipation for this LED is limited to 125 mW to maintain thermal integrity during operation.
It is supplied on tape and reel, which facilitates automated pick-and-place manufacturing processes.
This LED is housed in a PLCC 6 package, designed for easy surface mount installation.
The lens dimensions are 3 x 2.8 x 1.8 mm, providing a compact form factor for various applications.
This model features three independent LEDs, allowing for individual color control and mixing.
The forward voltage for this RGB LED is 2.1 V, which is necessary for its operation.
This component complies with RoHS environmental standards, ensuring it meets specific safety and environmental criteria.
Applications include indicator panels, compact decorative lighting, status signaling in consumer electronics, and color-changing displays.
The clear square lens shape delivers high luminosity, enhancing the visual output of the LED.
