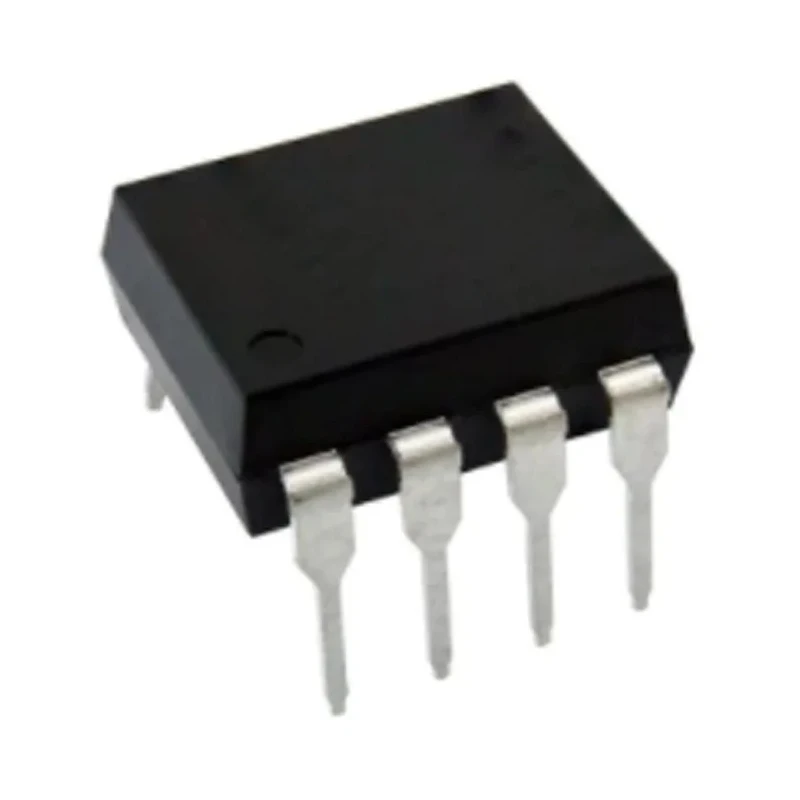

Broadcom AC Input Optocoupler Through Hole 8-Pin DIP HCPL-7720-000E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HCPL-7720-000E |
| Mount Type | Through Hole |
| Output type | Transistor |
| Series | HCPL |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 10μA |
| Number Of Channels | 1 |
| Standards/Approvals | UL 1577, CSA, IEC/EN/DIN EN 60747-5-5 |
| Number of Pins | 8 |
| Input Current Type | AC |
| Typical Rise Time | 9ns |
| Typical Fall Time | 8ns |
Key Features
- Designed with AC input current type for versatile application.
- Features transistor output with one channel for efficient switching.
- Package type is standard 8-pin DIP suitable for through-hole mounting.
- Provides high isolation voltage of 3.75 kVrms ensuring safety in electrical circuits.
- Operating temperature range from -40°C to 85°C for robust performance.
- Meets UL 1577, CSA, and IEC/EN/DIN EN 60747-5-5 standards for quality and safety.
- Typical rise and fall times are 9ns and 8ns respectively for fast switching capabilities.
- Maximum input current is only 10μA minimizing power consumption.
Product Description
Broadcom HCPL-7720-000E AC Input Optocoupler is a high-speed optocoupler designed for electrical signal isolation with a reliable 8-pin DIP through-hole package. It features a transistor output type and can be mounted through holes, making it suitable for various electronic component applications.
It operates with an AC input current type, ensuring compatibility with alternating current signals typically found in industrial and electronic systems. The optocoupler delivers high insulation performance with an isolation voltage rated at 3.75 kVrms, providing enhanced safety and protection against electrical noise and surges.
Designed to operate reliably across a wide temperature range from -40°C to 85°C, this component meets stringent industrial standards including UL 1577, CSA, and IEC/EN/DIN EN 60747-5-5. The typical rise and fall times of 9ns and 8ns respectively allow for rapid switching, making it ideal for high-speed CMOS logic gating applications.
Its low maximum input current of 10μA reduces power consumption while maintaining stable and efficient operation. This single channel optocoupler is part of the HCPL series known for consistent performance in industrial automation, manufacturing electronics, and control systems.
AC input current type for wide application suitability. 8-pin DIP package for through-hole mounting convenience. High isolation voltage of 3.75 kVrms enhances operational safety. Wide operating temperature range from -40°C to 85°C ensures durability.
Complies with UL, CSA, and IEC standards for quality assurance. Fast switching with typical rise/fall times of 9ns and 8ns. Low maximum input current minimizes power requirements. Transistor output type compatible with high speed CMOS logic gates.
Single channel design for simple and effective circuit integration.
This Broadcom optocoupler is widely used in industrial electronics, telecommunications, signal processing, and other applications requiring safe and efficient electrical isolation. Explore more high-quality Optocouplers and electronic components in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 85°C.
It provides a high isolation voltage of 3.75 kVrms, ensuring safety in electrical circuits.
This model features a transistor output type, which is suitable for various electronic applications.
The optocoupler operates with an AC input current type, making it compatible with alternating current signals.
The typical rise time is 9ns and the fall time is 8ns, allowing for fast switching capabilities.
It is designed with a single channel for efficient circuit integration.
This model is designed for through-hole mounting, using a standard 8-pin DIP package.
It meets UL 1577, CSA, and IEC/EN/DIN EN 60747-5-5 standards for quality and safety.
The maximum input current is only 10μA, which helps minimize power consumption.
The operating temperature range is from -40°C to 85°C, ensuring robust performance in various conditions.
It is widely used in industrial electronics, telecommunications, and signal processing, requiring safe electrical isolation.
The package type is DIP, specifically designed for through-hole mounting.
